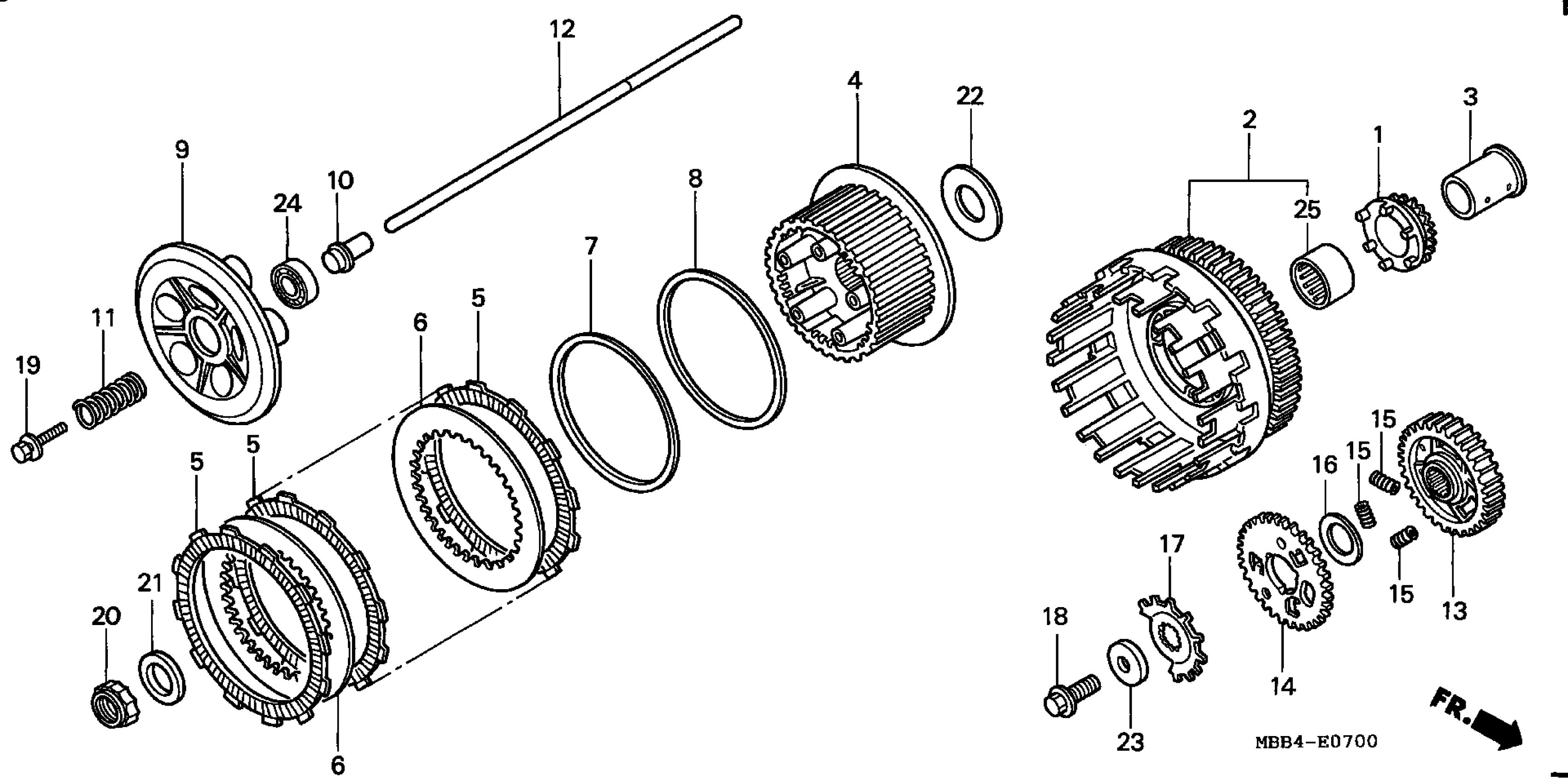

Honda VTR1000FAC (05) MOTORCYCLE, JPN, VIN# JH2SC361-5M700001 CLUTCH Diagram

#

Description
Price

1

SPROCKET, OIL PUMP DRIVE (25T)

15131-MAS-003

$62.23

2

CLUTCH (OUTER)

22100-MBB-000

Unavailable

3

GUIDE, CLUTCH (OUTER)

22116-MBT-F20

$22.70

4

CENTER, CLUTCH

22120-MBB-000

Unavailable

5

DISK, CLUTCH FRICTION

22201-MBB-000

$21.19

6

PLATE, CLUTCH

22321-GHB-811

$12.02

6

PLATE, CLUTCH This part replaces 22321-MT3-000.

22321-GHB-811

$12.02

7

SPRING, CLUTCH PLATE

22325-MN4-000

$10.43

8

SEAT, JUDDER SPRING

22326-MBB-000

Unavailable

9

PLATE, CLUTCH PRESSURE

22350-MBB-000

Unavailable

10

PIECE, CLUTCH JOINT

22366-MS2-611

$17.03

11

SPRING, CLUTCH

22401-MBB-000

$6.23

12

ROD, CLUTCH LIFTER

22850-MBB-D40

Unavailable

13

GEAR, PRIMARY DRIVE (44T)

23103-MBT-F20

$165.44

14

SUB-GEAR, PRIMARY (44T)

23104-MBT-F20

$63.49

15

SPRING, PRIMARY DAMPER

23115-MW4-000

$2.31

17

ROTOR, PULSE GENERATOR

30291-MBB-010

$10.90

18

BOLT, FLANGE (12X30)

90005-MN5-000

$8.41

19

BOLT-WASHER (6X32)

90022-MBT-000

$2.23

20

NUT, LOCK (25MM)

90231-MS2-610

$18.78

21

WASHER (25.1X37X5)

90401-MBB-000

$3.97

22

WASHER, THRUST (28.2X56X2)

90401-MS2-610

$15.87

23

WASHER (12.5X36X6)

90402-MBB-000

$4.03

24

BEARING, RADIAL BALL (16003)

91009-MAS-003

$22.70

25

BEARING, NEEDLE (35X42X23)

91026-MV9-671

$89.90
