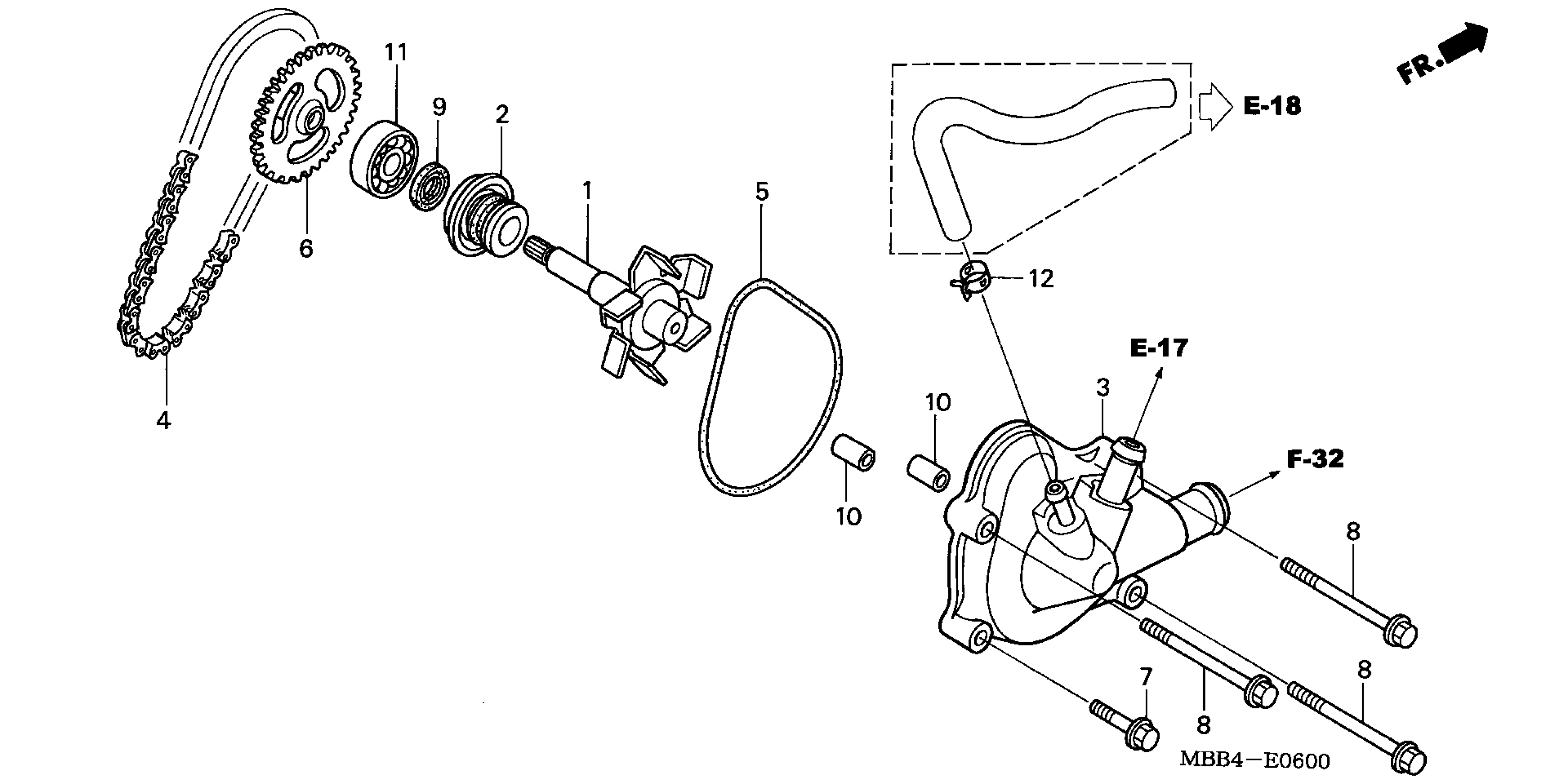

Honda VTR1000FA (05) MOTORCYCLE, JPN, VIN# JH2SC360-5M700001 WATER PUMP Diagram

#

Description

Price

1

IMPELLER, WATER PUMP

19210-MBB-000

$75.05

2

SEAL, MECHANICAL

19217-MAL-300

$53.03

3

COVER, WATER PUMP

19220-MBT-000

Unavailable

4

CHAIN, WATER PUMP DRIVE (48L)

19225-MBB-003

$31.84

5

GASKET, WATER PUMP COVER

19226-MBB-000

$6.12

6

SPROCKET, WATER PUMP DRIVEN (31T)

19230-MBB-000

$71.02

7

BOLT, FLANGE (6X28) (NSHF)

90007-GHB-680

$1.84

8

BOLT, FLANGE (6X65) (NSHF)

90007-GHB-760

$2.34

9

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

9

OIL SEAL (12X22X5)

91201-965-000

$4.06

10

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

11

BEARING, RADIAL BALL (6200)

96100-62003-00

$12.72

12

CLAMP, TUBE (D12) (FRAME NO.)

91405-PD1-004

$9.24
