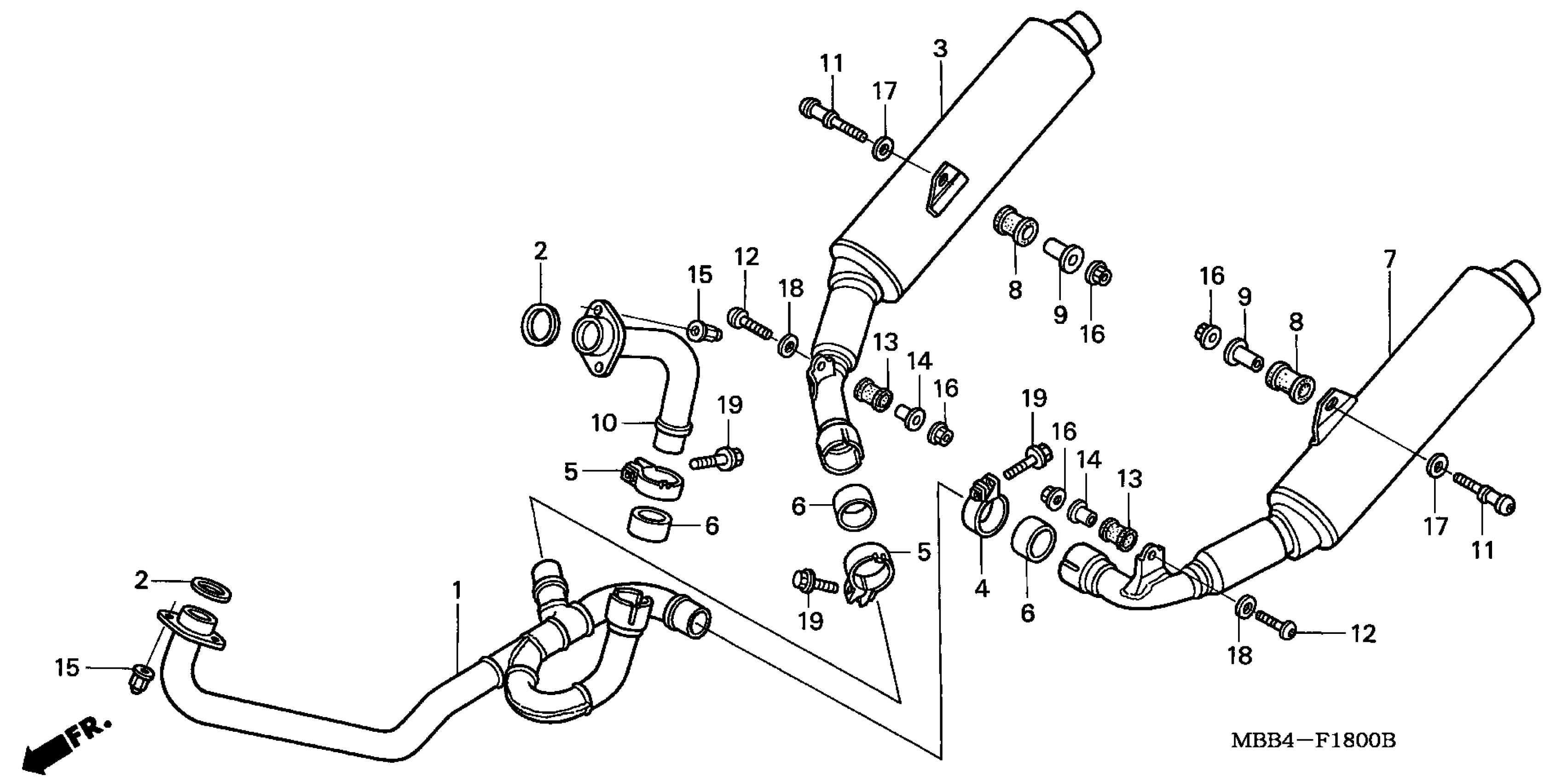

Honda VTR1000FA (05) MOTORCYCLE, JPN, VIN# JH2SC360-5M700001 MUFFLER Diagram

PIPE, EX.

18150-MBB-D41

Unavailable

GASKET, EX. PIPE

18291-MM8-880

$7.16

MUFFLER, R. EX.

18300-MBB-003

Unavailable

BAND, R. RR. MUFFLER (L. SIDE)

18375-413-000

$40.08

BAND, L. RR. MUFFLER (R. SIDE)

18376-413-000

$36.70

GASKET, RR. MUFFLER

18392-MG7-750

$13.66

MUFFLER, L.

18400-MBB-003

Unavailable

RUBBER, MUFFLER MOUNTING

18421-MA6-000

$7.04

COLLAR, MUFFLER MOUNTING

18422-MA6-000

$7.91

PIPE, RR. EX.

18430-MBB-D41

$100.69

BOLT, HOOK (8X47)

90116-MAT-000

$6.80

BOLT, SOCKET (8X32) This part replaces 96600-08032-00.

96600-08032-10

$2.07

BOLT, SOCKET (8X32)

96600-08032-10

$2.07

CUSHION, EX. PIPE MOUNTING

90201-MBB-000

$3.08

COLLAR (8X18)

90202-MBB-000

$5.07

NUT, FLANGE (7MM)

90304-MM5-000

$4.94

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

WASHER, PLAIN (8MM)

94103-08000

$1.49

BOLT, FLANGE (8X35)

90103-KCM-620

$1.57
