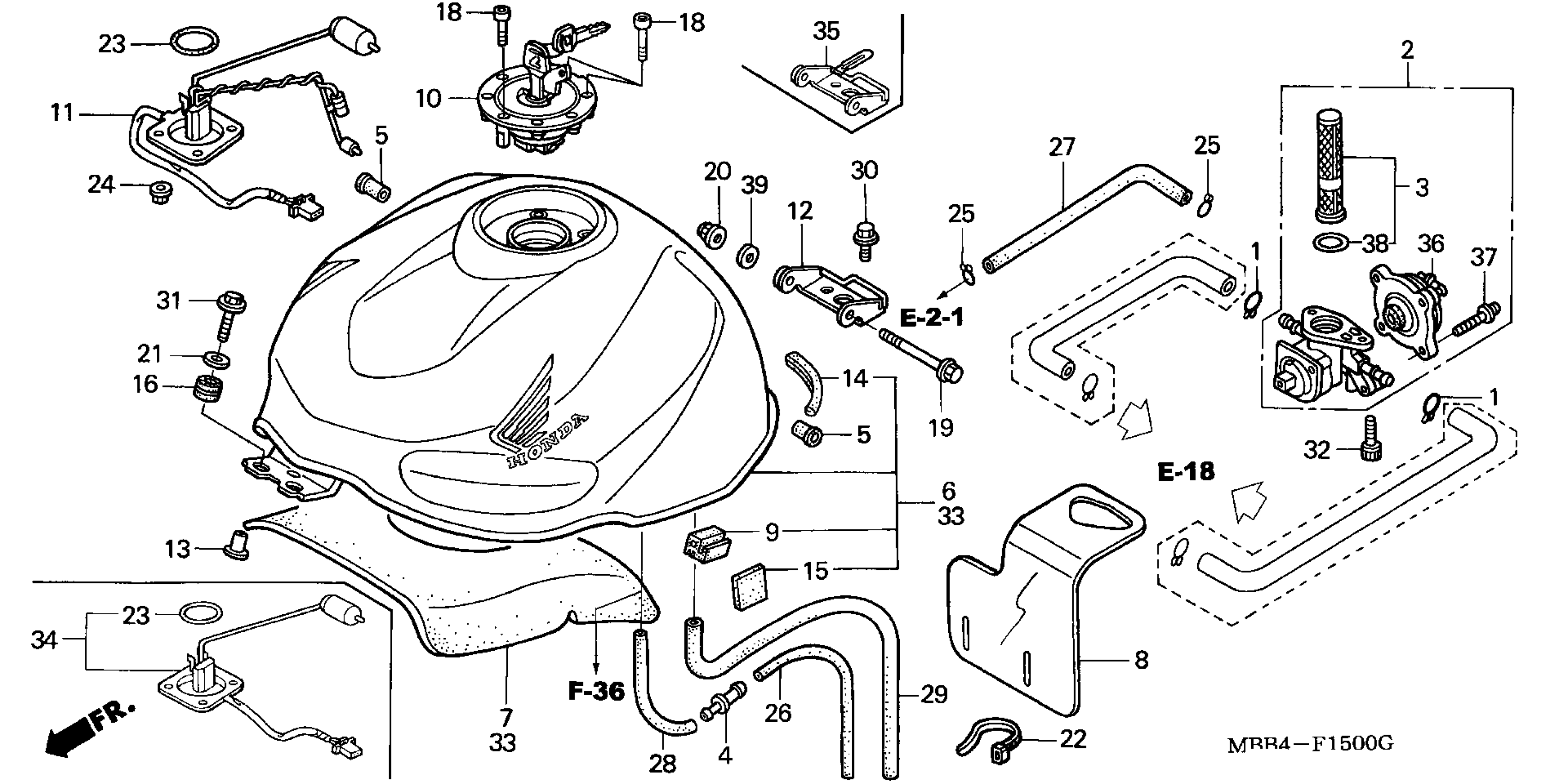

Honda VTR1000FA (05) MOTORCYCLE, JPN, VIN# JH2SC360-5M700001 FUEL TANK Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15771-551-000

$9.44

2

PETCOCK ASSY. This part replaces 16950-MBB-640.

16950-MBB-642

$256.39

2

PETCOCK ASSY. This part replaces 16950-MBB-641.

16950-MBB-642

$256.39

2

PETCOCK ASSY.

16950-MBB-642

$256.39

3

SCREEN SET, FUEL STRAINER

16952-MBB-003

$36.80

4

JOINT, TUBE

19126-KM1-010

$3.90

5

CUSHION, FUEL TANK PIVOT

17506-MB1-000

$4.40

7

MAT, FUEL TANK MUFFLER

17542-MBB-300

Unavailable

8

RUBBER, TANK (LOWER)

17545-MBB-000

Unavailable

9

CUSHION, FUEL TANK

17611-ML7-000

$8.53

10

CAP, FUEL FILLER This part replaces 17620-MAS-E02.

17620-MAS-E04

$202.36

10

CAP, FUEL FILLER This part replaces 17620-MAS-E03.

17620-MAS-E04

$202.36

10

CAP, FUEL FILLER

17620-MAS-E04

$202.36

13

COLLAR, SETTING

61104-422-000

$6.91

14

RUBBER, PROTECTOR

64122-MBB-300

$4.69

15

RUBBER, PROTECTOR

81214-MW0-300

$5.19

16

RUBBER, TAILLIGHT MOUNTING

84703-425-000

$4.72

18

BOLT, SOCKET (4X21)

90074-MT4-000

$3.04

19

BOLT, TANK HINGE

90135-MS2-000

$6.22

20

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

21

WASHER, PLAIN (6MM)

90525-428-900

$1.92

22

BAND, WIRE

90650-KW3-000

$4.48

23

O-RING (39.5X5)

91305-MC7-000

$3.31

24

NUT, FLANGE (6MM)

94050-06080

$1.49

25

CLIP, TUBE (B7) CLIP, TUBE (B6.5)

95002-02070

$1.80

26

TUBE, BREATHER

17532-MBB-D40

$12.80

27

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

28

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

29

BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M)

95005-80001-20M

$23.91

30

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

31

BOLT, FLANGE (6X28)

96001-06028-07

$1.51

32

BOLT, SOCKET (6X14)

96600-06014-00

$4.07

33

TANK SET, FUEL (TYPE1) (WL)

17520-MBB-A60ZA

Unavailable

34

FUEL UNIT SET

37080-MBB-A20

Unavailable

35

STAY, FUEL TANK PIVOT

50197-MBB-D40

$10.20

36

COVER SET, PETCOCK This part replaces 16953-ML0-014.

16953-ML0-034

$51.36

36

COVER SET, PETCOCK This part replaces 16953-ML0-024.

16953-ML0-034

$51.36

36

COVER SET, PETCOCK

16953-ML0-034

$51.36

37

SCREW-WASHER (4X16)

93892-04016-08

$1.49

37

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$1.49

38

O-RING (1.9X20.6)

16075-GHB-870

$4.55

38

O-RING (1.9X20.6) This part replaces 16079-NC5-004.

16075-GHB-870

$4.55

39

WASHER, PLAIN (6MM)

94103-06000

$1.49
