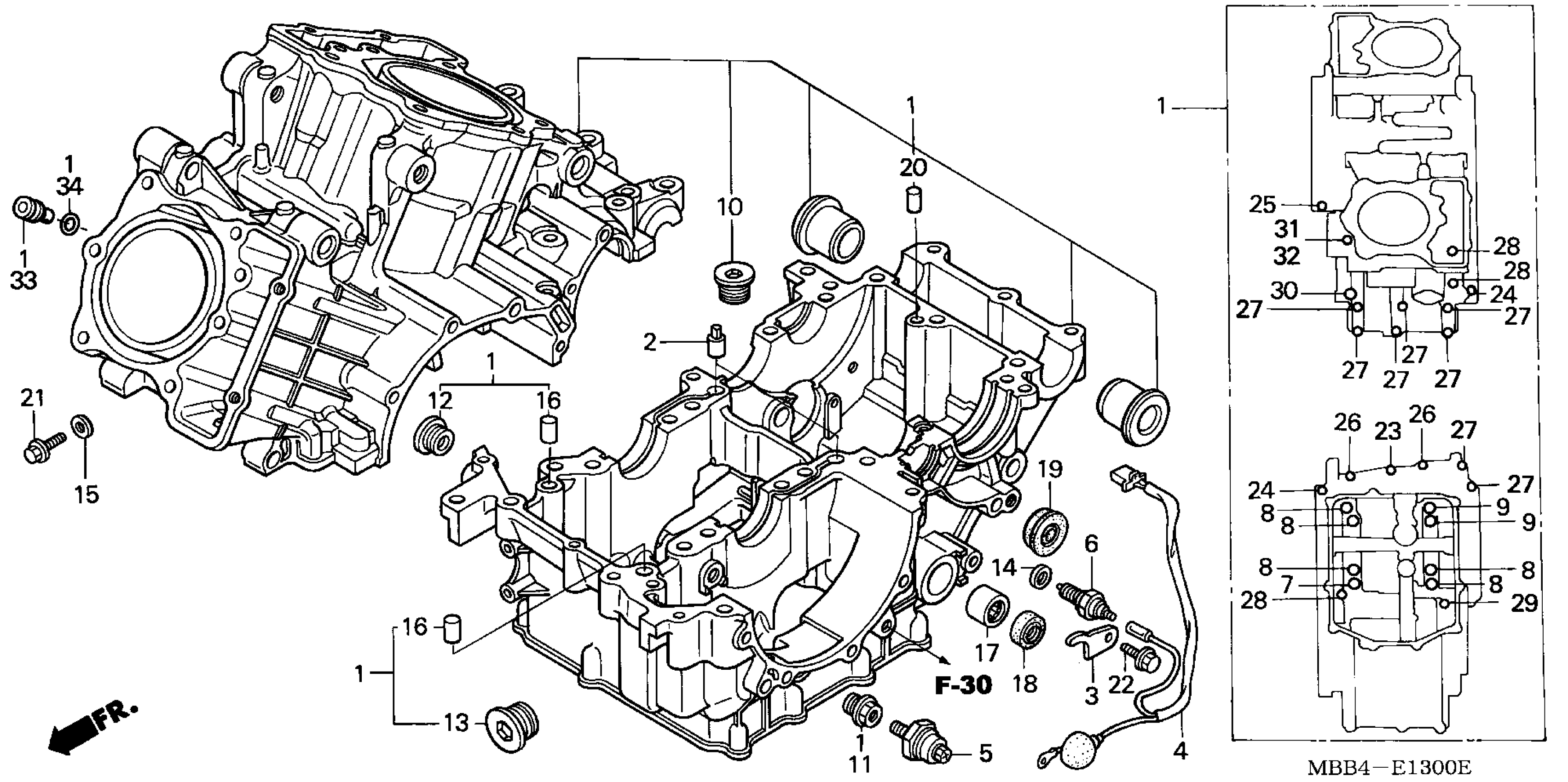

Honda VTR1000FA (05) MOTORCYCLE, JPN, VIN# JH2SC360-5M700001 CRANKCASE Diagram

CRANKCASE SET

11000-MBB-305

$1,845.46

ORIFICE (1.2MM)

11104-MW0-000

$19.30

PLATE, SPINDLE

24612-MAL-600

$9.75

SUB-WIRE, ENGINE

32111-MBB-000

Unavailable

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

SWITCH ASSY., NEUTRAL (TOYO)

35600-KE8-003

$18.90

BOLT-WASHER (10X80)

90001-MBB-003

$7.85

BOLT-WASHER (10X105)

90007-MAT-000

$10.79

BOLT-WASHER (10X105) This part replaces 90007-MBB-003.

90007-MAT-000

$10.79

BOLT-WASHER (10X115) (Honda Code 5365176)

90009-MBB-003

$8.49

BOLT, SEALING (18MM)

90031-MBB-000

$11.41

BOLT, SEALING (18MM)

90048-MY5-600

$13.82

BOLT, SEALING (22MM) This part replaces 90081-ZV5-010.

90081-ZZ5-M01

$4.93

BOLT, SEALING (24MM)

90083-PL9-000

$11.80

WASHER, NEUTRAL

90443-MJ6-000

$1.92

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

PIN, DOWEL (10X16) (Honda Code 3906971)

90701-MV9-670

$4.30

BEARING, NEEDLE (14X22X16)

91106-KM1-013

$19.13

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.81

OIL SEAL (8X25X7) (ARAI)

91204-MG8-003

$4.33

PIN B, DOWEL (8X14)

94302-08140

$2.25

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

BOLT, FLANGE (6X45) BOLT, FLANGE (6X60)

95701-06045-07

$2.06

BOLT, FLANGE (6X65) (Honda Code 2552545)

95701-06065-00

$1.51

BOLT, FLANGE (8X40)

95701-08040-00

$1.49

BOLT, FLANGE (8X50)

95701-08050-00

$2.28

BOLT, FLANGE (8X70)

95701-08070-00

$2.67

BOLT, FLANGE (8X80)

95701-08080-00

$1.64

BOLT, FLANGE (10X85)

95701-10085-00

$2.67

WASHER, SEALING (8MM)

90442-028-000

$1.77

BOLT, FLANGE (8X75)

95701-08075-00

$2.67

COLLAR, SPECIAL

11106-MBT-F40

$5.52

O-RING (7.5X1.5)

91302-HB3-004

$2.18
