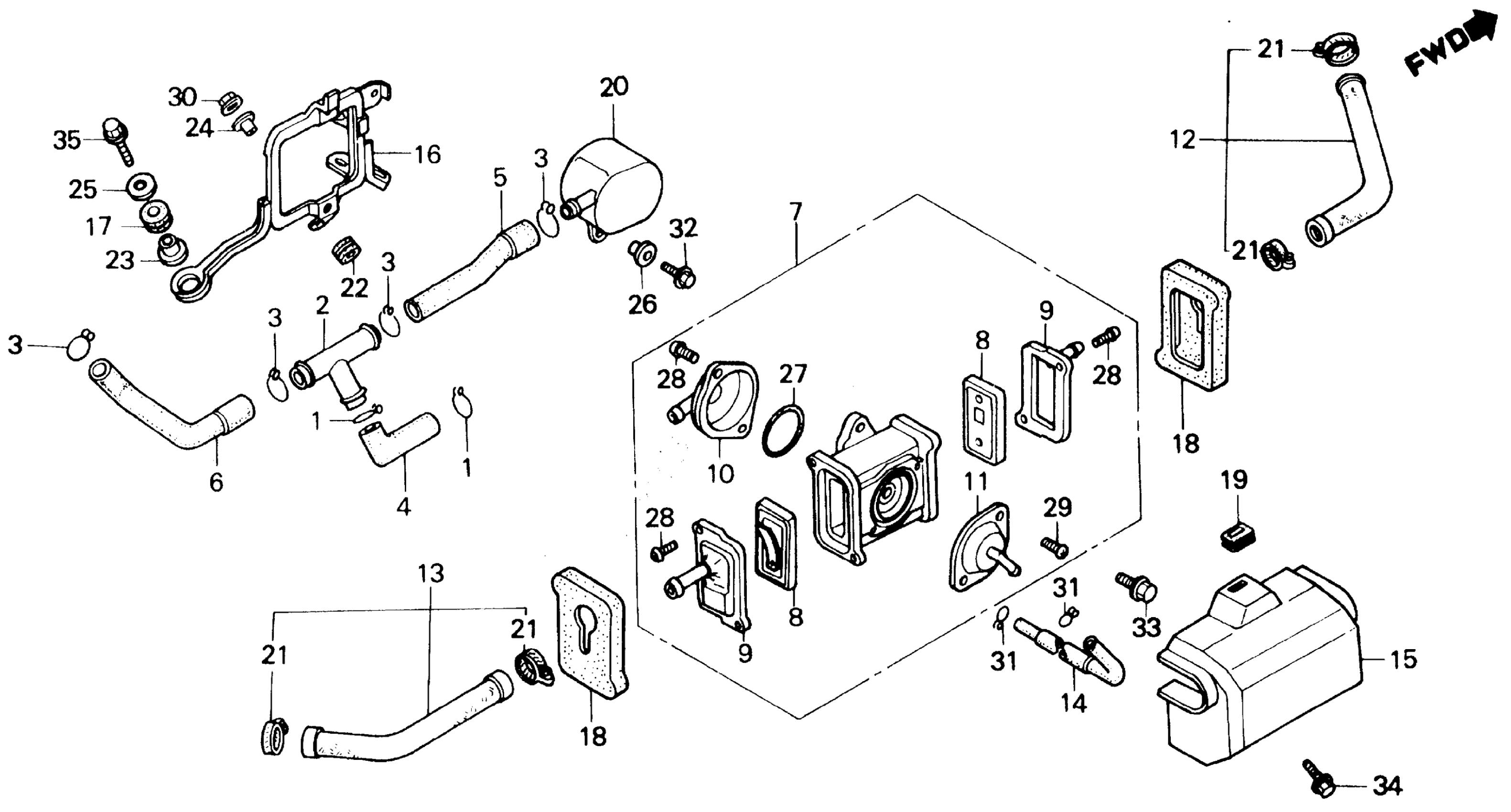

Honda VT800CAC (88) SHADOW 800, USA, VIN# 1HFRC321-JA000001 AIR SUCTION VALVE Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15771-551-000

$9.44

2

JOINT, BREATHER (THREE-WAY)

15772-HA7-670

$17.84

3

CLIP, BREATHER TUBE

17316-611-000

$9.23

4

TUBE A, DRAIN

17366-428-670

$8.39

5

TUBE (N) (NOT AVAILABLE)

17474-MK7-710

Unavailable

6

TUBE (P) (NOT AVAILABLE)

17476-MK7-710

Unavailable

7

VALVE ASSY., AIR SUCTION (NOT AVAILABLE)

18600-MK7-711

Unavailable

8

VALVE, REED This part replaces 18601-MG9-005.

18601-MJ1-791

$22.10

9

COVER, REED VALVE

18612-MF5-861

Unavailable

10

COVER, AIR SUCTION VALVE

18613-MF5-861

Unavailable

11

COVER, DIAPHRAGM

18614-MK7-711

Unavailable

12

TUBE ASSY., FR. AIR (NOT AVAILABLE)

18615-MK7-713

Unavailable

13

TUBE ASSY., RR. AIR

18616-MK7-711

Unavailable

14

TUBE, PB (NOT AVAILABLE)

18622-MK7-711

Unavailable

15

COVER, AIR SUCTION VALVE

18625-MR6-710

Unavailable

16

BRACKET, AIR SUCTION VALVE

18626-MK7-710

Unavailable

17

RUBBER, AIR SUCTION VALVE SETTING

18628-MF5-860

$4.92

18

PROTECTOR, AIR SUCTION VALVE

18629-MF5-860

Unavailable

19

RUBBER, AIR SUCTION COVER (NOT AVAILABLE)

18629-MK7-710

Unavailable

20

TANK, AIR IN. CONTROL VALVE CHAMBER

18652-MK3-780

Unavailable

21

CLAMP, WATER HOSE (A)

19505-KS6-700

$11.06

21

CLAMP A, WATER HOSE This part replaces 19507-KA4-700.

19505-KS6-700

$11.06

22

RUBBER, TAILLIGHT SETTING

50451-GB6-920

$2.92

23

COLLAR, FUEL TANK SETTING

61104-943-000

Unavailable

24

COLLAR, COVER SETTING

83601-357-000

$5.56

25

WASHER, PLAIN (9MM)

90503-SA0-000

$4.93

26

COLLAR, GEARSHIFT LEVER SETTING This part replaces 90522-MF5-000.

90522-170-700

$1.84

27

O-RING (35X1.9)

91301-MF5-861

Unavailable

28

SCREW, PAN (4X10)

93500-04010-0H

$1.49

29

SCREW, PAN (5X6)

93500-05006-0H

$1.49

30

NUT, FLANGE (6MM)

94050-06000

$1.49

31

CLIP, TUBE (B7)

95002-02070

$1.80

32

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

33

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

34

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

35

BOLT, FLANGE (6X25)

96001-06025-00

$2.00
