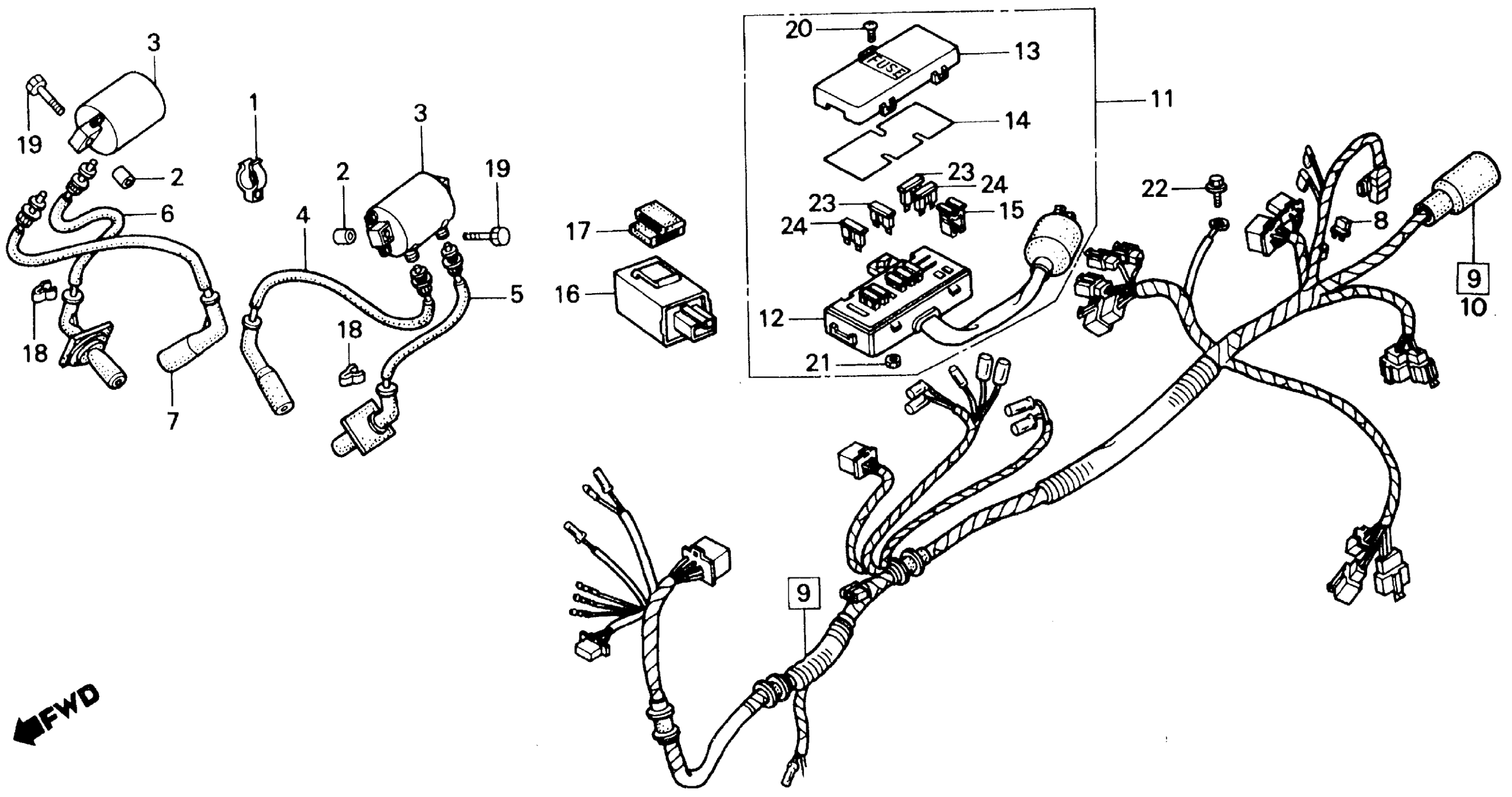

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 WIRE HARNESS Diagram

#

Description
Price

1

CLIP, WATER HOSE

19523-MK7-000

Unavailable

2

COLLAR, IGNITION COIL

30505-MK7-000

Unavailable

3

COIL, IGNITION

30510-ME9-013

$170.87

4

CAP ASSY. 1, IGNITION (NOT AVAILABLE)

30751-MR6-000

Unavailable

5

CAP ASSY. 2, IGNITION (NOT AVAILABLE)

30752-MR6-000

Unavailable

6

CAP ASSY. 3, IGNITION (NOT AVAILABLE)

30753-MR6-000

Unavailable

7

CAP ASSY. 4, IGNITION (NOT AVAILABLE)

30754-MR6-000

Unavailable

8

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

8

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

9

WIRE HARNESS

32100-MR6-000

Unavailable

10

COVER, WIRE HARNESS CONNECTOR

32108-046-750

$3.87

11

BOX ASSY., FUSE (NOT AVAILABLE)

38200-MR6-000

Unavailable

12

BOX ASSY., FUSE This part replaces 38201-MK3-015.

38200-MK3-505

Unavailable

13

COVER, FUSE

38202-MK3-015

Unavailable

14

LABEL, FUSE This part replaces 38215-MK3-671.

38215-MR1-670

Unavailable

14

LABEL, FUSE

38215-MR1-670

Unavailable

15

PULLER, FUSE (DAIICHI)

38235-SA5-004

Unavailable

16

RELAY, TURN SIGNAL (MITSUBA)

38301-KK9-952

$67.94

17

SUSPENSION, TURN SIGNAL RELAY

38306-GE7-000

$4.74

18

CLAMP, SPEEDOMETER SENSOR WIRE

61108-MB0-000

Unavailable

19

BOLT, HEX. (6X45) This part replaces 92000-06045-4J.

92101-06045-4J

Unavailable

19

BOLT, HEX. (6X45)

92101-06045-4J

Unavailable

20

SCREW, PAN (4X10)

93500-04010-0H

$1.49

20

SCREW, PAN (4X10) This part replaces 93500-04010-1H.

93500-04010-0H

$1.49

21

NUT, HEX. (4MM)

94001-04000-0S

$1.49

22

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

22

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

23

FUSE, BLADE (10A)

98200-31000

$1.49

24

FUSE, BLADE (15A)

98200-31500

$1.49
