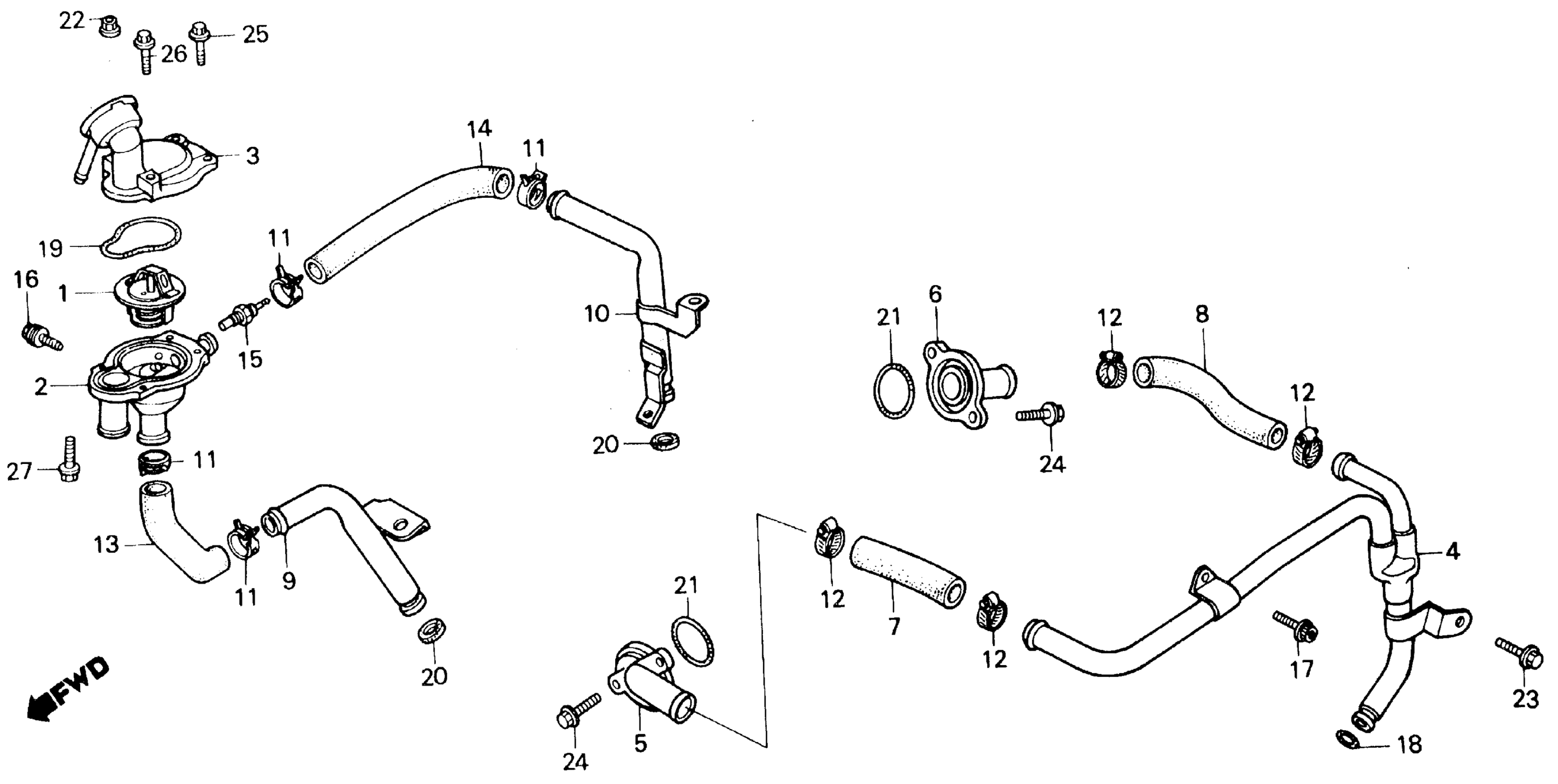

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 WATER PIPE Diagram

#

Description
Price

1

THERMOSTAT

19300-MB0-003

$47.39

2

CASE, THERMOSTAT

19311-MK7-671

Unavailable

3

NECK, FILLER

19318-MK7-671

Unavailable

4

PIPE, INLET WATER This part replaces 19501-MG8-000.

19501-MM8-790

Unavailable

4

PIPE, INLET WATER This part replaces 19501-MM8-000.

19501-MM8-790

Unavailable

4

PIPE, INLET WATER

19501-MM8-790

Unavailable

5

JOINT A, WATER HOSE

19503-MG8-000

Unavailable

6

JOINT B, WATER HOSE

19504-MG8-000

Unavailable

7

HOSE A, IN. WATER

19505-MG8-000

Unavailable

8

HOSE B, IN. WATER (NOT AVAILABLE)

19506-MG8-000

Unavailable

9

PIPE, FR. OUTLET WATER (NOT AVAILABLE)

19511-MK7-770

Unavailable

10

PIPE, RR. OUTLET WATER (NOT AVAILABLE)

19512-MK7-770

Unavailable

11

CLIP B, HOSE

19514-ME9-003

$3.90

12

CLAMP B, WATER HOSE

19517-MB6-000

Unavailable

13

HOSE A, WATER OUTLET (NOT AVAILABLE)

19521-MK7-670

Unavailable

14

HOSE B, WATER OUTLET (NOT AVAILABLE)

19522-MK7-671

Unavailable

15

SENDING UNIT, WATER TEMPERATURE (DENSO)

37750-PC1-004

$73.04

16

BOLT, SPECIAL (8MM)

90042-ME9-000

Unavailable

17

BOLT, FLANGE SOCKET (6X16)

90071-MG8-000

$2.54

18

O-RING (18.3X2.3) (ARAI)

91301-147-023

$2.00

19

O-RING

91307-MK7-671

Unavailable

20

SEAL, WATER PIPE (ARAI)

91315-ME9-003

$4.20

20

SEAL, WATER PIPE This part replaces 91315-ME9-004.

91315-ME9-003

$4.20

21

O-RING

91356-169-003

$2.80

22

NUT, FLANGE (6MM)

94050-06080

$0.59

23

BOLT, FLANGE (6X16)

95701-06016-00

$1.48

24

BOLT, FLANGE (6X20)

95701-06020-00

$1.61

25

BOLT, FLANGE (6X22)

96001-06022-07

$1.68

26

BOLT, FLANGE (6X28)

96001-06028-07

$1.38

27

BOLT, FLANGE (6X35)

96001-06035-07

$1.97
