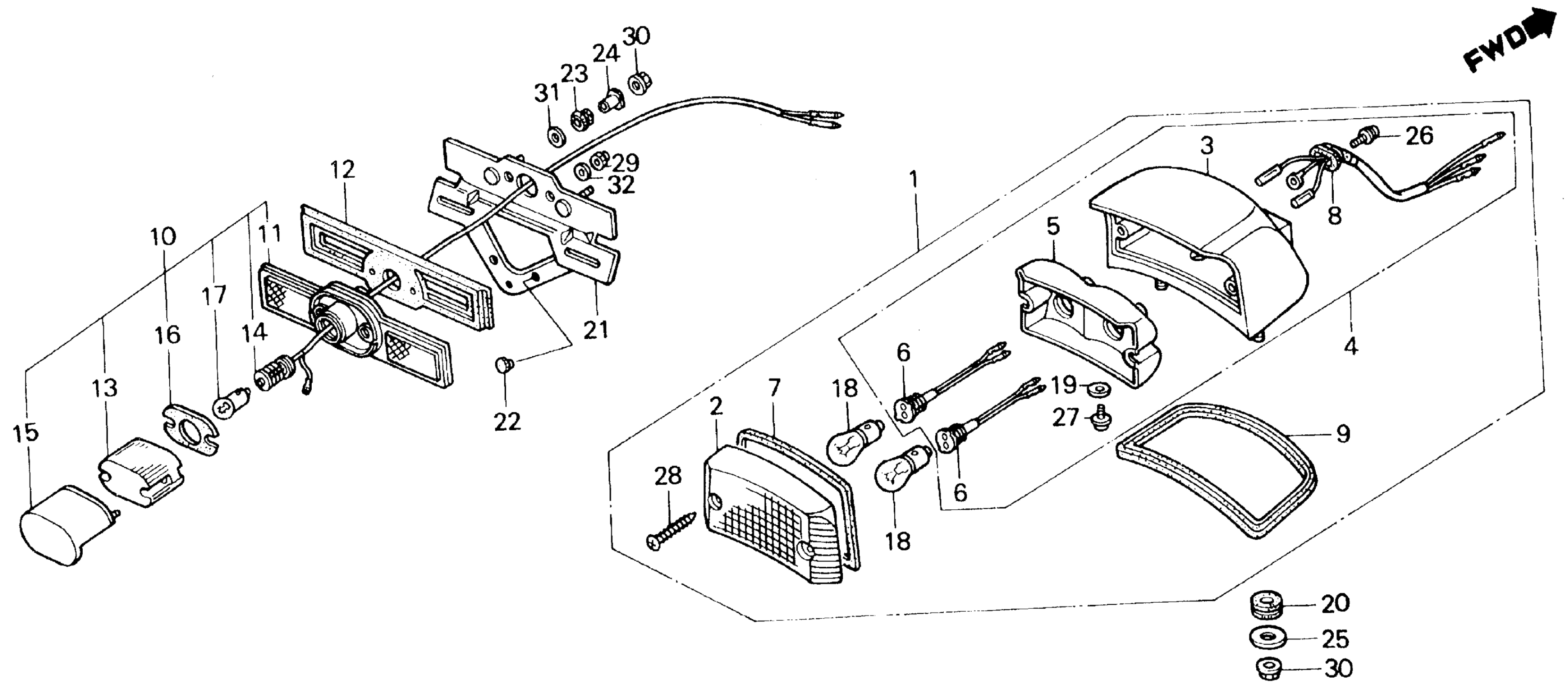

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT (12V 32/2CP) (NOT AVAILABLE)

33701-MK7-771

Unavailable

2

LENS, TAILLIGHT (NOT AVAILABLE)

33702-MM2-003

Unavailable

3

BASE, TAILLIGHT (NOT AVAILABLE)

33703-MM2-003

Unavailable

4

BASE, TAILLIGHT (NOT AVAILABLE)

33704-MK7-771

Unavailable

5

REFLECTOR, TAILLIGHT (NOT AVAILABLE)

33705-MM2-671

Unavailable

6

WIRE, TAILLIGHT (NOT AVAILABLE)

33706-MM2-003

Unavailable

7

GASKET, TAILLIGHT LENS

33709-KR3-671

$4.74

8

SUB-WIRE, TAILLIGHT (NOT AVAILABLE)

33711-MK7-771

Unavailable

9

GASKET, TAILLIGHT

33717-KR3-671

$15.34

10

LIGHT ASSY., LICENSE

33720-MF5-670

Unavailable

10

LIGHT ASSY., LICENSE This part replaces 33720-MK7-671.

33720-MF5-670

Unavailable

11

BASE

33721-MB1-671

$90.46

12

GASKET, LICENSE LIGHT

33721-ME9-000

Unavailable

13

LENS, LICENSE

33722-MB1-013

$19.68

14

WIRE, LICENSE

33725-MK7-671

Unavailable

15

COVER, LICENSE

33727-ME9-003

Unavailable

16

GASKET, LENS

33729-MB1-003

$6.30

17

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.92

17

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.92

17

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.92

17

BULB (12V8W4CP) (67) (STANLEY)

34909-505-003

$2.92

17

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.92

18

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$4.15

19

WASHER, PLAIN (5.5MM)

37314-061-810

Unavailable

20

RUBBER, HEADLIGHT CASE SETTING

61304-415-000

$3.47

21

BRACKET, NUMBER PLATE

84701-MR6-670

Unavailable

22

RUBBER, NUMBER PLATE BRACKET CUSHION

84702-MF2-670

$4.57

23

RUBBER, LICENSE LIGHT BRACKET

84705-ML5-610

Unavailable

24

COLLAR, LICENSE LIGHT BRACKET (NOT AVAILABLE)

84706-ML5-610

Unavailable

25

WASHER, WHEEL (6MM)

90563-355-000

$3.13

25

WASHER, WHEEL (6MM) This part replaces 91414-634-000.

90563-355-000

$3.13

26

SCREW-WASHER (4X10)

93892-04010-00

$1.49

26

SCREW-WASHER (4X10) This part replaces 93892-04010-10.

93892-04010-00

$1.49

27

SCREW-WASHER (5X14)

93892-05014-00

Unavailable

27

SCREW-WASHER (5X14) This part replaces 93892-05014-10.

93892-05014-00

Unavailable

28

SCREW, TAPPING (4X30)

93901-34780

$1.49

29

NUT, CAP (4MM)

94021-04020-0S

Unavailable

30

NUT, FLANGE (6MM)

94050-06080

$1.49

31

WASHER, PLAIN (14MM)

94102-14700

$1.49

32

WASHER, PLAIN (4MM)

94103-04000

$1.49
