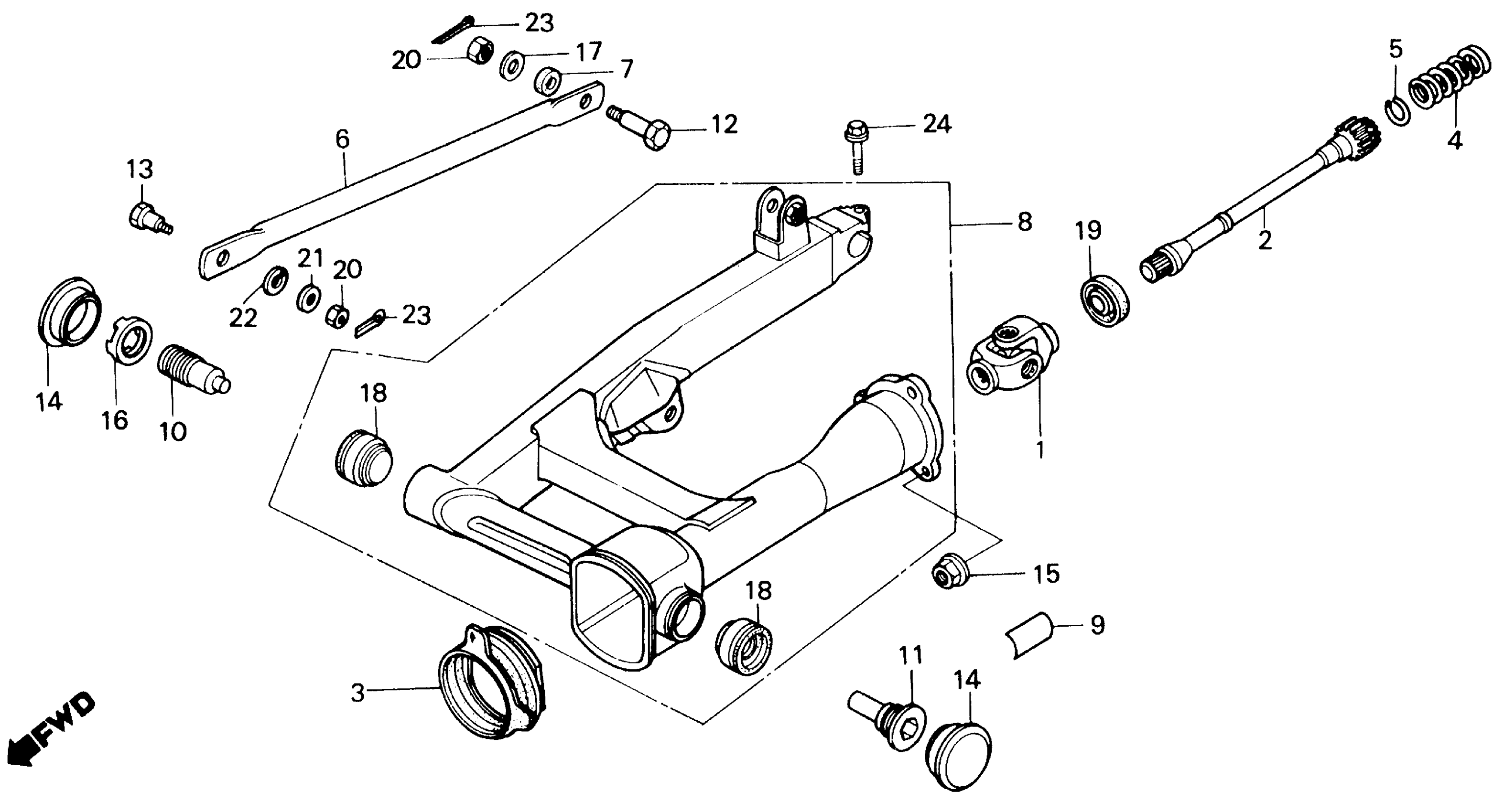

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 SWINGARM Diagram

#

Description
Price

1

JOINT, YOKE

40200-MR6-671

$332.43

2

SHAFT, PROPELLER

40201-MK7-003

Unavailable

3

BOOT, JOINT

40207-ME9-000

Unavailable

4

SPRING, PROPELLER SHAFT

40215-ME9-003

$5.90

5

RING, STOPPER

40221-MB0-000

$4.53

6

ARM, RR. BRAKE STOPPER

43431-MK7-000

Unavailable

7

RUBBER, STOPPER ARM

43434-ME1-670

$3.47

8

SWINGARM ASSY., RR. *NH1* (BLACK)

52100-MR6-670ZA

Unavailable

9

MARK, TIRE CAUTION

87505-MR6-671

Unavailable

10

BOLT, R. SWINGARM PIVOT

90121-MK7-770

$46.38

11

BOLT, L. SWINGARM PIVOT

90124-MK7-770

$26.16

12

BOLT, RR. BRAKE STOPPER

90127-393-000

$4.85

13

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

14

CAP, R. LOCK NUT

90302-ME5-000

$19.37

15

NUT, HEX. (10MM)

90308-ME5-000

Unavailable

16

NUT, LOCK (23MM)

90354-MK7-770

Unavailable

17

WASHER A, HANDLE HOLDER SETTING This part replaces 90505-425-000.

90524-030-000

$1.49

17

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

18

BEARING, TAPER ROLLER (30202) (NOT AVAILABLE) This part replaces 91066-MR6-671.

91066-MR6-672

Unavailable

18

BEARING, TAPER ROLLER (30202)

91066-MR6-672

Unavailable

19

OIL SEAL (27X43X7)

91261-ME9-005

$12.13

20

NUT, HEX. (8MM)

94001-08000-0S

$1.49

21

WASHER, PLAIN (8MM)

94101-08000

$1.49

22

WASHER, SPRING (8MM)

94111-10000

$1.49

23

PIN, COTTER (2.0X15)

94201-20150

$1.49

24

BOLT, FLANGE (8X32) This part replaces 95700-08032-00.

95701-08032-00

$1.49

24

BOLT, FLANGE (8X32)

95701-08032-00

$1.49
