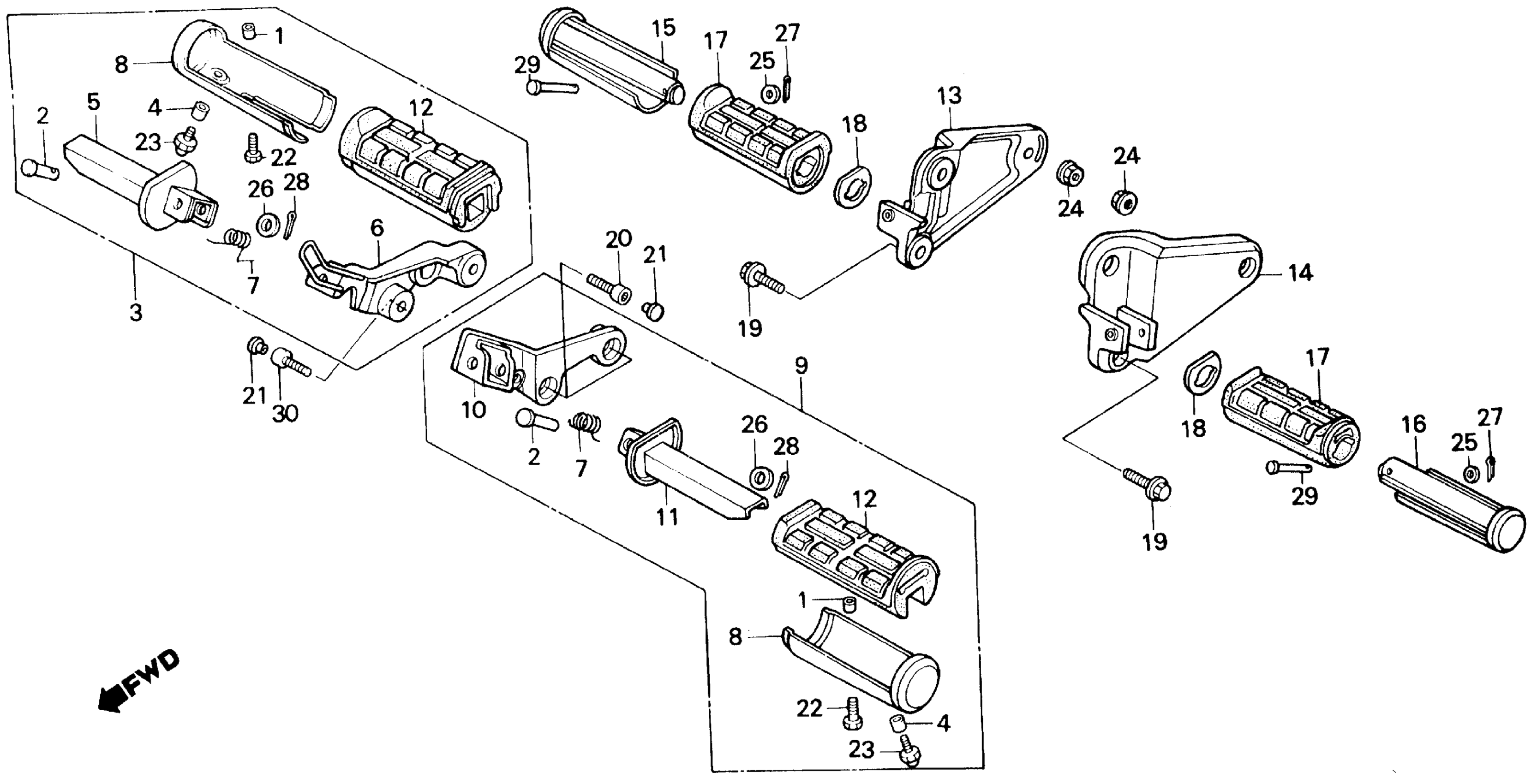

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 STEP Diagram

#

Description
Price

1

COLLAR, CHAIN CASE

40515-413-000

$2.92

2

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

2

PIN, STEP BAR JOINT

50603-033-010

$3.30

3

STEP ASSY., R. MAIN (NOT AVAILABLE)

50610-MR6-670

Unavailable

4

COLLAR

50611-MK7-000

Unavailable

5

BAR, R. STEP (COO) This part replaces 50612-MK7-010.

50612-MFR-305

$16.18

6

BRACKET, R. STEP

50615-MR6-670

Unavailable

7

SPRING, STEP RETURN

50617-195-000

Unavailable

8

STOPPER, STEP RUBBER

50619-MK7-010

$14.06

8

STOPPER, STEP RUBBER

50619-MM2-770

Unavailable

9

STEP ASSY., L. MAIN (NOT AVAILABLE)

50620-MR6-670

Unavailable

10

BRACKET, L. STEP

50625-MR6-670

Unavailable

11

BAR, L. STEP (COO) This part replaces 50642-MK7-010.

50642-MFR-305

$16.18

11

BAR, L. STEP (COO) This part replaces 50642-MM8-000.

50642-MFR-305

$16.18

12

RUBBER, MAIN STEP (COO) This part replaces 50661-MK7-000.

50661-MFR-305

$9.19

13

HOLDER, R. PILLION STEP

50680-MR6-670

Unavailable

14

HOLDER, L. PILLION STEP

50690-MR6-670

Unavailable

15

BAR, R. PILLION STEP

50711-MK7-000

$29.11

16

BAR, L. PILLION STEP

50712-MK7-000

Unavailable

17

RUBBER, PILLION STEP

50713-MK7-000

Unavailable

18

WASHER, PILLION STEP

50714-MK7-000

$5.05

19

BOLT, FLANGE (8X25) This part replaces 90111-MG2-000.

95701-08025-02

$2.17

19

BOLT, FLANGE (8X25)

95701-08025-02

$2.17

20

BOLT, SOCKET (8X22)

90142-ME5-000

Unavailable

21

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.77

22

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

23

BOLT, CAP (8X20) This part replaces 92500-08020-0B.

92501-08020-0B

$4.43

23

BOLT, CAP (8X20)

92501-08020-0B

$4.43

24

NUT, FLANGE (8MM)

94050-08080

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49

26

WASHER, PLAIN (8MM)

94101-08000

$1.49

27

PIN, COTTER (1.6X10)

94201-16100

$1.49

28

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

28

PIN, COTTER (1.6X25)

94201-16250

$1.49

29

PIN C, PILLION FOOTPEG

95015-83000

$2.41

30

BOLT, SOCKET (8X20)

96700-08020-08

Unavailable
