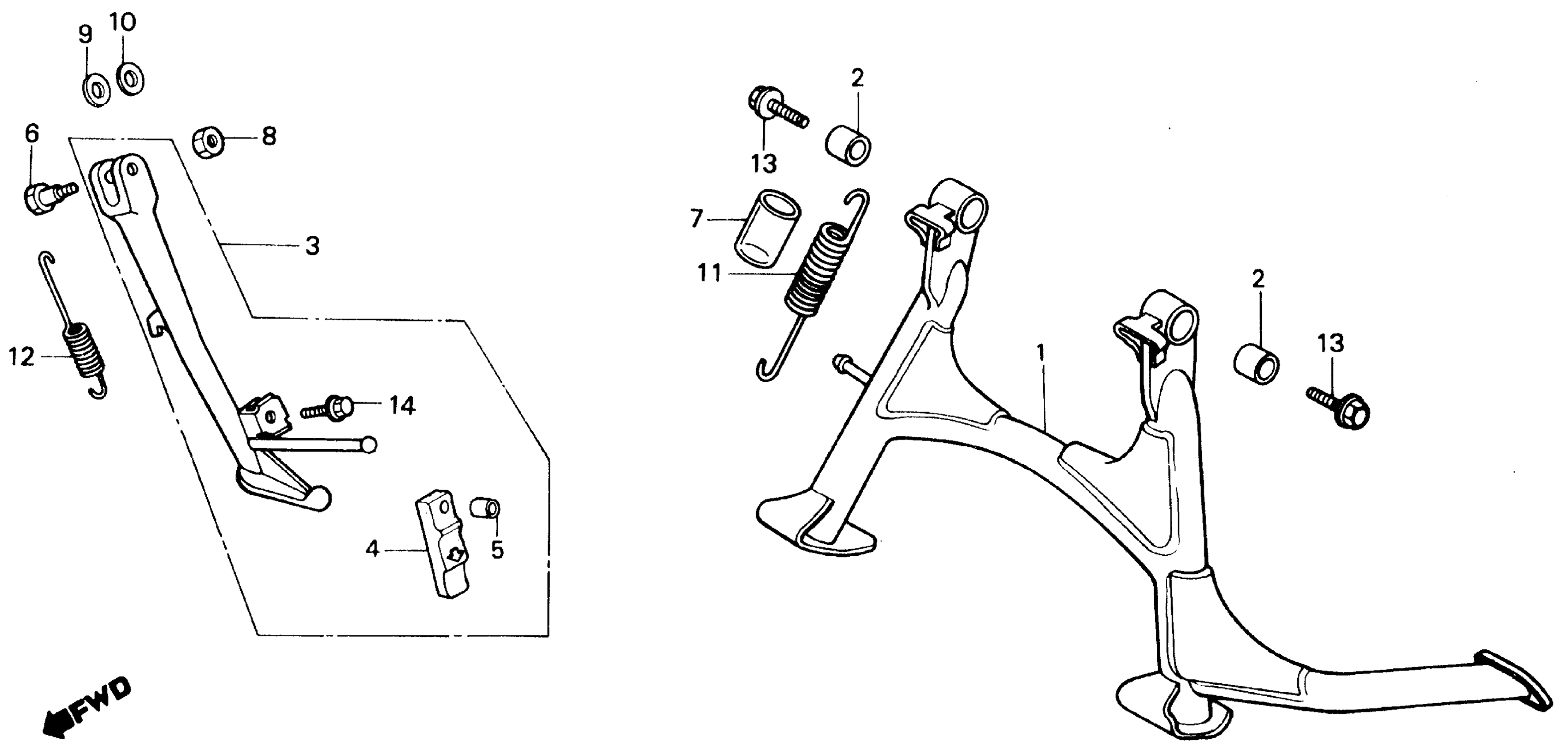

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 STAND Diagram

#

Description
Price

1

STAND, MAIN

50500-MK7-000

Unavailable

2

COLLAR, MAIN STAND

50526-ME9-000

Unavailable

3

BAR ASSY., SIDE STAND (NOT AVAILABLE)

50540-MR6-670

Unavailable

4

RUBBER, STAND

50548-356-700

$10.50

5

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

6

BOLT, SIDE STAND PIVOT

90108-ML7-610

Unavailable

7

COVER, MAIN STAND SPRING

90125-410-000

Unavailable

8

NUT, SIDE STAND

90203-MF9-710

$3.67

9

WASHER, THRUST (24X13)

90501-MF9-710

Unavailable

10

WASHER, THRUST (24X10)

90502-MF9-710

Unavailable

11

SPRING G, MAIN STAND

95014-71702

$4.08

12

SPRING D, SIDE STAND

95014-72402

$2.92

13

BOLT, FLANGE (10X35) This part replaces 95800-10035-08.

95801-10035-08

$2.58

13

BOLT, FLANGE (10X40) This part replaces 95800-10040-08.

95801-10040-08

$2.30

13

BOLT, FLANGE (10X40)

95801-10040-08

$2.30

13

BOLT, FLANGE (10X35)

96400-10040-08

Unavailable

14

BOLT, FLANGE (6X25) This part replaces 96000-06025-02.

96001-06025-02

$1.49

14

BOLT, FLANGE (6X25)

96001-06025-02

$1.49
