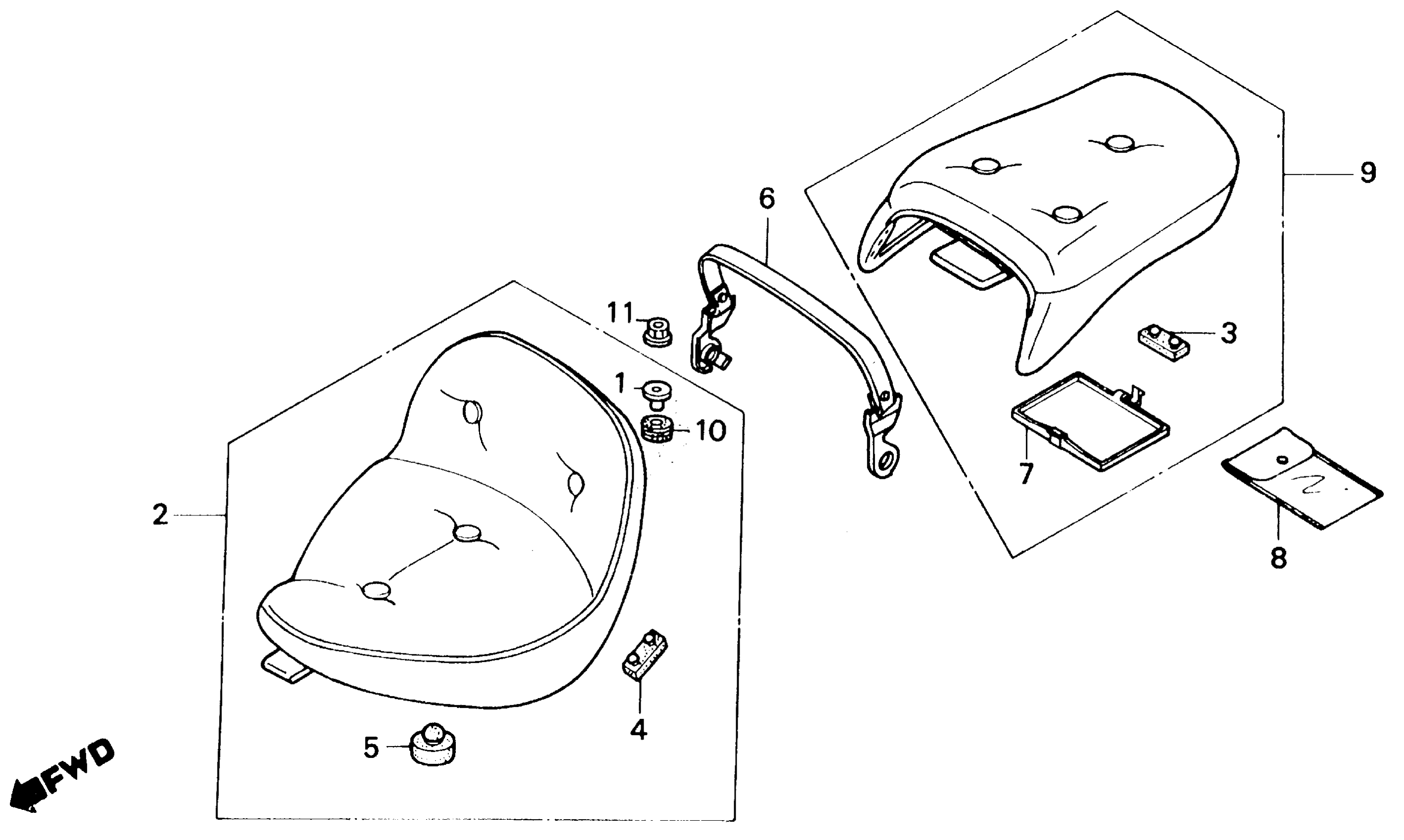

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 SEAT Diagram

#

Description

Price

1

COLLAR, FR. FENDER (WHITE) This part replaces 61104-MA6-720.

61104-428-010

Unavailable

1

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

Unavailable

1

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

Unavailable

2

SEAT ASSY., FR.

77100-MR6-670

Unavailable

3

RUBBER, SEAT SETTING

77204-312-000

$4.83

4

RUBBER B, SEAT SETTING

77205-286-000

$5.04

5

RUBBER, SEAT (NOT AVAILABLE)

77206-425-000

Unavailable

6

SEAT BELT

77215-MR6-670

Unavailable

7

LID, SEAT (LOWER) (NOT AVAILABLE)

77250-GA6-000

Unavailable

8

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.10

9

SEAT ASSY., RR.

77300-MR6-670

Unavailable

10

RUBBER, TAILLIGHT

80112-MA6-000

$3.74

11

NUT-WASHER (6MM)

94071-06080

$1.46
