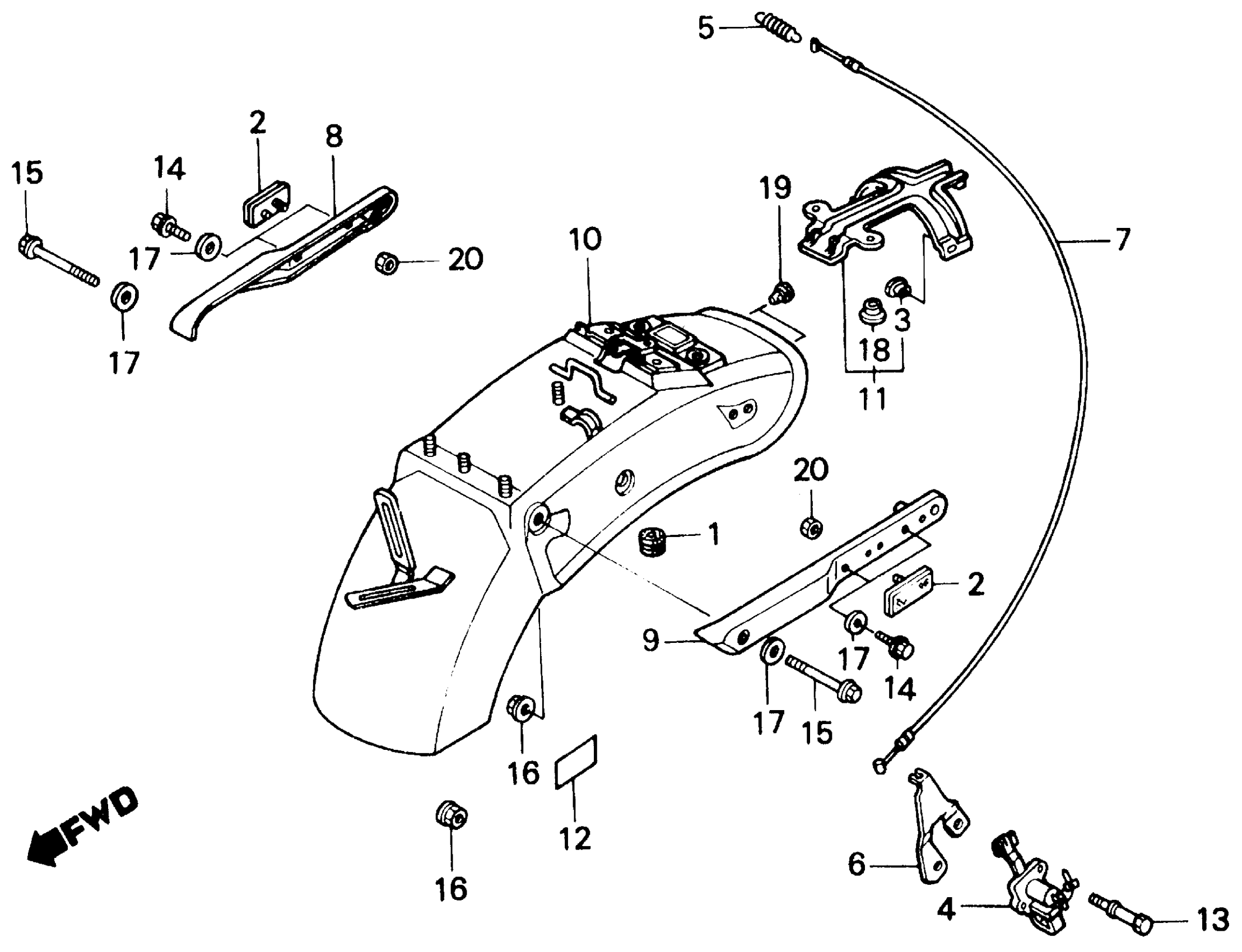

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 REAR FENDER Diagram

#

Description
Price

1

RUBBER, SHROUD MOUNT

19615-GJ5-000

Unavailable

2

REFLECTOR, REFLEX

33741-MC7-612

$14.43

3

COLLAR, SEAT SETTING (NOT AVAILABLE)

77102-MB3-000

Unavailable

4

LOCK ASSY., SEAT

77110-MR6-670

Unavailable

5

SPRING, SEAT LOCK

77151-MB1-870

Unavailable

6

COVER, HELMET HOLDER

77155-MK7-000

Unavailable

7

CABLE, SEAT LOCK

77156-MK7-000

Unavailable

8

GRAB RAIL, R.

77330-MR6-670

Unavailable

9

GRAB RAIL, L.

77340-MR6-670

Unavailable

10

FENDER, RR. *NH1Z* (BLACK-Z) (NOT AVAILABLE)

80100-MR6-670ZA

Unavailable

10

FENDER, RR. *R114CU* (CANDY WINE BERRY RED-U) (NOT AVAILABLE)

80100-MR6-670ZB

Unavailable

11

COVER, RR. FENDER HARNESS

80108-MK7-000

Unavailable

12

MARK, ACCESSORIES & LOADING CAUTION (NOT AVAILABLE)

87512-MN0-300

Unavailable

13

BOLT, BREAK OFF (6MM)

90008-MB6-630

Unavailable

14

BOLT, FLANGE (8X16)

90106-MB2-000

$4.06

14

BOLT, FLANGE (8X16) This part replaces 90110-ME4-000.

90106-MB2-000

$4.06

15

BOLT, FLANGE (8X60)

90161-MB6-630

Unavailable

16

NUT, FLANGE (8MM)

90309-428-731

$3.35

17

WASHER, PLAIN (8MM)

90501-MM8-610

$2.33

17

WASHER, PLAIN (8MM) This part replaces 90503-MM8-770.

90501-MM8-610

$2.33

18

WASHER (6X20) (L. SIDE ONLY) This part replaces 90512-329-690.

90512-KF9-900

$3.06

19

PLUG, CONE TYPE

90899-422-610

$1.89

20

NUT, HEX. (5MM)

94001-05000-0S

$2.74
