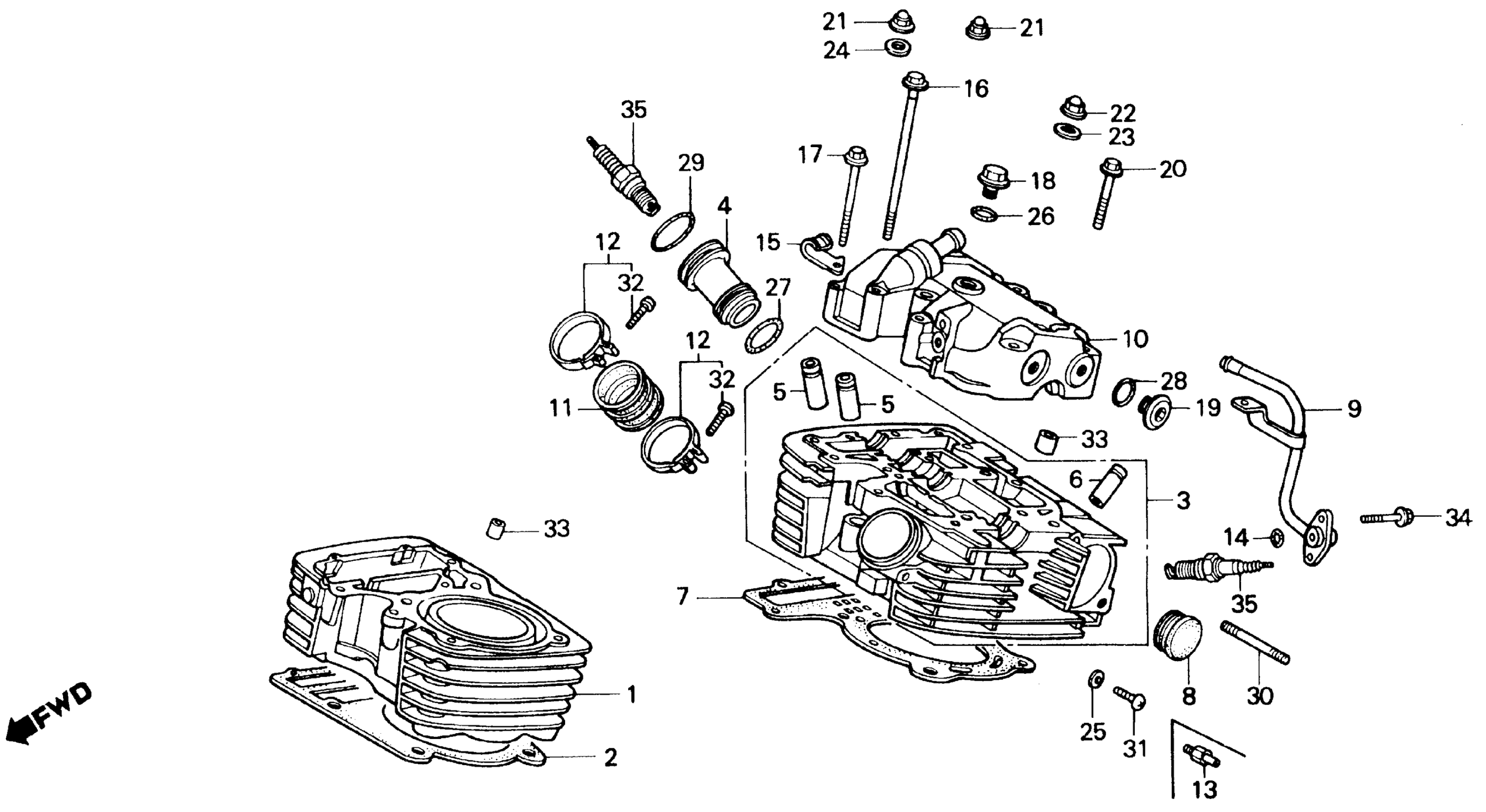

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 REAR CYLINDER Diagram

#

Description
Price

1

CYLINDER, RR.

12110-MR6-670

Unavailable

2

GASKET, CYLINDER

12191-MK7-671

Unavailable

3

CYLINDER HEAD, RR.

12220-MR6-670

Unavailable

4

SLEEVE, PLUG

12225-ME9-000

Unavailable

5

GUIDE, VALVE

12231-MG8-305

$20.08

6

GUIDE, IN VALVE This part replaces 12233-MG8-305.

12233-MG8-405

Unavailable

6

GUIDE, IN VALVE

12233-MG8-405

Unavailable

7

GASKET, CYLINDER HEAD This part replaces 12251-ML5-003.

12251-MR5-670

Unavailable

7

GASKET, CYLINDER HEAD

12251-MR5-670

Unavailable

8

PLUG, CAMSHAFT

12312-ME9-750

$10.12

10

COVER, RR. CYLINDER HEAD

12320-MR6-670

Unavailable

11

INSULATOR, CARBURETOR (NOT AVAILABLE)

16211-MK7-770

Unavailable

12

BAND, INSULATOR

16219-ME9-000

$10.37

15

CLIP, IGNITION WIRE

32921-MR6-000

Unavailable

16

BOLT, FLANGE (8X150)

90015-MG8-000

$6.07

16

BOLT, FLANGE (8X150) This part replaces 90015-MR6-670.

90015-MG8-000

$6.07

17

BOLT, FLANGE (6X55)

90017-MR6-670

Unavailable

18

BOLT, SEALING (14MM)

90047-MR6-670

Unavailable

19

BOLT, SEALING (22MM)

90048-MR6-670

Unavailable

20

BOLT, FLANGE (8X55) This part replaces 90051-ME9-000.

95701-08055-00

$2.28

20

BOLT, FLANGE (8X55)

95701-08055-00

$2.28

21

NUT, FLANGE CAP (8MM)

90208-438-000

$2.98

22

NUT, CAP (10MM) This part replaces 90210-438-000.

90201-HA0-000

$6.45

23

WASHER (10MM) This part replaces 90403-ML4-610.

90403-ML4-611

$6.21

24

WASHER, SEALING (8MM)

90441-MG8-000

$2.28

25

WASHER, SEALING (5MM)

90452-323-000

$1.59

26

O-RING (13.8X1.9) This part replaces 91301-KJ9-000.

91301-PC0-003

$2.66

26

O-RING (13.8X1.9)

91301-PC0-003

$2.66

27

O-RING (27.4X2.4) (ARAI)

91304-MG7-003

$6.45

28

O-RING (21.5X2)

91310-MB0-003

$2.92

29

O-RING (35.3X2.4) (NOK)

91351-MG7-004

$7.99

30

BOLT 2, STUD (8X35)

92900-08035-0B

$2.46

30

BOLT 2, STUD (8X35) This part replaces 92900-08035-0E.

92900-08035-0B

$2.46

31

SCREW, PAN (5X8)

93500-05008-0A

$1.49

32

SCREW, PAN (5X25)

93500-05025-0G

$1.49

33

PIN A, DOWEL (14X20)

94301-14200

$2.28

35

SPARK PLUG (DPR6EA-9) (NGK)

98069-56916

$2.62

35

SPARK PLUG (X20EPR-U9) (DENSO)

98069-56926

$2.54

35

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.62

35

SPARK PLUG (X22EPR-U9) (DENSO)

98069-57926

$2.54

35

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

35

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54
