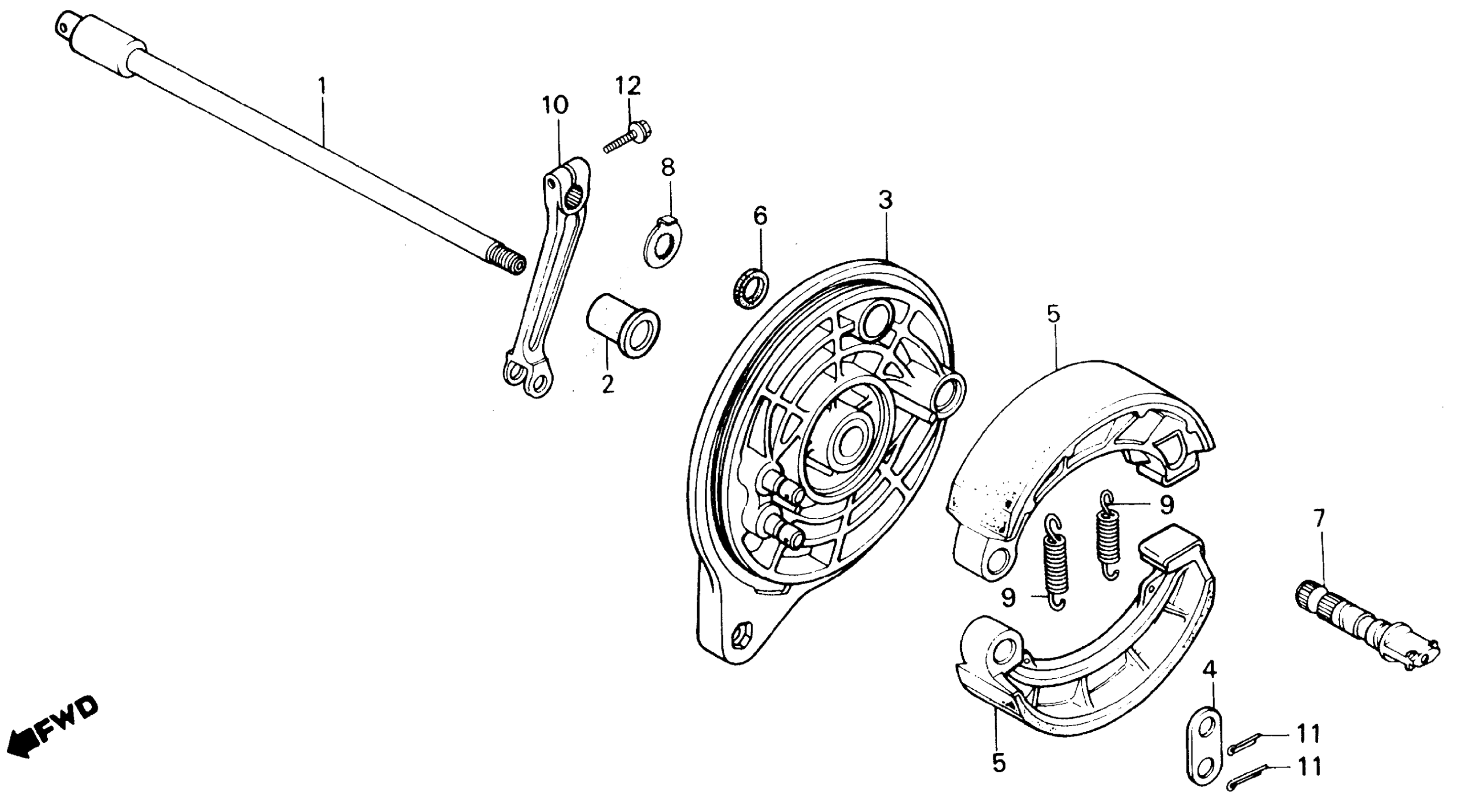

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE KIT, BRAKE This part replaces 06430-MJ1-006.

06430-MM8-881

$55.16

NI

SHOE KIT, BRAKE

06430-MM8-881

$55.16

NI

SHOE KIT, BRAKE This part replaces 431A2-MJ1-006.

06430-MM8-881

$55.16

1

AXLE, RR. WHEEL

42301-MK7-670

Unavailable

2

COLLAR, RR. WHEEL SIDE

42313-MK7-000

Unavailable

3

PANEL, RR.

43100-MR6-670

Unavailable

4

WASHER, ANCHOR PIN

43102-319-000

$6.21

5

SHOE KIT, BRAKE

06430-MM8-881

$55.16

5

SHOE KIT, BRAKE This part replaces 43120-MJ1-006.

06430-MM8-881

$55.16

5

SHOE KIT, BRAKE This part replaces 43120-MJ1-405.

06430-MM8-881

$55.16

6

DUST SEAL, BRAKE CAM

43134-300-000

$2.09

7

CAM, RR. BRAKE This part replaces 43141-MB0-000.

43141-MB0-010

$41.60

7

CAM, RR. BRAKE

43141-MB0-010

$41.60

8

INDICATOR, RR. BRAKE

43145-ME5-000

$5.84

9

SPRING, RR. BRAKE SHOE

43151-346-000

$5.90

10

ARM, RR. BRAKE

43410-MJ1-000

$57.50

11

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

11

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

11

PIN, COTTER (2.5MM)

94201-25300

$1.49

12

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

12

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
