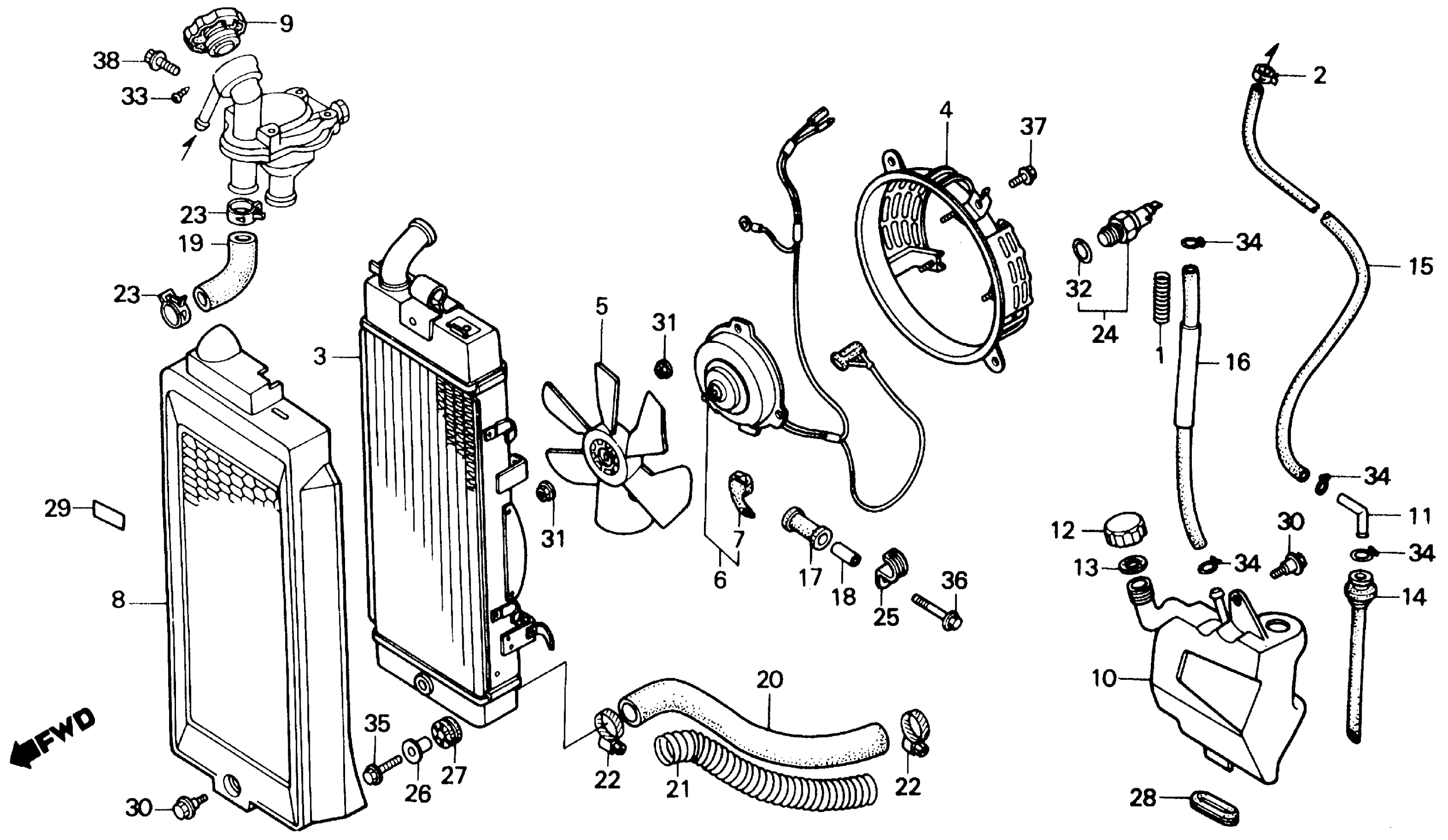

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 RADIATOR Diagram

#

Description
Price

1

SPRING, FUEL TUBE COVER

16715-MB1-000

Unavailable

2

CLIP, FUEL HOSE

16969-MB1-000

$5.10

3

RADIATOR

19010-MK7-003

Unavailable

4

SHROUD

19015-MR6-670

Unavailable

5

FAN, COOLING

19020-MG8-003

$62.31

6

MOTOR ASSY., FAN (MATSUSHITA) This part replaces 19030-MK7-014.

19030-MK7-024

Unavailable

6

MOTOR ASSY., FAN (MATSUSHITA)

19030-MK7-024

Unavailable

7

TUBE, RUBBER

19031-MG8-300

Unavailable

8

COVER, RADIATOR

19032-MK7-000

Unavailable

9

CAP, RADIATOR This part replaces 19045-MB0-702.

19045-MZ3-405

$32.49

9

CAP, RADIATOR This part replaces 19045-MR6-670.

19045-MZ3-405

$32.49

10

TANK, RADIATOR RESERVE (NOT AVAILABLE)

19103-MK7-000

Unavailable

11

JOINT, TUBE

19103-463-000

Unavailable

12

CAP, RESERVE TANK

19104-ME9-000

$16.36

13

GASKET, RESERVE TANK

19107-MG8-000

$5.05

14

TUBE, LEVEL This part replaces 19108-MB0-000.

19108-MB0-010

$11.50

14

TUBE, LEVEL

19108-MB0-010

$11.50

15

TUBE, RESERVE TANK BREATHER

19108-MK7-000

Unavailable

16

TUBE, RADIATOR RESERVE

19109-MK7-000

Unavailable

17

RUBBER, RADIATOR SETTING

19113-MB0-000

Unavailable

18

COLLAR, RADIATOR SETTING

19114-MB0-000

Unavailable

19

HOSE, RADIATOR (UPPER)

19116-MR6-670

Unavailable

20

HOSE, RADIATOR (LOWER) (NOT AVAILABLE)

19117-MK7-000

Unavailable

21

GUARD, RADIATOR HOSE (LOWER)

19120-MG8-000

Unavailable

22

CLAMP, WATER HOSE

19503-MB1-870

$12.56

23

CLAMP, HOSE (22-29MM) This part replaces 19513-MF5-000.

19517-ML7-691

$11.62

23

CLAMP, HOSE (22-29MM) This part replaces 19513-MM4-003.

19517-ML7-691

$11.62

23

CLAMP, HOSE (22-29)

19517-ML7-691

$11.62

24

SWITCH ASSY., THERMO This part replaces 37760-MB2-901.

37760-MR1-003

$71.91

24

SWITCH ASSY., THERMO

37760-MR1-003

$71.91

25

CLIP A, HARNESS

50305-MK7-000

Unavailable

26

COLLAR, FR. FENDER (WHITE) This part replaces 61104-MA6-720.

61104-428-010

$4.42

26

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

26

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

27

RUBBER, HEADLIGHT CASE SETTING

61304-415-000

$3.47

28

GROMMET A, SIDE COVER

83601-MB0-000

$4.53

29

MARK, RADIATOR CAUTION (NOT AVAILABLE)

87508-415-670

Unavailable

30

BOLT, FLANGE (6MM)

90116-ME9-000

$3.35

31

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

32

O-RING (13.5X1.4)

91307-PH7-660

$2.83

32

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

33

SCREW, TAPPING (3X6)

93901-22080

$1.49

34

CLIP, TUBE (C11)

95002-70000

$1.56

35

BOLT, FLANGE (6X22) This part replaces 95700-06022-07.

95701-06022-07

$1.49

35

BOLT, FLANGE (6X22)

95701-06022-07

$1.49

36

BOLT, FLANGE (6X40) This part replaces 95700-06040-07.

95701-06040-07

$1.80

36

BOLT, FLANGE (6X40)

95701-06040-07

$1.80

37

BOLT, FLANGE (6X10) This part replaces 96000-06010-07.

96001-06010-07

$1.62

37

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

38

BOLT, FLANGE (6X10)

96001-06010-07

$1.62
