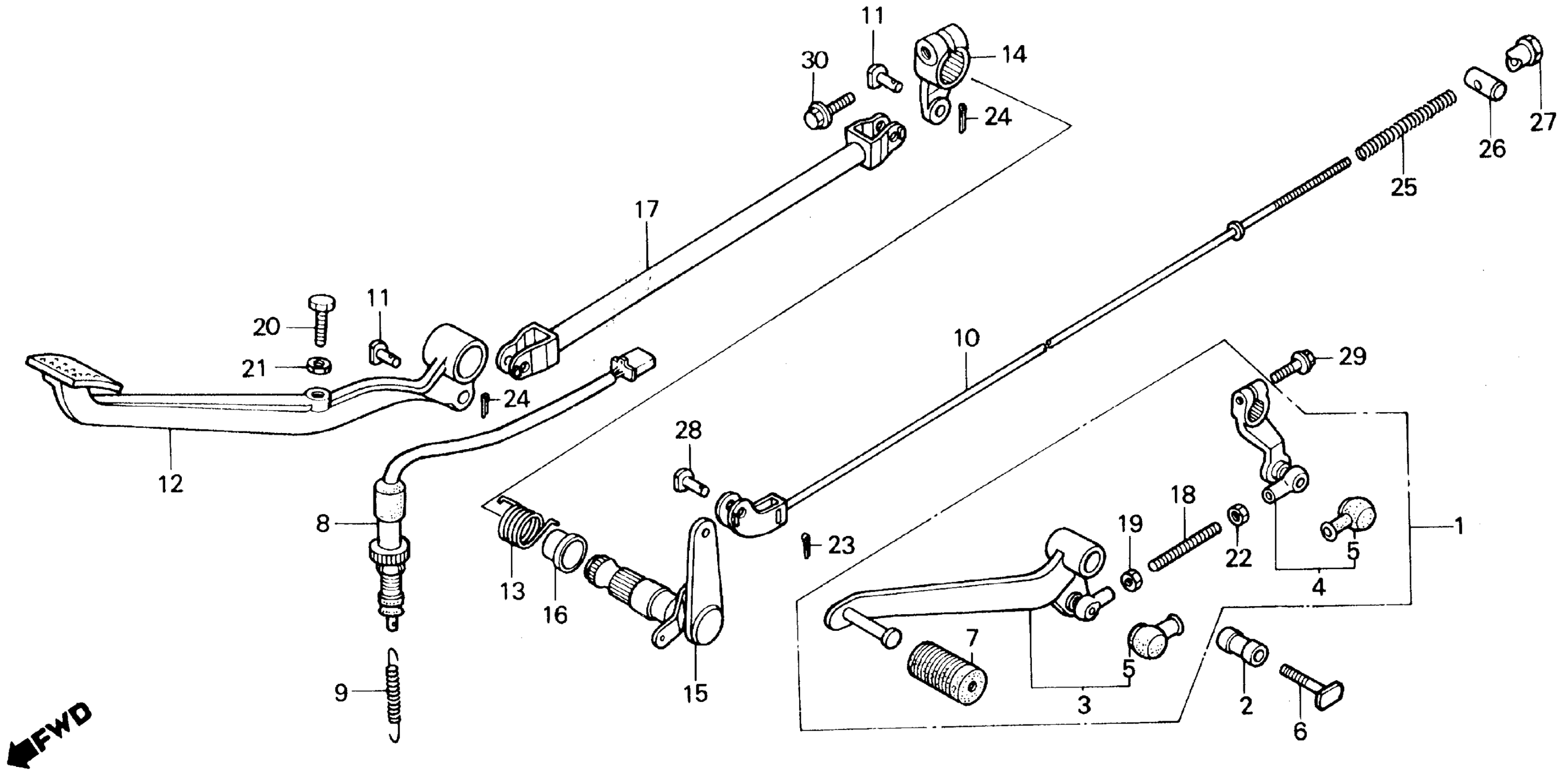

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 PEDAL Diagram

PEDAL ASSY., CHANGE (NOT AVAILABLE)

24700-MR6-670

Unavailable

COLLAR, GEARSHIFT PEDAL PIVOT

24705-MK3-000

$10.67

PEDAL, GEARSHIFT (NOT AVAILABLE)

24705-MR6-670

Unavailable

ARM, GEARSHIFT (NOT AVAILABLE)

24710-MK7-000

Unavailable

COVER, DUST

24724-422-000

$6.68

BOLT, CHANGE PEDAL PIVOT

24725-MK3-000

Unavailable

RUBBER, CHANGE PEDAL

24781-KR3-770

$3.39

SWITCH ASSY., RR. STOP

35350-KR0-405

$19.25

SWITCH ASSY., RR. STOP This part replaces 35350-MF2-881.

35350-KR0-405

$19.25

SPRING, STOP SWITCH

35357-ME9-000

$4.74

ROD, RR. BRAKE

43451-MK7-000

Unavailable

PIN, MIDDLE ROD JOINT

43456-MK7-000

Unavailable

PEDAL, RR. BRAKE

46500-MK7-000

Unavailable

SPRING, BRAKE RETURN

46514-MK7-770

Unavailable

ARM, RR. BRAKE PEDAL LINK (NOT AVAILABLE)

46520-MK7-000

Unavailable

SPINDLE B, RR. BRAKE

46530-MK7-000

Unavailable

BUSH, BRAKE PIVOT

46535-MK7-003

Unavailable

ROD, RR. BRAKE MIDDLE

46540-MK7-003

Unavailable

BOLT, TIE ROD

90065-ML0-000

Unavailable

NUT A, FIXING

90201-ML0-000

Unavailable

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

BOLT, HEX. (6X20) This part replaces 92000-06020-0A.

92101-06020-0A

$1.49

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

NUT, HEX. (6MM)

94002-06000-0S

$1.49

NUT, HEX. (6MM)

94002-06020-0S

$1.49

PIN, COTTER (1.6X12)

94201-16120

$1.49

PIN, COTTER (2.0X15)

94201-20150

$1.49

SPRING A, BRAKE ROD

95014-73100

$1.49

JOINT, BRAKE ARM

95015-32001

$1.49

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

BOLT, FLANGE (8X28) This part replaces 95700-08028-00.

95701-08028-00

$1.49

BOLT, FLANGE (8X28)

95701-08028-00
