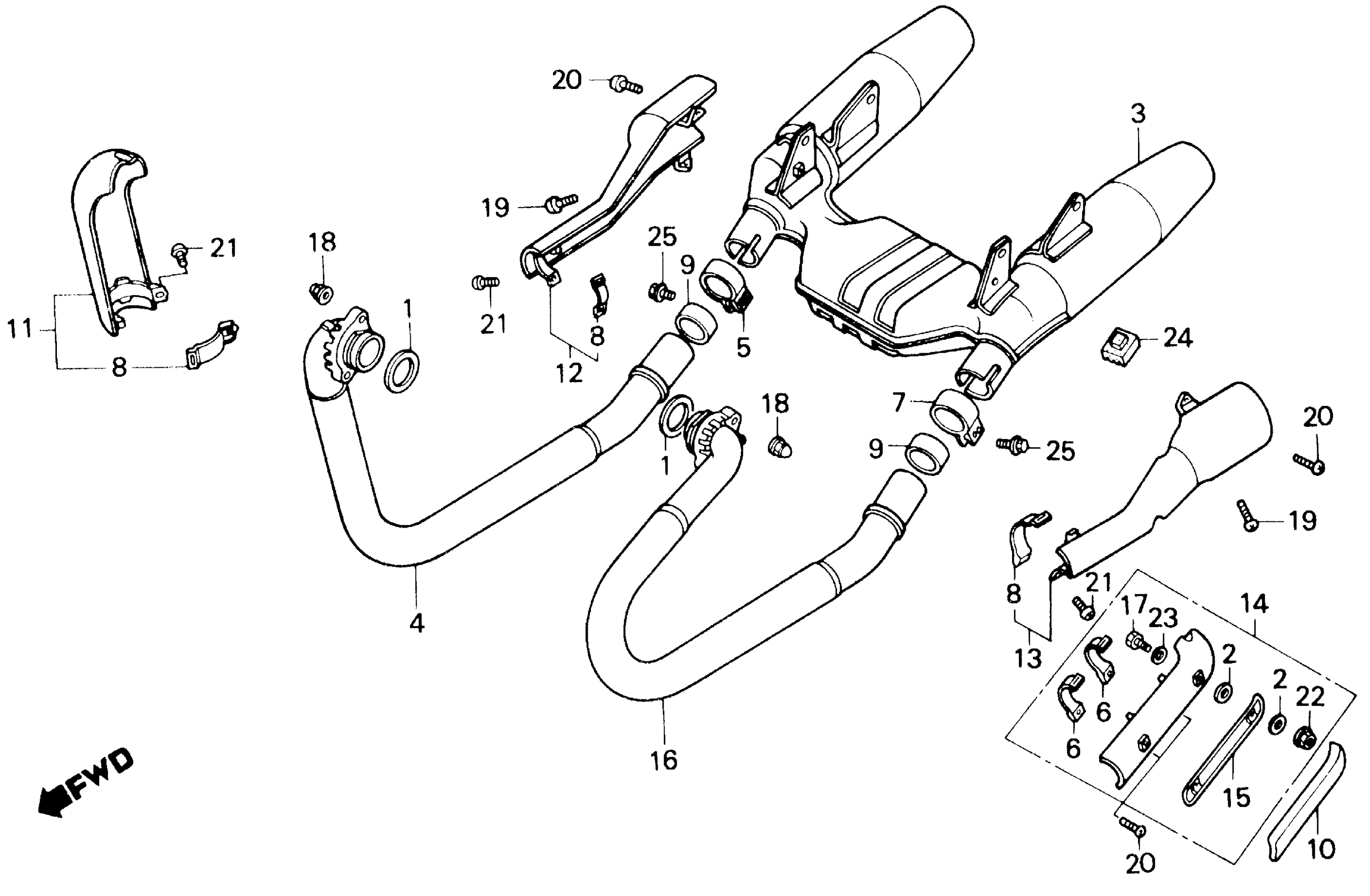

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE This part replaces 18291-ME9-000.

18291-MM8-880

$6.65

1

GASKET, EX. PIPE This part replaces 18291-ME9-306.

18291-MM8-880

$6.65

1

GASKET, EX. PIPE

18291-MM8-880

$6.65

2

GASKET, PROTECTOR

18293-MCA-780

$4.51

2

GASKET, PROTECTOR This part replaces 18293-MN5-650.

18293-MCA-780

$4.51

2

GASKET, PROTECTOR This part replaces 18293-422-000.

18293-MCA-780

$4.51

3

MUFFLER, EX.

18300-MR6-670

Unavailable

4

PIPE, R. EX.

18320-MK7-003

Unavailable

5

BAND, R. MUFFLER

18376-MB4-003

$37.00

5

BAND, R. MUFFLER This part replaces 18376-ME9-003.

18376-MB4-003

$37.00

6

BAND B, PROTECTOR (NOT AVAILABLE)

18376-MG8-003

Unavailable

7

BAND, L. MUFFLER

18377-MB4-003

$36.96

7

BAND, L. MUFFLER This part replaces 18377-ME9-003.

18377-MB4-003

$36.96

8

BAND D, PROTECTOR

18377-MG8-003

Unavailable

9

GASKET, RR. MUFFLER

18392-MJ4-670

$14.41

9

GASKET, RR. MUFFLER This part replaces 18392-449-000.

18392-MJ4-670

$14.41

10

PROTECTOR, EX.

18413-MG8-000

Unavailable

11

PROTECTOR, R. EX.

18415-MK7-003

Unavailable

12

PROTECTOR, R. CHAMBER (NOT AVAILABLE)

18416-MK7-003

Unavailable

13

PROTECTOR, L. CHAMBER

18417-MK7-003

Unavailable

14

PROTECTOR, L. EX. (NOT AVAILABLE)

18418-MK7-003

Unavailable

15

PROTECTOR D

18419-MG8-003

Unavailable

16

PIPE, L. EX. (NOT AVAILABLE)

18420-MK7-003

Unavailable

17

BOLT, HEX. (6X12)

90003-836-000

Unavailable

18

NUT, FLANGE CAP (8MM)

90208-438-000

$2.80

19

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$0.93

19

SCREW, PAN (6X10)

93500-06010-0A

$0.93

20

SCREW, PAN (6X12)

93500-06012-0A

$0.90

21

SCREW, PAN (6X16)

93500-06016-0A

$1.04

22

NUT, FLANGE (6MM)

94050-06080

$0.59

23

WASHER, SPRING (6MM)

94111-06800

$1.03

24

RUBBER A, STAND STOPPER

95011-61000

$1.13

25

BOLT, FLANGE (8X35) This part replaces 95700-08035-00.

95701-08035-00

$2.09

25

BOLT, FLANGE (8X35)

95701-08035-00

$2.09
