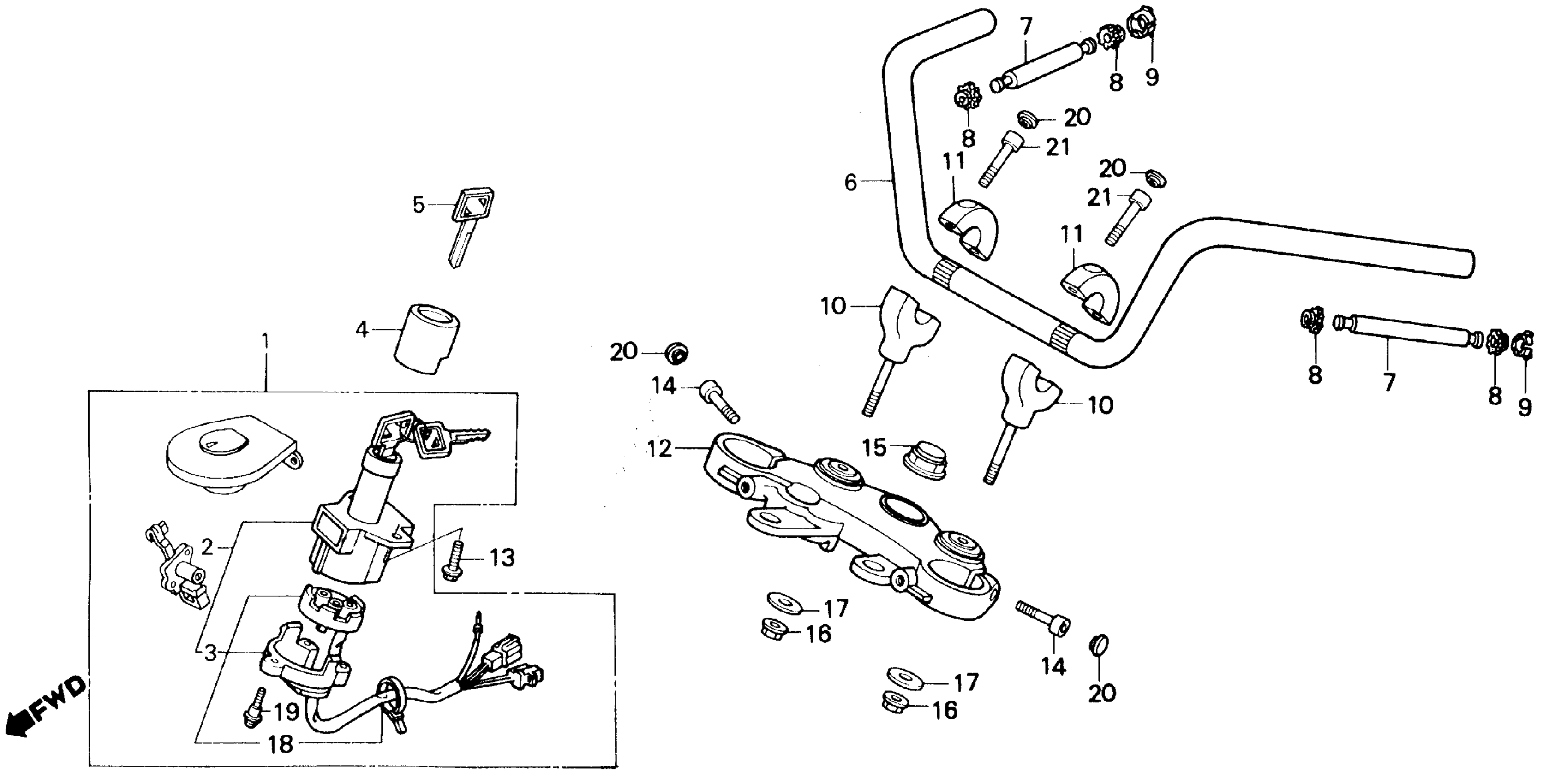

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 HANDLEBAR Diagram

#

Description
Price

1

LOCK SET

35010-MR6-670

Unavailable

2

SWITCH ASSY. This part replaces 35100-MR6-007.

35100-MR6-017

Unavailable

3

BASE, CONTACT (NOT AVAILABLE)

35101-MR6-000

Unavailable

4

COVER, COMBINATION SWITCH

35105-MK7-000

Unavailable

5

KEY, BLANK (TYPE1)

35121-KW3-771

$10.10

5

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) This part replaces 35121-MA6-811.

35121-KW3-771

$10.10

5

KEY, BLANK (TYPE2)

35122-KW3-771

$10.10

5

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) This part replaces 35122-MA6-811.

35122-KW3-771

$10.10

6

HANDLEBAR

53100-MR6-670

Unavailable

7

WEIGHT, HANDLE

53106-415-000

Unavailable

8

RUBBER, HANDLE WEIGHT

53107-415-000

Unavailable

9

RING, HANDLE WEIGHT SNAP

53108-MK4-000

Unavailable

9

RING, HANDLE WEIGHT SNAP This part replaces 53108-415-004.

53108-MK4-000

Unavailable

10

HOLDER, HANDLE (LOWER)

53132-MK7-000

Unavailable

11

HOLDER (UPPER) (NOT AVAILABLE)

53235-MK7-000

Unavailable

12

BRIDGE, FORK TOP This part replaces 53240-MK7-000.

53240-MK7-010

Unavailable

13

BOLT, FLANGE (8X19)

90104-MJ1-000

$6.31

14

BOLT, SOCKET (7X32)

90151-MB1-000

$6.52

15

NUT, STEERING STEM

90304-MK4-000

$19.56

16

NUT, FLANGE (8MM)

90309-428-731

$3.35

17

WASHER, HANDLE HOLDER

90535-KB9-000

$6.14

18

BAND, SELF-LOCK

91058-MG9-681

$2.21

19

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

19

SCREW, TAPPING (3X16) This part replaces 91059-MK4-601.

91059-KY2-711

$2.97

20

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.77

21

BOLT, SOCKET (8X32)

96700-08032-00

$1.79
