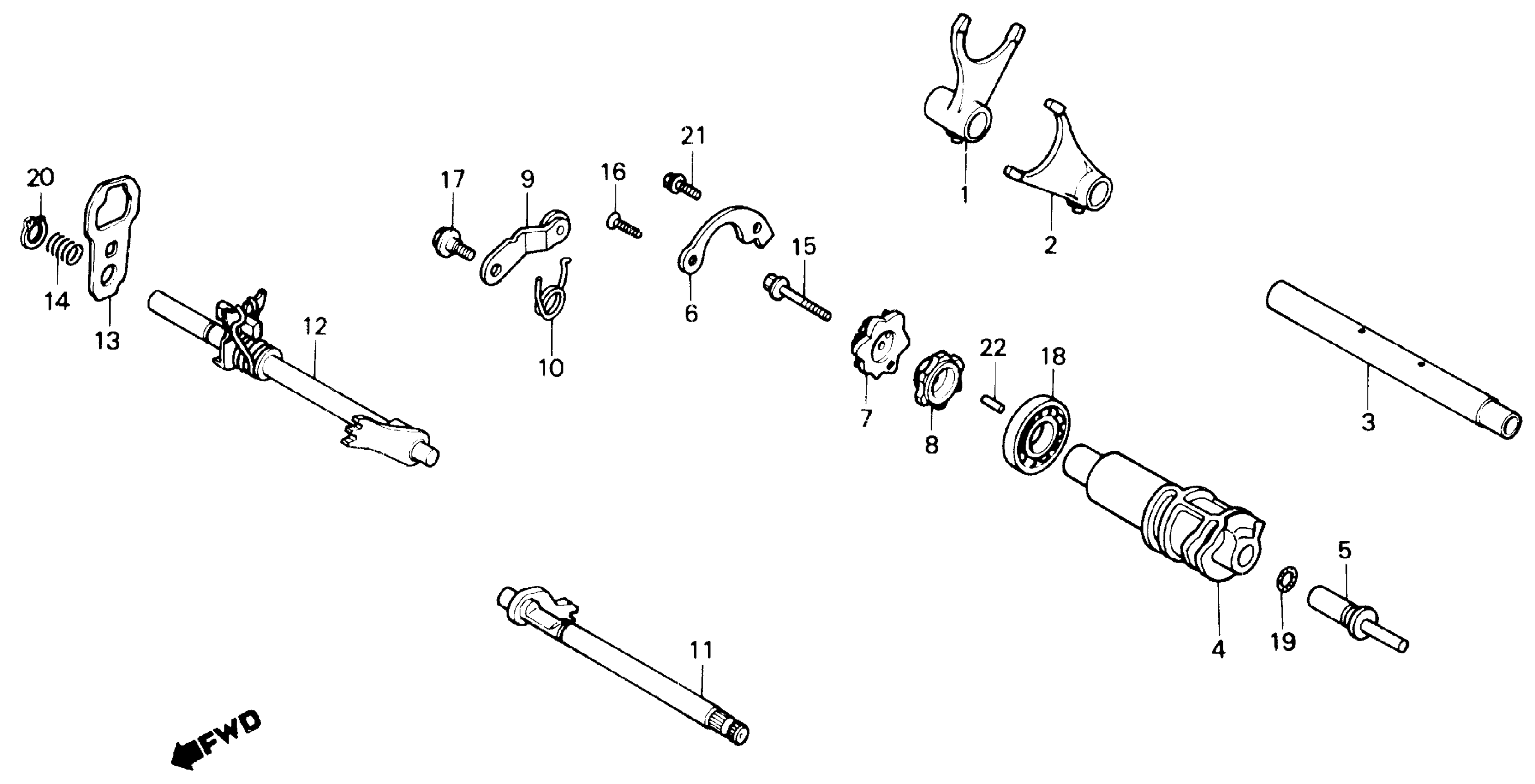

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-MM8-000

Unavailable

2

FORK, CENTER GEARSHIFT This part replaces 24212-MG8-000.

24212-MAA-A00

Unavailable

3

SHAFT, GEARSHIFT FORK

24261-MR6-670

Unavailable

4

DRUM, GEARSHIFT

24302-MR6-670

Unavailable

5

HOLDER, GEARSHIFT DRUM

24304-ME9-000

Unavailable

6

PLATE, SHIFT DRUM BEARING SETTING

24310-MR6-670

Unavailable

7

CAM, GEARSHIFT

24411-MM8-000

Unavailable

8

ROTOR, POSITIVE STOPPER

24413-KA6-003

Unavailable

9

STOPPER, GEARSHIFT DRUM (NOT AVAILABLE)

24430-ME9-000

Unavailable

10

SPRING, GEARSHIFT DRUM STOPPER

24435-ME9-000

Unavailable

11

SPINDLE, GEARSHIFT (A)

24610-ME9-020

Unavailable

12

SPINDLE B, GEARSHIFT

24615-MG8-000

Unavailable

13

PLATE, GEARSHIFT

24621-MG8-000

Unavailable

14

SPRING, GEARSHIFT PLATE

24631-362-000

Unavailable

15

BOLT, FLANGE (6X32)

90021-ME9-000

$2.93

16

SCREW, FLAT (6X16)

90022-ME9-000

$2.30

17

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

18

BEARING, RADIAL BALL (17X32X7)

91006-MCK-A01

Unavailable

18

BEARING, RADIAL BALL (17X32X7) This part replaces 91006-MG8-003.

91006-MCK-A01

Unavailable

19

O-RING (10X1.6)

91301-200-000

$3.01

20

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

21

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

22

ROLLER (3X10)

96222-30100

$1.49
