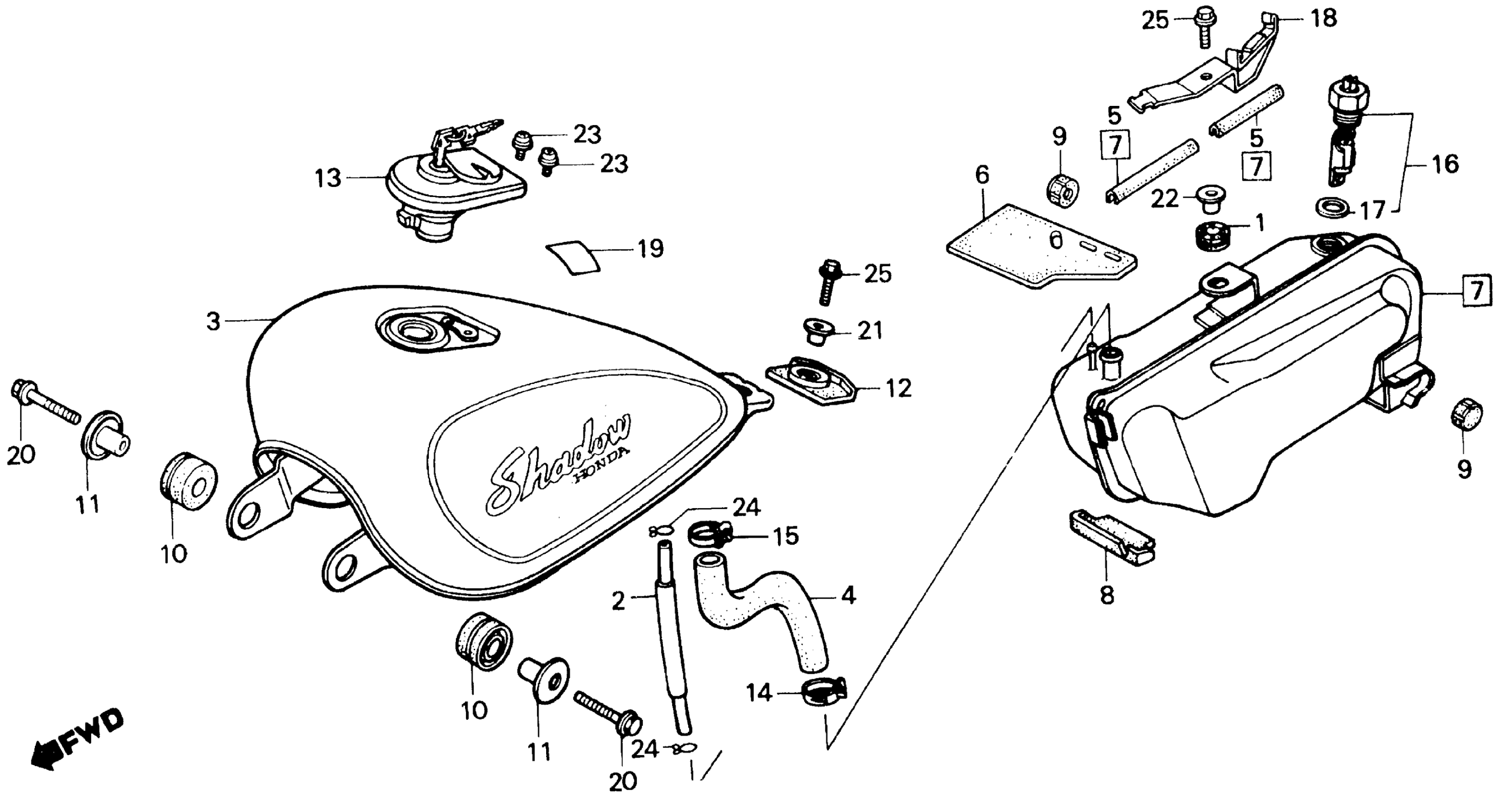

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 FUEL TANK Diagram

#

Description
Price

1

GROMMET, OIL COOLER

15604-MG7-000

$3.64

2

TUBE, FUEL BREATHER

16959-MK7-000

Unavailable

3

TANK SET, FUEL *NH1Z* (WL) (BLACK-Z) (NOT AVAILABLE)

17500-MR6-670ZA

Unavailable

3

TANK SET, FUEL *R114CU* (WL) (CANDY WINE BERRY RED-U) (NOT AVAILABLE)

17500-MR6-670ZB

Unavailable

4

TUBE, FUEL (NOT AVAILABLE)

17511-MK7-000

Unavailable

5

TRIM, FUEL TANK

17516-MK7-000

$9.94

6

COVER, ELECTRIC

17530-MK7-770

Unavailable

7

SUB-TANK, FUEL (NOT AVAILABLE)

17550-MR6-670

Unavailable

8

SUB RUBBER, FUEL TANK

17555-MK7-000

Unavailable

9

RUBBER, FR. TANK

17611-437-000

$6.63

10

RUBBER, FR. TANK

17611-449-010

$6.34

11

COLLAR, FR. TANK SETTING

17612-449-000

Unavailable

12

RUBBER, RR. FUEL TANK

17613-ME9-000

Unavailable

13

CAP, FUEL FILLER This part replaces 17620-MB1-033.

17620-MB1-043

$129.39

14

CLIP, WATER HOSE

19517-KM9-000

$8.28

15

CLAMP B, WATER HOSE

19517-MB6-000

Unavailable

16

SENSOR, FUEL RESERVE (NOT AVAILABLE)

37810-MK7-008

Unavailable

17

GASKET, FUEL RESERVE SENSOR

37811-MB1-008

$2.92

18

BRACKET, FUSE

50335-MR6-670

Unavailable

19

LABEL, DRIVE CAUTION *A73* (TYPEG) (GOLD)

87560-ME9-670ZA

$5.22

20

BOLT, FLANGE (8X36)

90111-362-000

$4.80

21

COLLAR, FUEL TANK SETTING

90324-MB0-700

Unavailable

22

COLLAR (.8X11)

90551-MG7-000

$5.80

23

SCREW-WASHER (4X8)

93893-04008-08

$1.49

24

CLIP, TUBE (B10)

95002-02100

$1.90

25

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

25

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
