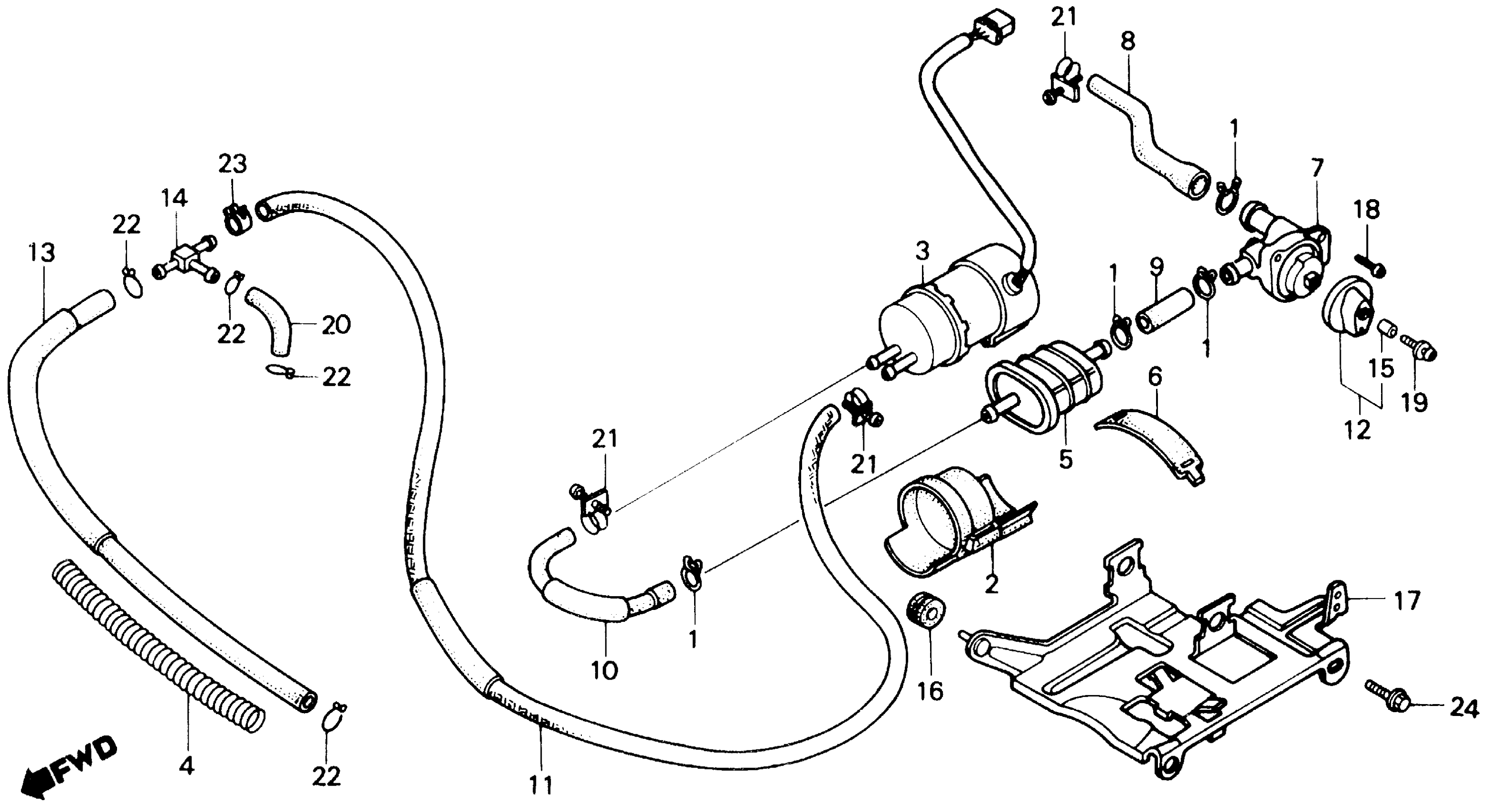

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 FUEL PUMP Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15771-551-000

$9.44

2

RUBBER, FUEL PUMP (NOT AVAILABLE)

16701-MK7-000

Unavailable

3

PUMP ASSY., FUEL (NOT AVAILABLE)

16710-MK7-000

Unavailable

4

SPRING, TUBE COVER

16715-ME9-780

Unavailable

5

FILTER, FUEL

16900-MB6-631

Unavailable

6

BAND, STRAINER (NOT AVAILABLE)

16920-MK7-000

Unavailable

7

PETCOCK ASSY. (NOT AVAILABLE)

16950-MK7-005

Unavailable

8

TUBE A, FUEL

16951-MK7-000

Unavailable

9

TUBE B, FUEL (NOT AVAILABLE)

16952-MK7-000

Unavailable

10

TUBE C, FUEL (NOT AVAILABLE)

16953-MK7-000

Unavailable

11

TUBE D, FUEL (NOT AVAILABLE)

16954-MK7-000

Unavailable

12

LEVER, PETCOCK (NOT AVAILABLE)

16955-MK7-010

Unavailable

13

TUBE, L. CARBURETOR FUEL (NOT AVAILABLE)

16957-MK7-000

Unavailable

14

JOINT, FUEL TUBE

16961-MK7-000

$21.68

15

COLLAR, AIR CLEANER HOUSING

17208-KE5-000

Unavailable

16

GROMMET, AIR CLEANER

17232-898-000

$3.39

17

PLATE, FUEL PUMP

50330-MK7-000

Unavailable

18

SCREW, PAN (6X12)

93500-06012-0A

$1.49

19

SCREW-WASHER (5X10)

93891-05010-07

$1.49

19

SCREW-WASHER (5X10) This part replaces 93891-05010-17.

93891-05010-07

$1.49

20

BULK HOSE, FUEL (5.5X3000) (5.5X50)

95001-55003-60M

$47.32

21

CLIP, TUBE (A14)

95002-01140

Unavailable

22

CLIP, TUBE (B10)

95002-02100

$1.90

23

CLIP, TUBE (D12.5)

95002-41250-08

$2.34

24

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

24

BOLT, FLANGE (6X10)

95701-06010-08

$1.61
