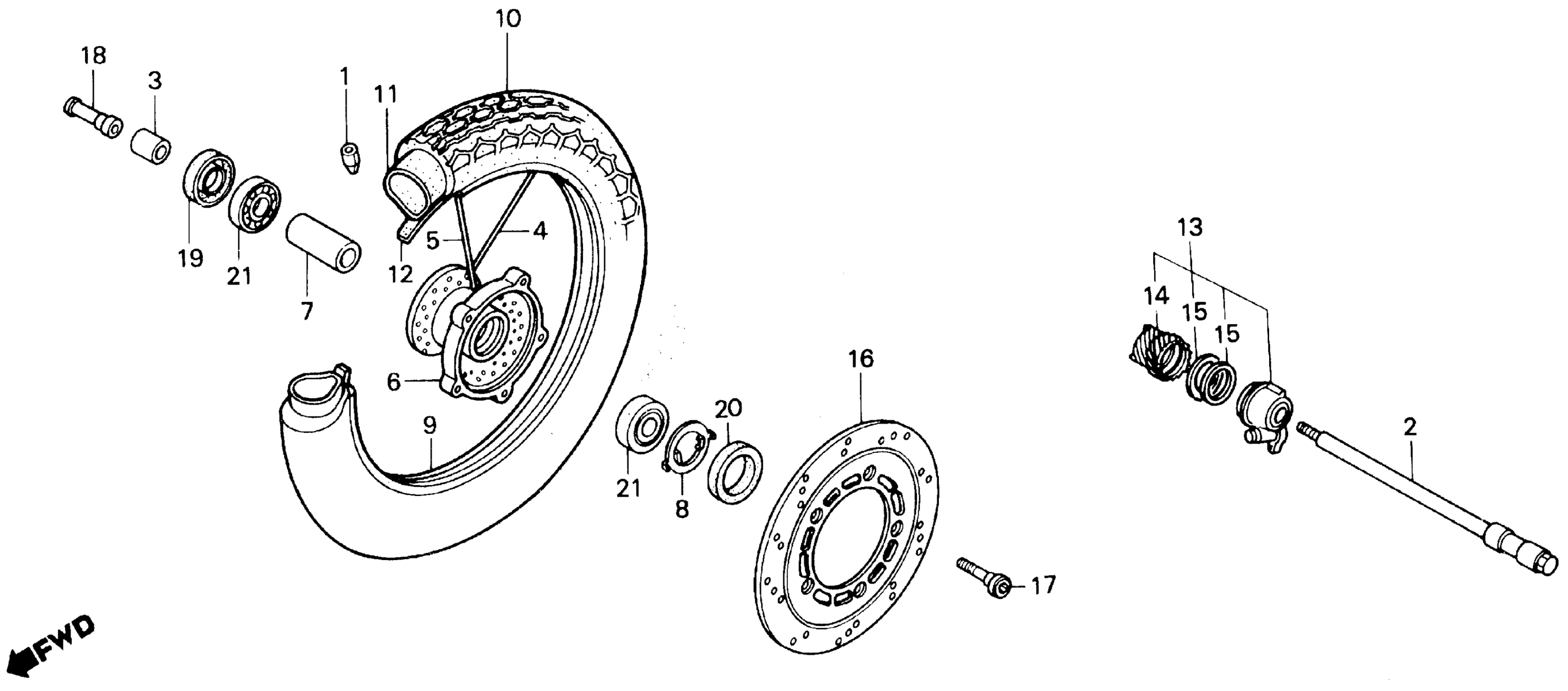

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 FRONT WHEEL Diagram

#

Description
Price

1

WEIGHT, BALANCE (20G) This part replaces 42707-MR6-670.

42705-MEG-003

$7.71

2

AXLE, FR. WHEEL

44301-MJ1-670

Unavailable

3

COLLAR, FR. WHEEL SIDE

44311-MF2-000

Unavailable

4

SPOKE SET A, FR. (7X192)

446A0-MR6-671

Unavailable

5

SPOKE SET B, FR. (7X189)

446B0-MR6-671

Unavailable

6

HUB, FR. WHEEL (NOT AVAILABLE)

44601-MR6-670

Unavailable

7

COLLAR, FR. WHEEL DISTANCE

44620-KBH-000

Unavailable

7

COLLAR, FR. WHEEL DISTANCE This part replaces 44620-ME5-000.

44620-KBH-000

Unavailable

8

RETAINER, GEAR BOX

44680-410-000

$5.54

9

RIM, FR. WHEEL This part replaces 44701-MR6-671.

44701-MR6-672

Unavailable

9

RIM, FR. WHEEL

44701-MR6-672

Unavailable

10

TIRE, FR. (100/90-19) (57H F11) (DUNLOP) (NOT AVAILABLE)

44711-MR6-671

Unavailable

11

TUBE, TIRE (100/90-19) (57H) (DUNLOP)

44712-MR6-671

$33.71

12

FLAP, TIRE (DUNLOP) This part replaces 44713-MR6-671.

42713-KZ3-611

$5.64

13

BOX ASSY., SPEEDOMETER GEAR

44800-MB0-013

$106.34

14

GEAR, SPEEDOMETER

44806-MB0-003

$35.66

15

WASHER, SPEEDOMETER GEAR

44809-402-000

$2.16

16

DISK, FR. BRAKE This part replaces 45251-MR1-670.

45251-MZ8-R40

Unavailable

16

DISK, FR. BRAKE This part replaces 45251-MR6-670.

45251-MZ8-R40

Unavailable

17

BOLT, FR. DISK (8X24)

90105-KR3-000

$5.80

18

NUT, AXLE (14MM) (NOT AVAILABLE)

90305-MK7-670

Unavailable

19

DUST SEAL (22X42X7)

91252-MC7-003

$7.12

20

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.03

21

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$14.16
