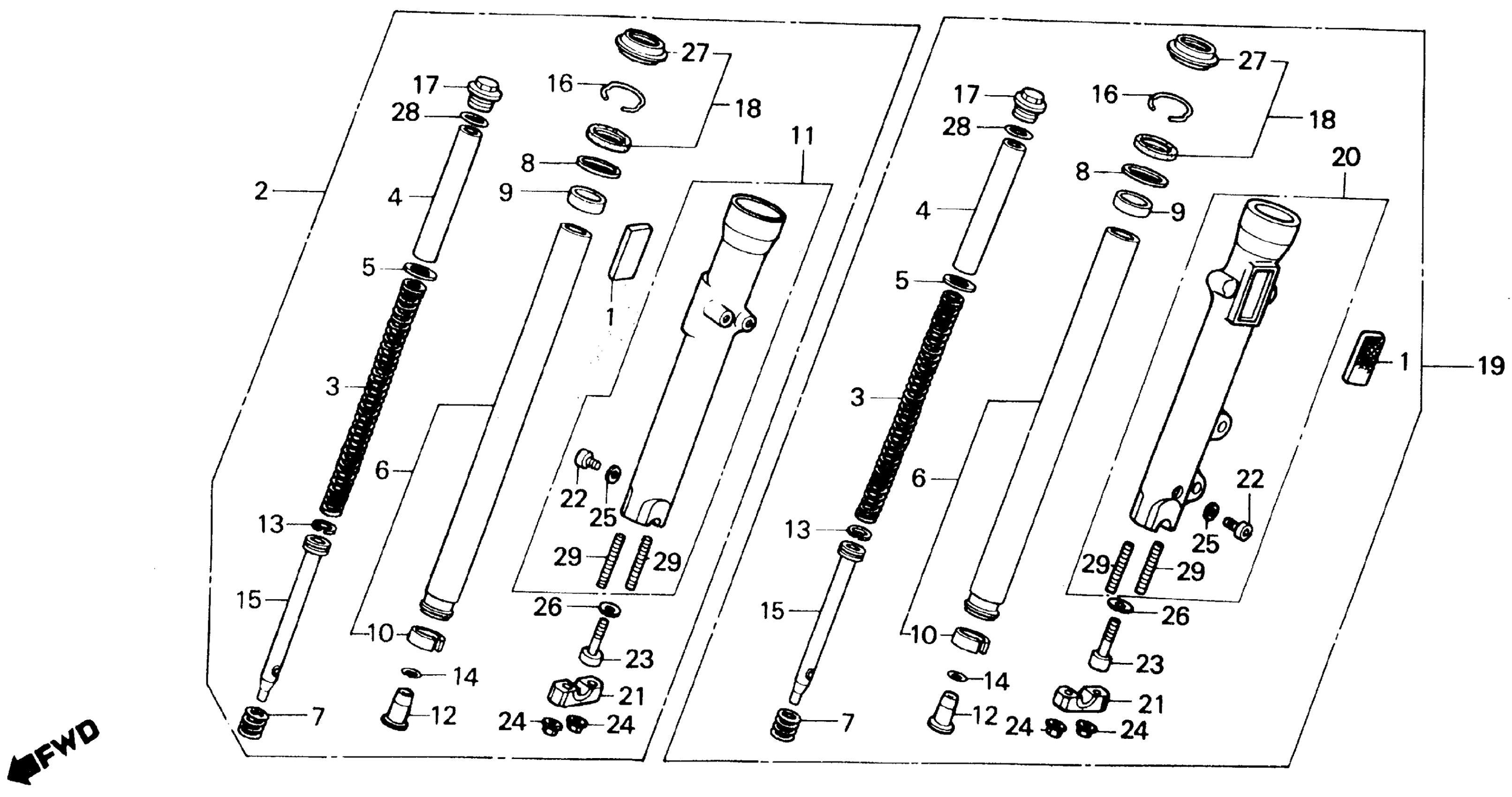

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 FRONT FORK Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX

33740-KR3-671

$31.20

2

FORK ASSY., R. FR.

51400-MR6-671

Unavailable

3

SPRING, FR. FORK (SHOWA)

51401-MK7-671

Unavailable

4

COLLAR, SPRING

51402-ME9-003

Unavailable

5

PLATE, SPRING JOINT

51403-ME5-003

Unavailable

6

PIPE, FR. FORK (SHOWA)

51410-MR6-671

Unavailable

7

SPRING, REBOUND

51411-ME5-003

Unavailable

8

RING, BACK-UP

51412-463-003

$7.75

9

BUSH, FORK PIPE

51414-463-003

$15.77

10

BUSH, SLIDER

51415-MN0-003

Unavailable

11

CASE, R. (LOWER) (SHOWA) (NOT AVAILABLE)

51421-MK7-671

Unavailable

12

PIECE, OIL LOCK (NOT AVAILABLE)

51432-MK7-671

Unavailable

13

RING, PISTON

51437-ME5-003

Unavailable

14

RING, PISTON STOPPER

51439-340-300

Unavailable

15

PIPE, SEAT

51440-MK7-671

Unavailable

16

RING, OIL SEAL STOP

51447-MK7-671

Unavailable

17

BOLT, FR. FORK (SHOWA)

51454-MN0-003

Unavailable

18

SEAL SET, FR. FORK

51490-MB9-782

$38.57

19

FORK ASSY., L. FR.

51500-MR6-671

Unavailable

20

CASE, L. (LOWER) (SHOWA)

51521-MK7-671

Unavailable

21

HOLDER, AXLE

51634-MG8-003

Unavailable

22

BOLT, SOCKET (6X8)

90111-MK7-671

Unavailable

23

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

23

BOLT, SOCKET (8MM) This part replaces 90116-ML4-003.

90116-KV3-701

$3.89

24

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

24

NUT, FLANGE (8MM)

90309-428-731

$3.35

26

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

27

DUST SEAL

91254-463-003

$22.51

28

O-RING (31.2X2.4)

91356-MK3-003

Unavailable

29

BOLT 2, STUD (8X32)

92900-08032-3E

Unavailable
