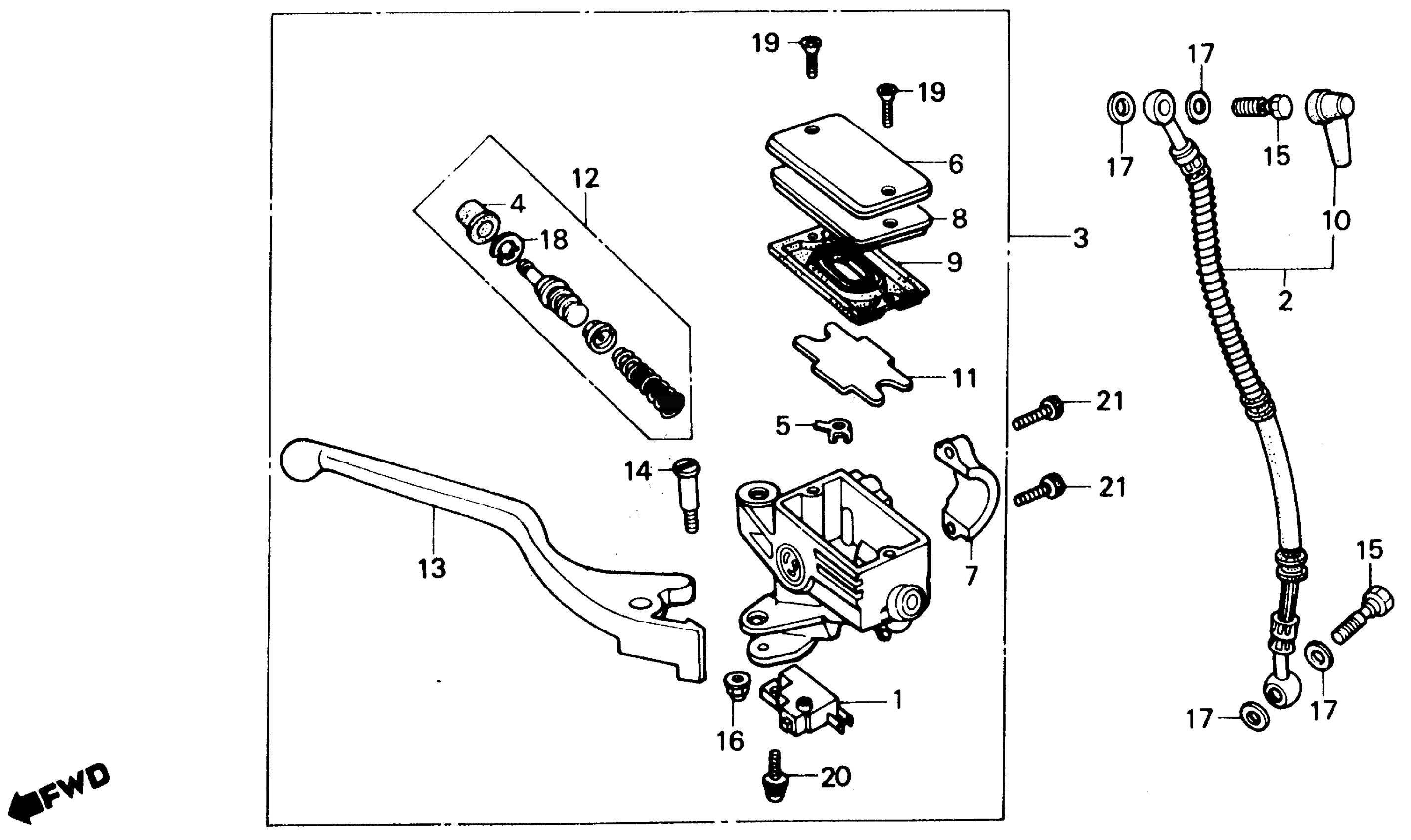

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MA5-671

$22.48

2

HOSE, FR. BRAKE (NOT AVAILABLE)

45126-MR6-671

Unavailable

3

MASTER CYLINDER ASSY., FR. BRAKE (NA USE ALT:45510-MR6-405)

45500-MR6-671

Unavailable

4

BOOT

45504-410-003

$11.17

5

PROTECTOR

45512-MA6-006

$4.09

6

CAP, MASTER CYLINDER (NOT AVAILABLE)

45513-MR6-671

Unavailable

7

HOLDER, MASTER CYLINDER

45517-MR6-671

Unavailable

8

PLATE, DIAPHRAGM

45518-MB4-671

$11.13

9

DIAPHRAGM

45520-MA5-672

$16.64

10

BOOT, MASTER CYLINDER

45522-422-000

$7.99

11

FLOAT, FR. MASTER CYLINDER

45523-MG9-006

Unavailable

12

MASTER CYLINDER SET

45530-471-831

$36.42

13

LEVER, R. HANDLE (COO) This part replaces 53175-ML5-006.

53175-MFR-305

$17.22

14

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

Unavailable

15

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$10.11

15

BOLT, OIL (10X22)

90145-KM3-751

$10.11

16

NUT, CAP (6MM)

90201-415-000

Unavailable

17

WASHER, OIL BOLT

90545-300-000

$5.79

18

CIRCLIP

90651-MA5-671

$2.38

19

SCREW, FLAT (4X12)

93600-04012-1A

$0.82

20

SCREW-WASHER (4X12)

93893-04012-07

$1.32

20

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

21

BOLT, SOCKET (6X22)

96600-06022-10

$1.94

21

BOLT, SOCKET (6X22) This part replaces 96700-06022-10.

96600-06022-10

$1.94
