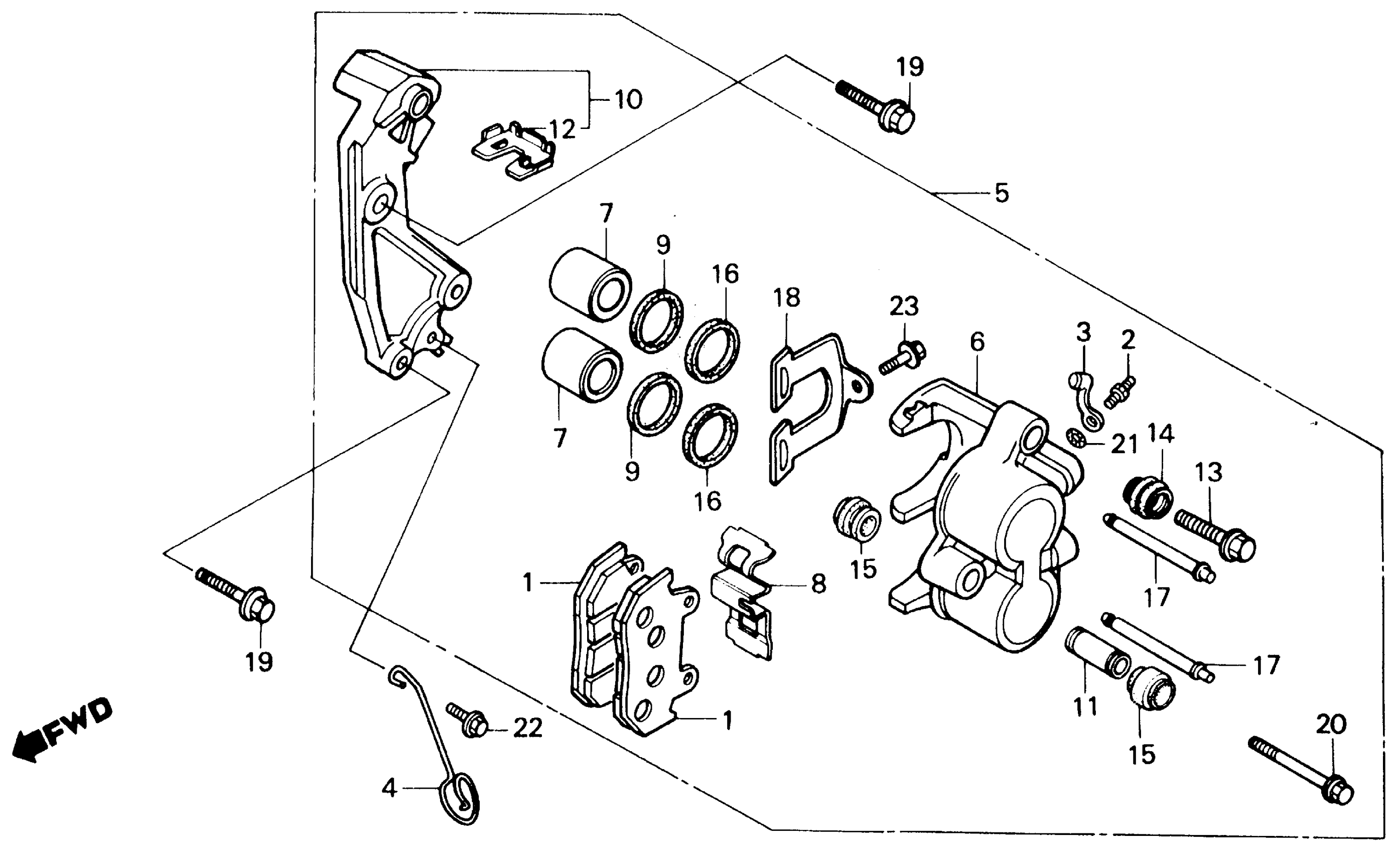

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET This part replaces 06455-MA3-405.

06435-MC7-405

Unavailable

NI

PAD SET This part replaces 431A0-MA3-004.

06435-MC7-405

Unavailable

1

PAD, FR. This part replaces 43105-MJ6-724.

45105-MM9-782

$24.40

2

SCREW, BLEEDER

43352-MG9-006

$5.44

3

CAP, BLEEDER This part replaces 43353-MG9-006.

43353-461-771

$5.05

3

CAP, BLEEDER This part replaces 43353-443-761.

43353-461-771

$5.05

3

CAP, BLEEDER

43353-461-771

$5.05

4

CLAMP, SPEEDOMETER CABLE

44832-ME2-000

$9.67

5

CALIPER ASSY., L. FR.

45100-MR6-671

Unavailable

6

CALIPER, L. (NISSIN) (NOT AVAILABLE)

45101-MN0-016

Unavailable

7

PISTON

45107-MA3-006

$50.26

8

SPRING, PAD

45108-MA3-006

$6.28

9

DUST SEAL

45109-166-006

$6.41

10

BRACKET, L. FR. BRAKE (NOT AVAILABLE)

45110-MK7-671

Unavailable

11

SLEEVE

45111-MA3-006

$13.38

12

RETAINER, BRACKET

45112-445-631

$8.98

13

PIN, BOLT

45131-MA3-006

$17.59

14

BOOT B

45133-MA3-006

$5.46

15

BOOT, PIN

45133-166-016

$3.85

16

SEAL, PISTON

45209-166-006

$8.64

17

PIN, HANGER

45215-MA3-006

$12.77

18

PLATE

45217-MA3-006

$4.45

19

BOLT, SPECIAL FLANGE (10X40) This part replaces 90124-KR3-000.

90101-MAA-000

$11.41

20

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

21

O-RING (5.8X1.9) (NISSIN)

91355-MG9-006

$3.15

22

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

22

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

23

BOLT, FLANGE (6X10)

96001-06010-07

$1.62
