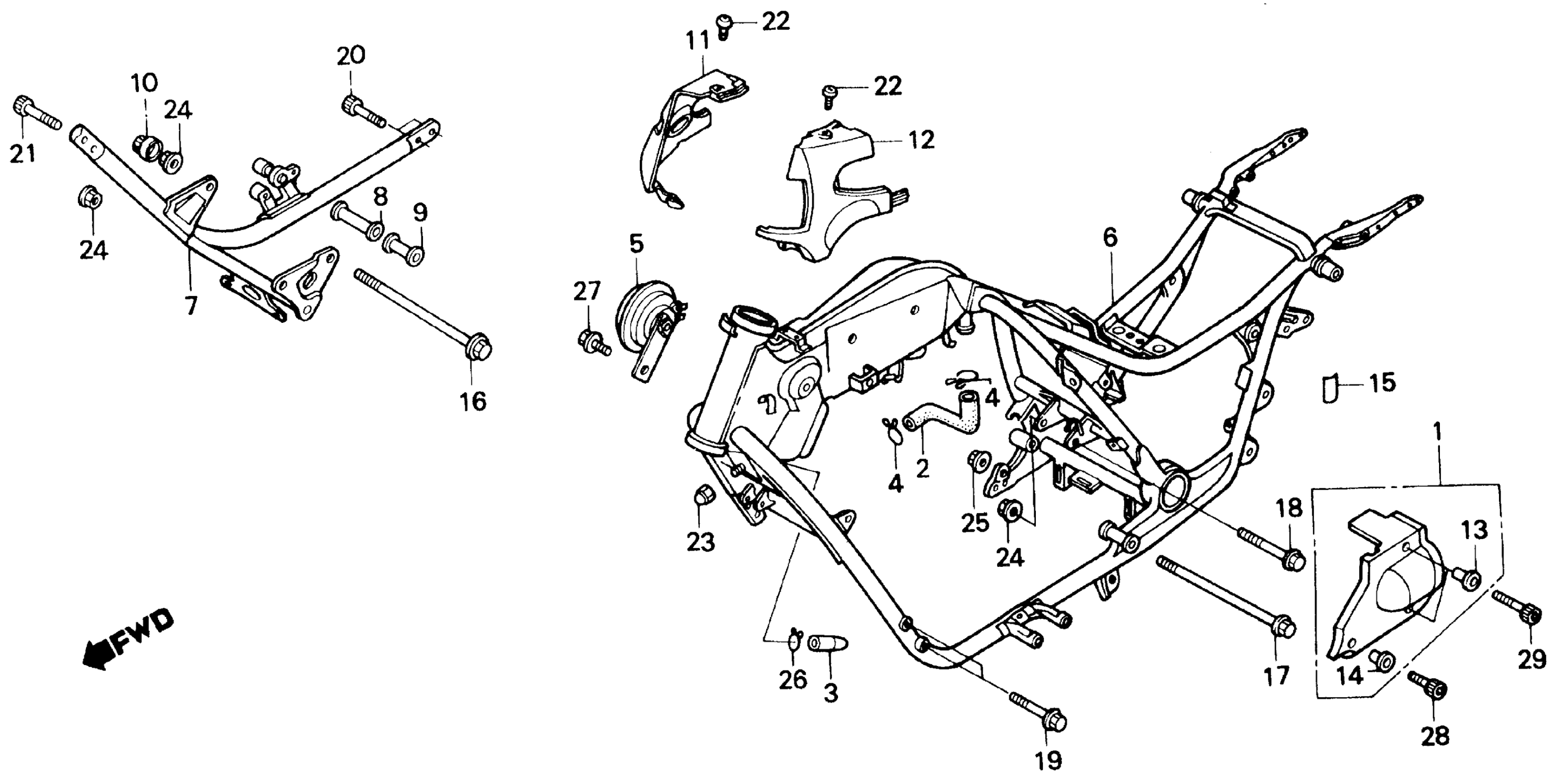

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 FRAME Diagram
#
Description
Price
1
COVER, L. RR.
11341-MR6-670
Unavailable
2
TUBE, BREATHER
17225-MK7-000
Unavailable
3
TUBE, DRAIN
17358-MG7-000
Unavailable
5
HORN ASSY. (HIGH) This part replaces 38110-MK7-671.
38110-ML5-000
Unavailable
5
HORN ASSY. (HIGH)
38110-ML5-000
Unavailable
6
FRAME *NH1* (BLACK)
50100-MR6-670ZA
Unavailable
7
PIPE, JOINT *NH1* (BLACK)
50174-MK7-000ZA
Unavailable
8
COLLAR, R. FR. ENGINE (UPPER)
50200-ME9-000
Unavailable
10
CAP, FR. ENGINE HANGER (NOT AVAILABLE)
50311-MA1-730
Unavailable
11
COVER, R. FR. SIDE (NOT AVAILABLE)
63500-MK7-000
Unavailable
12
COVER, L. FR. SIDE
63600-MK7-000
Unavailable
13
COLLAR A, FAIRING SETTING
64531-GE3-000
Unavailable
14
COLLAR
64630-KK4-000
Unavailable
15
LABEL, HELMET HOLDER
87511-KR3-670
Unavailable
16
BOLT, FLANGE (10X235)
90111-MG8-000
Unavailable
17
BOLT, FLANGE (12X260)
90112-MR6-670
Unavailable
19
BOLT, FLANGE (8X57)
90125-428-900
Unavailable
20
BOLT, SOCKET (10X30)
90143-MK7-000
Unavailable
21
BOLT, SOCKET (10X30)
90152-MB0-000
Unavailable
22
SCREW, SPECIAL (6X10)
90190-MJ8-000
Unavailable
