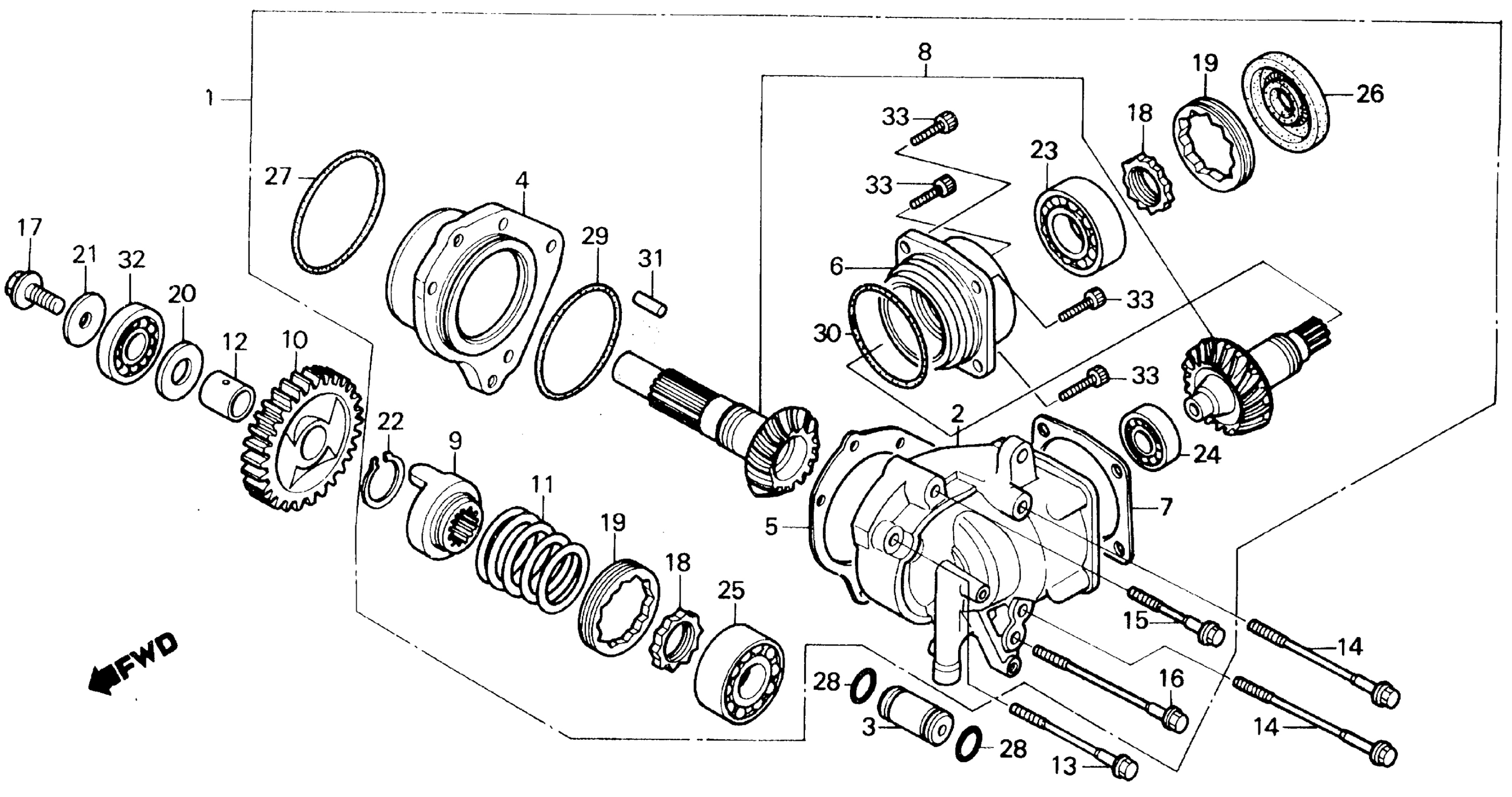

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 CROSS SHAFT Diagram

#

Description
Price

1

CASE ASSY., SIDE GEAR

21100-MR6-670

Unavailable

2

CASE, SIDE GEAR

21200-MK7-670

Unavailable

3

ORIFICE, SIDE GEAR CASE

21215-ME9-000

$9.61

4

HOLDER, FINAL DRIVESHAFT BEARING

21281-MK7-670

Unavailable

5

SHIM, FINAL DRIVESHAFT (0.40)

21311-MG8-000

Unavailable

5

SHIM, FINAL DRIVESHAFT (0.45)

21312-MG8-000

Unavailable

5

SHIM, FINAL DRIVESHAFT (0.50)

21313-MG8-000

Unavailable

5

SHIM, FINAL DRIVESHAFT (0.55)

21314-MG8-000

Unavailable

5

SHIM, FINAL DRIVESHAFT (0.60)

21315-MG8-000

Unavailable

6

HOLDER, CROSS SHAFT BEARING

21371-MB0-000

Unavailable

7

SHIM, CROSS SHAFT (0.20)

21377-MB0-770

$23.13

7

SHIM, CROSS SHAFT (0.25)

21378-MB0-770

$22.13

7

SHIM, CROSS SHAFT (0.30)

21379-MB0-770

$22.13

7

SHIM, CROSS SHAFT (0.35)

21380-MB0-770

$22.13

7

SHIM, CROSS SHAFT (0.40)

21381-MB0-770

$25.25

7

SHIM, CROSS SHAFT (0.45)

21382-MB0-770

$25.25

7

SHIM, CROSS SHAFT (0.50)

21383-MB0-770

$25.25

7

SHIM, CROSS SHAFT (0.55)

21384-MB0-770

$25.25

7

SHIM, CROSS SHAFT (0.60)

21385-MB0-770

$25.25

8

SHAFT SET, CROSS (NOT AVAILABLE)

23200-MR6-670

Unavailable

9

LIFTER, DAMPER

23721-ME9-000

$76.34

10

GEAR, DAMPER SHAFT (29T)

23726-MR6-670

Unavailable

11

SPRING, DAMPER

23732-MK7-670

Unavailable

12

COLLAR (20X24X18.5)

23733-ME9-000

Unavailable

13

BOLT, UBS (8X60)

90029-MG8-000

Unavailable

14

BOLT, UBS (8X105)

90030-MG8-000

$8.25

15

BOLT, UBS (8X45)

90031-MG8-000

$4.36

16

BOLT, UBS (8X85)

90032-MG8-000

Unavailable

17

BOLT, SPECIAL (10MM)

90037-ME9-000

$7.25

18

NUT, LOCK (30MM)

90241-MB0-000

$21.10

19

NUT, LOCK (64MM)

90242-MB0-000

$32.52

20

WASHER, THRUST (20MM)

90451-426-000

$4.88

21

WASHER (10.2MM)

90459-438-000

$5.83

22

CIRCLIP (OUTER) (28MM)

90602-463-000

$3.64

23

BEARING, RADIAL BALL (5206) This part replaces 91008-300-008.

91012-MG7-003

$95.20

24

BEARING, BALL (6303) (KOYO)

91011-MB0-003

$30.64

24

BEARING, BALL (6303) (KOYO) This part replaces 91011-MB0-004.

91011-MB0-003

$30.64

25

BEARING, RADIAL BALL (5206)

91012-MG7-003

$95.20

26

OIL SEAL (25X66X8.5) (ARAI)

91205-MG7-003

$18.78

27

O-RING (69.5X2.25) (ARAI)

91300-MG7-003

Unavailable

28

O-RING (4.8X1.9) (NOK) O-RING (7.7X2.3) (ARAI) This part replaces 91307-422-000.

91313-MA6-005

$2.61

28

O-RING (4.8X1.9) (NOK)

91313-MA6-005

$2.61

29

O-RING (64.5X3) (ARAI)

91310-MG7-003

$9.98

30

O-RING (69.5X3) (ARAI)

91314-MG7-003

$9.24

31

PIN, DOWEL (10X20)

94302-10200

$2.46

32

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40

33

BOLT, SOCKET (8X22)

96700-08022-17

$2.02
