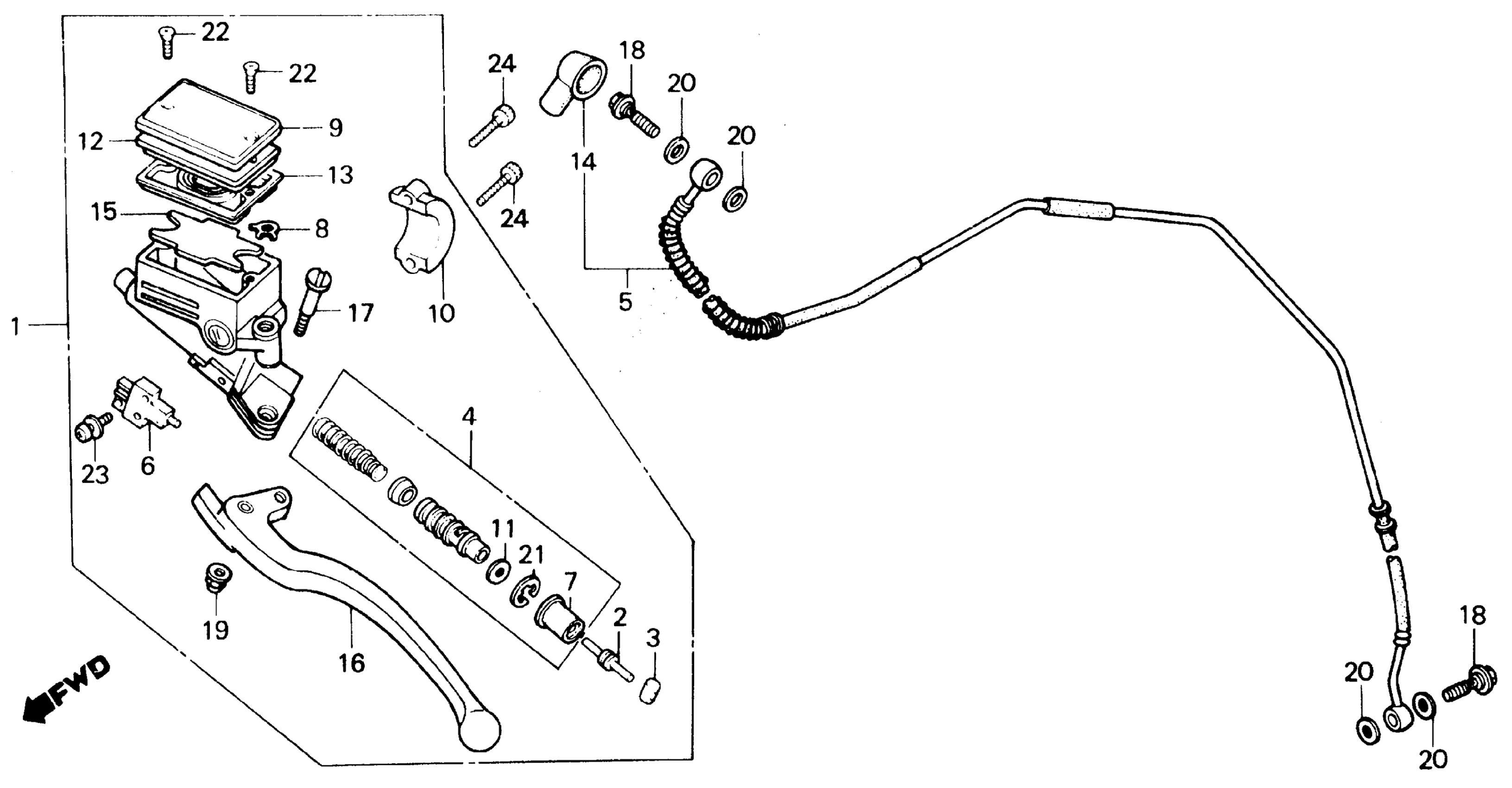

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY., CLUTCH (NOT AVAILABLE)

22880-MR6-671

Unavailable

2

ROD, PUSH

22884-MB0-006

$18.97

3

BUSH

22885-MB0-006

$11.88

4

PISTON SET, CLUTCH MASTER CYLINDER

22886-MB0-305

$68.24

5

PIPE, CLUTCH

22900-MR6-670

Unavailable

6

SWITCH ASSY., CLUTCH

35330-MB0-003

$16.71

7

BOOT

45504-410-003

$11.17

8

PROTECTOR

45512-MA6-006

$4.09

9

CAP, MASTER CYLINDER (NOT AVAILABLE)

45513-MR6-671

Unavailable

10

HOLDER, MASTER CYLINDER

45517-MR6-671

Unavailable

11

PLATE, STOPPER

45518-MB0-006

$1.79

12

PLATE, DIAPHRAGM

45518-MB4-671

$11.13

13

DIAPHRAGM

45520-MA5-672

$16.64

14

BOOT, MASTER CYLINDER

45522-422-000

$7.99

15

FLOAT, FR. MASTER CYLINDER

45523-MG9-006

Unavailable

16

LEVER, L. HANDLE This part replaces 53178-MJ0-921.

53178-MM5-006

$20.11

16

LEVER, L. HANDLE

53178-MM5-006

$20.11

17

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

Unavailable

18

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$10.11

18

BOLT, OIL (10X22)

90145-KM3-751

$10.11

19

NUT, CAP (6MM)

90201-415-000

Unavailable

20

WASHER, OIL BOLT

90545-300-000

$5.79

21

CIRCLIP (INNER) (18MM)

90651-377-003

$1.79

22

SCREW, FLAT (4X12)

93600-04012-1A

$0.82

23

SCREW-WASHER (4X12)

93893-04012-07

$1.32

23

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

24

BOLT, SOCKET (6X22)

96600-06022-10

$1.94

24

BOLT, SOCKET (6X22) This part replaces 96700-06022-10.

96600-06022-10

$1.94
