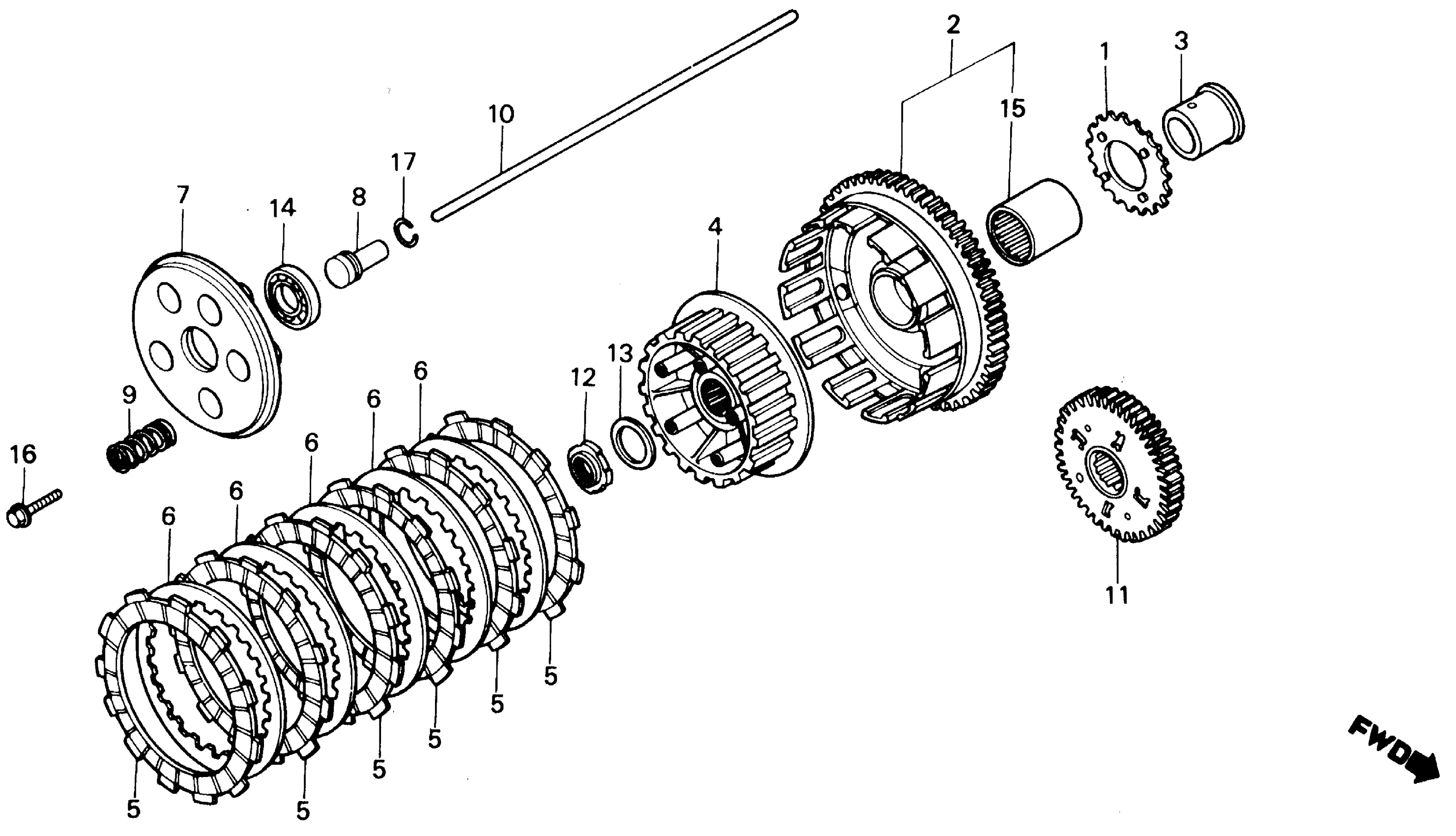

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 CLUTCH Diagram

#

Description
Price

1

SPROCKET, OIL PUMP DRIVE (26T) (NOT AVAILABLE)

15131-MB0-000

Unavailable

2

CLUTCH (OUTER)

22100-MR6-670

Unavailable

3

GUIDE, CLUTCH (OUTER)

22116-ME9-000

Unavailable

4

CENTER, CLUTCH This part replaces 22120-MB1-770.

22120-MN0-000

Unavailable

4

CENTER, CLUTCH

22120-MN0-000

Unavailable

5

DISK, CLUTCH FRICTION This part replaces 22201-MB0-003.

22201-MM5-000

$28.39

5

DISK, CLUTCH FRICTION

22201-MM5-000

$28.39

6

PLATE, CLUTCH

22321-MG8-000

$15.44

6

PLATE, CLUTCH This part replaces 22321-283-000.

22321-MG8-000

$15.44

7

PLATE, CLUTCH PRESSURE

22350-MK3-770

Unavailable

8

PIECE, CLUTCH JOINT

22366-KE8-000

Unavailable

9

SPRING, CLUTCH This part replaces 22401-KB4-670.

22401-KT0-000

$5.10

9

SPRING, CLUTCH

22401-KT0-000

$5.10

10

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22850-ME9-000

Unavailable

11

GEAR ASSY., PRIMARY DRIVE

23110-MR6-670

Unavailable

12

NUT, LOCK (22MM) This part replaces 90231-MK7-670.

90231-MZ7-000

$11.54

13

WASHER, SPRING (22MM)

90432-MB0-010

$9.93

14

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40

15

BEARING, NEEDLE (35X42X30) (TOYO)

91024-MB0-003

$86.11

15

BEARING, NEEDLE (35X42X30) (TOYO) This part replaces 91024-MB0-004.

91024-MB0-003

$86.11

16

BOLT-WASHER (6X20)

93404-06020-08

$1.62

17

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
