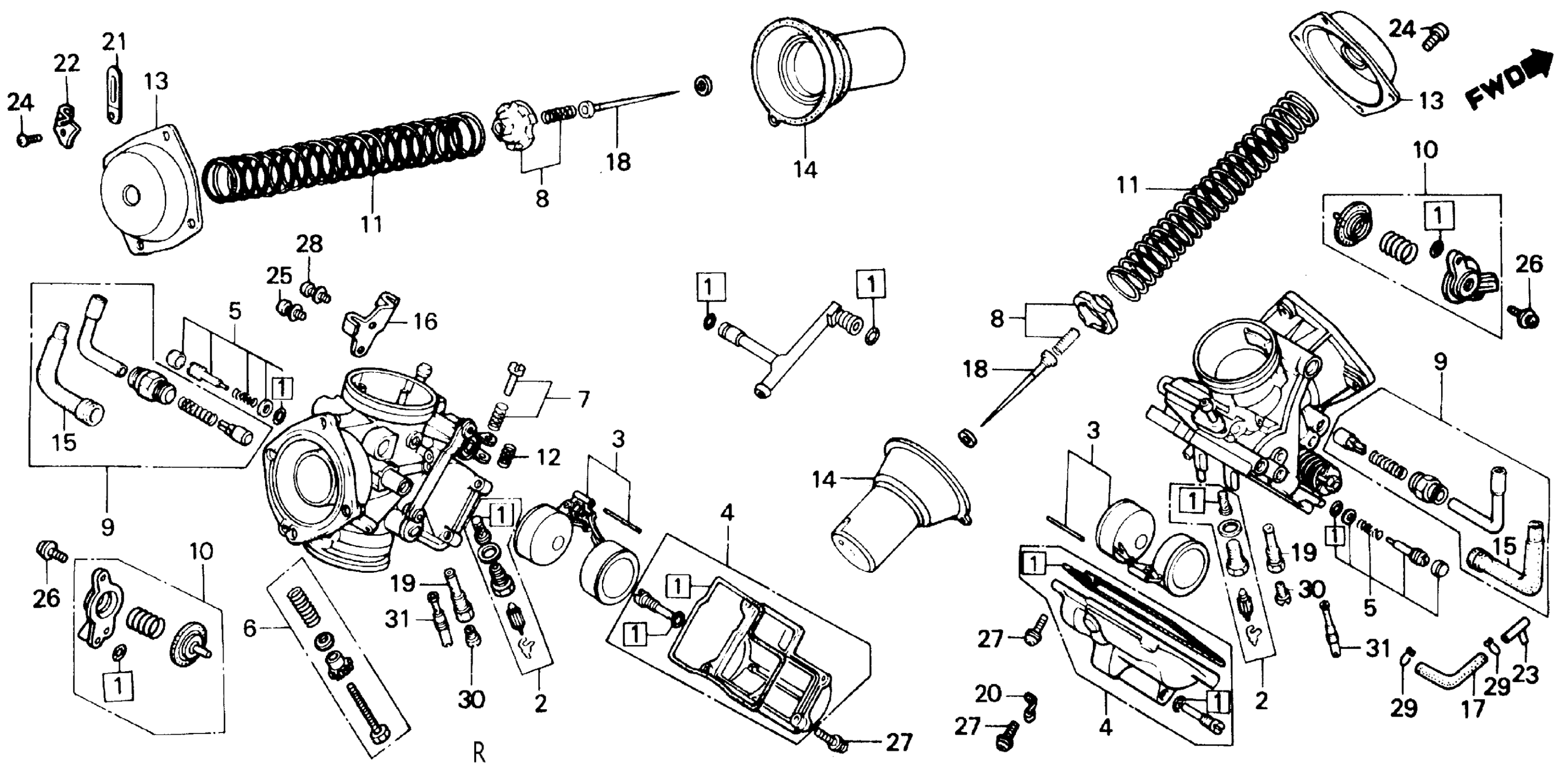

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 CARBURETOR (COMPONENTS) Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-MK7-771.

16010-MR6-671

Unavailable

1

GASKET SET

16010-MR6-671

Unavailable

2

VALVE SET, FLOAT

16011-MR6-671

$63.64

3

FLOAT SET

16013-MAH-000

$49.54

3

FLOAT SET This part replaces 16013-ML7-004.

16013-MAH-000

$49.54

4

CHAMBER SET, FLOAT This part replaces 16015-MG9-691.

16015-MBL-731

Unavailable

4

CHAMBER SET, FLOAT This part replaces 16015-MR6-671.

16015-MBL-731

Unavailable

5

SCREW SET A This part replaces 16016-MB0-671.

16016-ME3-003

Unavailable

5

SCREW SET A

16016-ME3-003

Unavailable

5

SCREW SET A This part replaces 16016-ME9-671.

16016-ME3-003

Unavailable

6

SCREW SET This part replaces 16028-KM9-711.

16028-MAH-000

$55.95

6

SCREW SET

16028-MAH-000

$55.95

6

SCREW SET This part replaces 16028-ME9-671.

16028-MAH-000

$55.95

7

SCREW SET C

16029-MB0-671

Unavailable

8

PLATE SET, VALVE (NOT AVAILABLE) This part replaces 16037-MK7-771.

16037-MK7-772

Unavailable

8

PLATE SET, VALVE

16037-MK7-772

Unavailable

9

STARTER VALVE SET This part replaces 16046-MR6-671.

16046-KFK-000

Unavailable

10

VALVE SET, AIR CUT

16048-MR6-671

Unavailable

11

SPRING

16050-MK7-771

Unavailable

12

SPRING

16052-ME9-672

$5.67

13

TOP

16107-MM8-004

Unavailable

14

PISTON, VACUUM (NOT AVAILABLE)

16111-MR6-671

Unavailable

15

CAP, CABLE SEALING

16118-ME9-671

$14.18

16

STAY, WIRE

16119-ML5-004

Unavailable

18

NEEDLE, JET

16151-MR6-711

Unavailable

19

HOLDER, NEEDLE JET This part replaces 16165-ME9-671.

16165-MZ8-R10

Unavailable

20

BINDER

16179-MG8-671

Unavailable

22

BINDER

16191-ML5-004

Unavailable

24

SCREW, PAN (4X10)

93500-04010-0A

$1.49

25

SCREW-WASHER (4X8)

93892-04008-00

$1.49

26

SCREW-WASHER (4X10)

93892-04010-08

$1.49

27

SCREW-WASHER (4X16)

93892-04016-00

$1.49

28

SCREW-WASHER (5X12)

93892-05012-00

$1.49

30

JET (#112)

99101-GHB-1120

$7.98

30

JET (#112) This part replaces 99101-393-1120.

99101-GHB-1120

$7.98

31

JET, SLOW (#38) This part replaces 99103-427-0380.

99103-MY0-0380

$20.38
