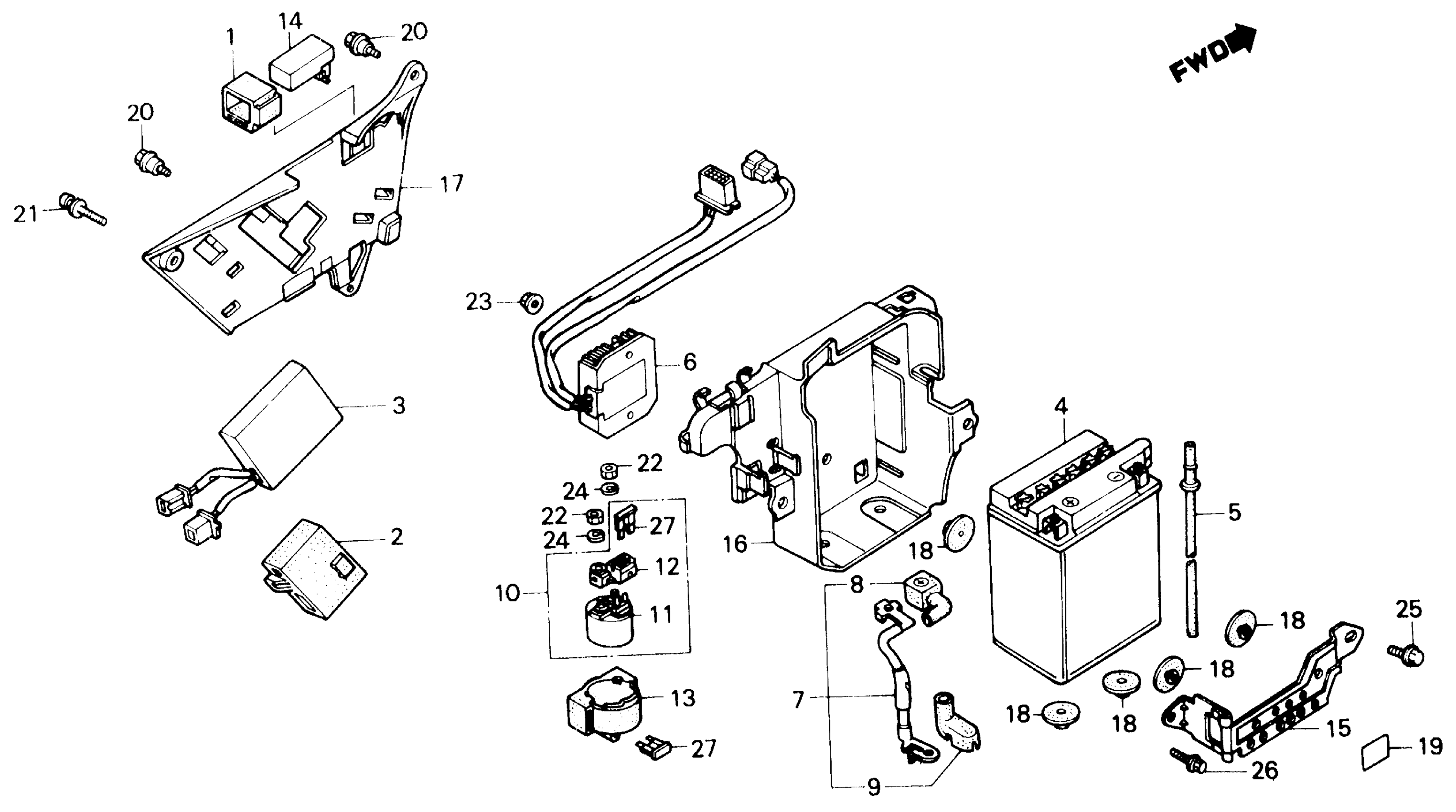

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 BATTERY Diagram

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-GE8-000.

30401-GB4-770

$5.72

RUBBER, SPARK UNIT

30405-MR6-000

Unavailable

MODULE, IGNITION CONTROL (CDI)

30410-MR6-006

Unavailable

BATTERY (YB14-B2) This part replaces 31500-MK7-672.

31500-ML5-692AH

Unavailable

BATTERY (YB14-B2) This part replaces 31500-MK7-674.

31500-ML5-692AH

Unavailable

BATTERY (YB14-B2) This part replaces 31500-ML5-692.

31500-ML5-692AH

Unavailable

TUBE This part replaces 31502-KB1-920.

31502-KG0-405

Unavailable

RECTIFIER ASSY., REGULATE

31600-MR6-000

Unavailable

CABLE, STARTER BATTERY (NOT AVAILABLE)

32401-MK7-000

Unavailable

COVER A, BATTERY TERMINAL

32412-MK7-000

Unavailable

COVER A, MAGNETIC SWITCH (NOT AVAILABLE)

32415-MK7-000

Unavailable

SWITCH ASSY., STARTER MAGNETIC

35850-MF5-751

$140.48

SWITCH, STARTER MAGNETIC

35851-MF5-751

$106.43

HOLDER ASSY., FUSE

35855-MF5-751

$35.11

RUBBER, SHOCK ABSORBER

35856-MF5-751

$10.03

CHECK UNIT, PILOT LAMP

37640-MB1-701

Unavailable

BAND, BATTERY

50320-MK7-000

Unavailable

TRAY, BATTERY

50325-MK7-000

Unavailable

PLATE, L. ELECTRIC

50350-MK7-010

Unavailable

RUBBER, BATTERY BOX

83618-323-000

$2.47

MARK, BATTERY CAUTION (NOT AVAILABLE)

87506-MK7-670

Unavailable

BOLT, FLANGE (6MM)

90111-187-000

$5.59

SCREW-WASHER (6X10)

93891-06010-07

Unavailable

NUT, HEX. (6MM)

94002-06080-0S

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

WASHER, SPRING (6MM)

94111-06800

$1.49

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

FUSE, BLADE (30A)

98200-33000

$1.49
