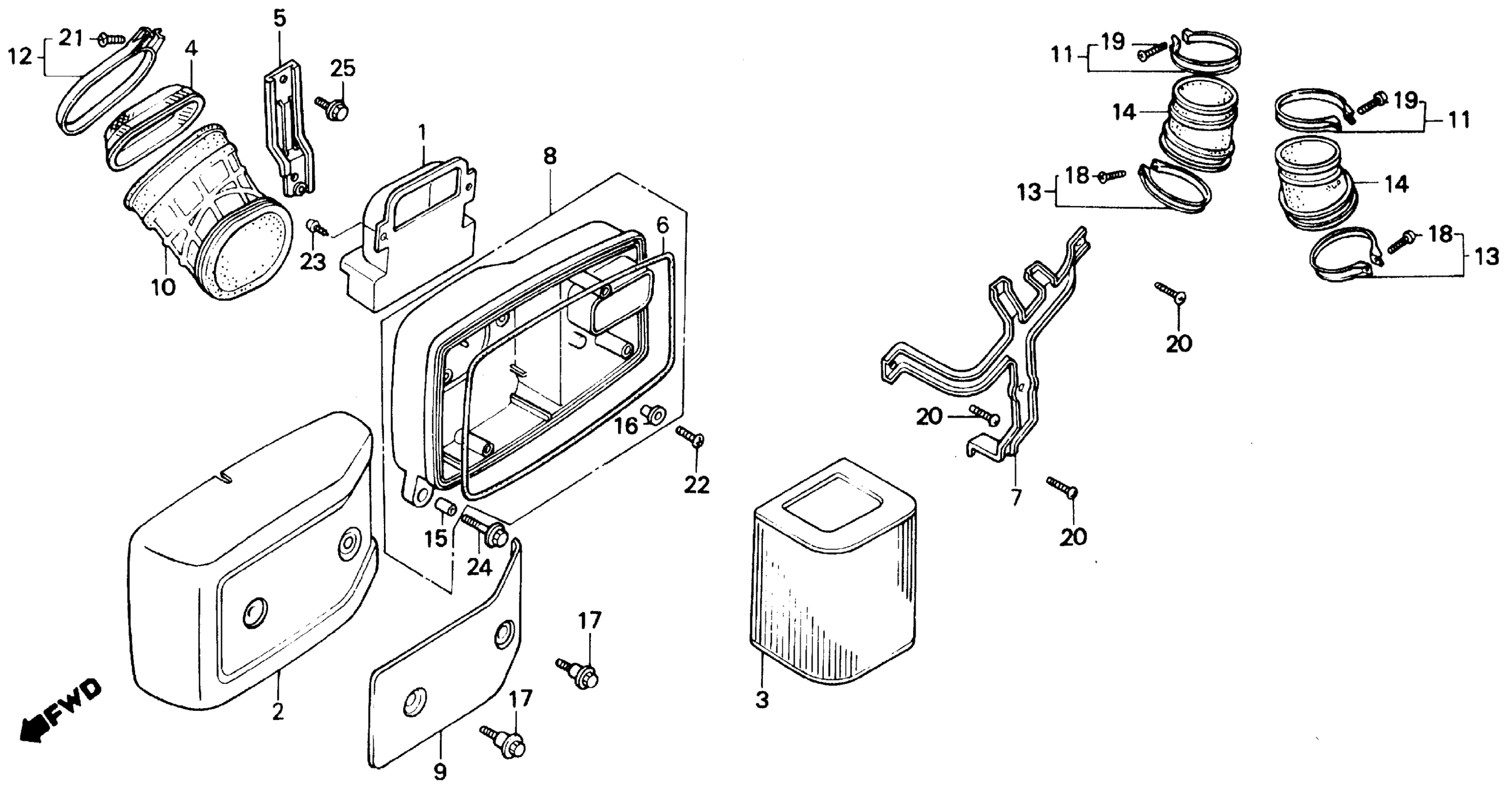

Honda VT800CA (88) SHADOW 800, USA, VIN# 1HFRC320-JA000001 AIR CLEANER Diagram

#

Description
Price

1

DUCT, AIR CLEANER

17213-MK7-010

Unavailable

2

COVER, AIR CLEANER HOUSING

17214-MK7-000

Unavailable

3

ELEMENT, AIR CLEANER

17215-MK7-770

Unavailable

4

TRAP, FLAME

17216-MK7-000

Unavailable

5

STAY, AIR CLEANER HOUSING

17219-MK7-770

Unavailable

6

SEAL, AIR CLEANER COVER This part replaces 17222-MK7-000.

17222-MN4-405

$6.80

6

SEAL, AIR CLEANER COVER

17222-MN4-405

$6.80

7

STAY, AIR CLEANER COVER (NOT AVAILABLE)

17223-MK7-000

Unavailable

8

HOUSING, AIR CLEANER

17230-MK7-770

Unavailable

9

PLATE, AIR CLEANER

17235-MR6-670

Unavailable

10

TUBE, AIR CLEANER CONNECTING

17255-MK7-770

Unavailable

11

BAND, AIR CLEANER CONNECTING TUBE (50) This part replaces 17255-402-700.

95018-50250

$7.06

11

BAND, AIR CLEANER CONNECTING TUBE (50) This part replaces 90652-GHB-680.

95018-50250

$7.06

11

BAND, AIR CLEANER CONNECTING TUBE (50)

95018-50250

$7.06

12

BAND, AIR CLEANER CONNECTING TUBE

17256-MK7-000

Unavailable

13

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17257-HA0-000.

95018-60250

$5.81

14

TUBE B, AIR CLEANER CONNECTING (NOT AVAILABLE)

17257-MR6-670

Unavailable

15

COLLAR, CONTROL VALVE

36052-657-300

Unavailable

16

COLLAR, FAIRING SETTING

64531-MA6-720

Unavailable

17

BOLT, SPECIAL (6MM)

90118-MR6-670

Unavailable

18

SCREW, PAN (4X25)

93500-04025-0G

$0.59

19

SCREW, PAN (4X32)

93500-04032-0A

Unavailable

20

SCREW, PAN (5X12)

93500-05012-0A

$0.83

21

SCREW, PAN (5X20)

93500-05020-0G

$0.75

22

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.09

22

SCREW, PAN (6X25)

93500-06025-0A

$1.09

23

SCREW, TAPPING (5X12)

93901-25220

$0.80

24

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.64

24

BOLT, FLANGE (6X25)

95701-06025-07

$1.64

25

BOLT, FLANGE (6X12)

95701-06012-00

$1.81
