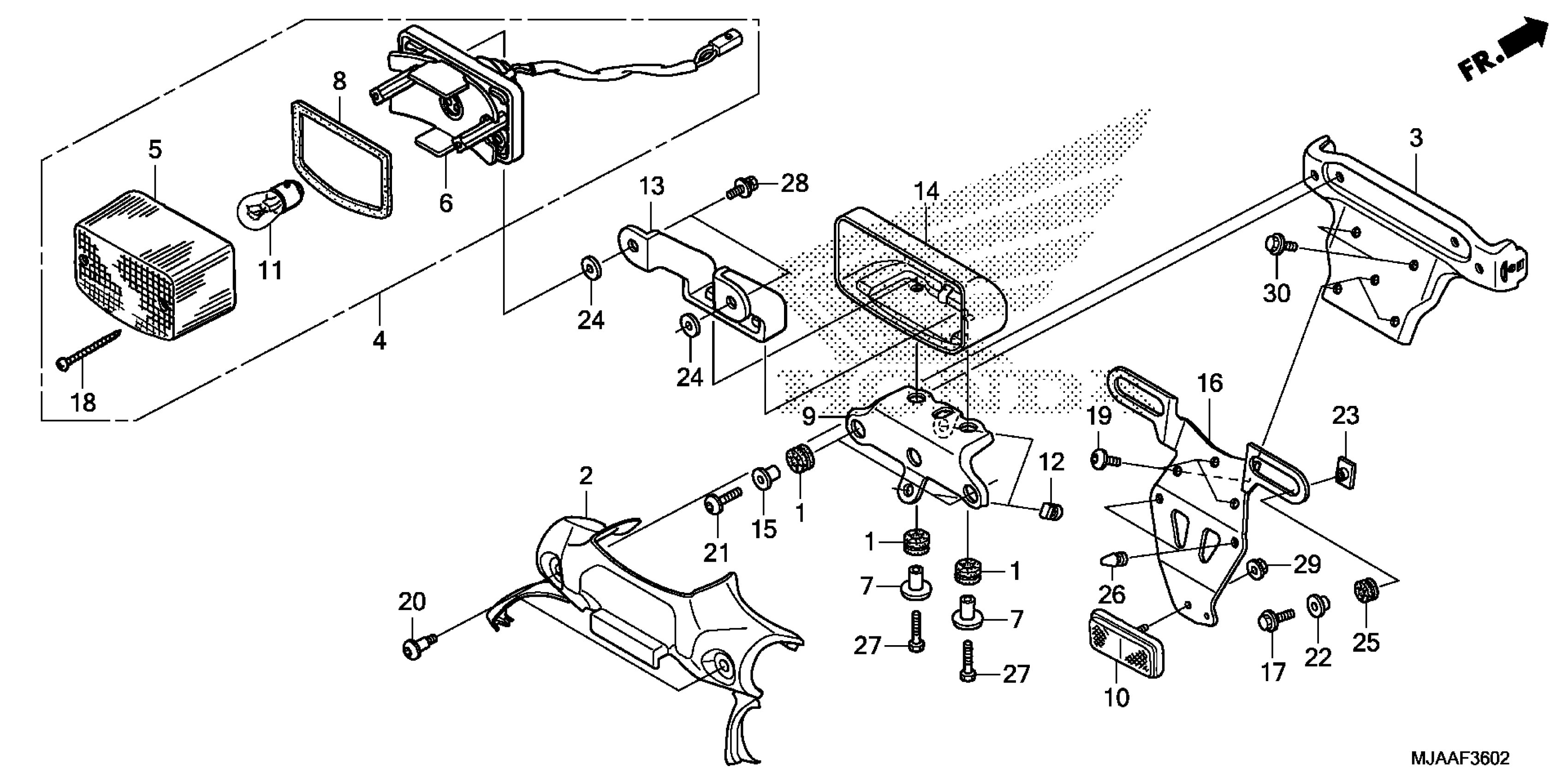

Honda VT750RSAC (13) SHADOW RS, JPN, VIN# JH2RC581-DK300001 TAILLIGHT (3) Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.80

2

COVER, TURN SIGNAL STAY

33425-MGR-670

$15.44

3

STAY, RR. TURN SIGNAL

33490-MGR-670

$56.06

4

TAILLIGHT UNIT (COO)

33701-MGR-305

$104.47

5

LENS, TAILLIGHT (COO) (STANLEY) This part replaces 33702-MC4-671.

33702-MGR-305

$28.19

5

LENS, TAILLIGHT (COO) (STANLEY)

33702-MGR-305

$28.19

6

SOCKET, TAILLIGHT

33703-MGR-671

$58.88

7

COLLAR, TAILLIGHT MOUNTING

33707-MGR-670

$4.63

8

GASKET, TAILLIGHT LENS

33709-KB7-003

$4.02

9

STAY, TAILLIGHT

33710-MGR-670

$13.24

10

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$14.85

11

BULB, TAILLIGHT (12V 32/3CP) (STANLEY)

34906-425-771

$4.20

12

PLUG, HOLE

50318-041-600

$2.04

13

STAY, TAILLIGHT

80128-MCR-A00

$6.96

14

COVER, TAILLIGHT

80350-MGR-670

$49.94

15

COLLAR, COVER MOUNTING

83505-KGB-610

$2.62

16

BRACKET, NUMBER PLATE

84701-MGR-670

Unavailable

17

BOLT, FLANGE (6X16) (NSHF)

90005-GHB-630

$1.60

18

SCREW, TAPPING (4X40)

90105-GAM-000

$4.69

19

SCREW, PAN (6X12)

90106-MAV-000

$2.01

20

BOLT, SPECIAL (6X17)

90106-MGR-670

$2.65

21

BOLT, SPECIAL (6X22)

90112-MBB-000

$3.31

22

COLLAR, REFLECTOR SETTING

90129-463-770

$3.00

23

NUT, SPECIAL (6X7)

90303-HA0-680

$3.67

24

WASHER, PLAIN (6MM)

90581-GB5-610

$2.44

25

RUBBER, CONTROL BOX

90852-898-000

Unavailable

26

PLUG, CONE TYPE

90899-422-610

$1.84

27

BOLT, HEX. (5X25)

92101-05025-0G

$0.72

28

BOLT-WASHER (5X16)

93402-05016-08

$1.28

29

NUT, FLANGE (5MM)

94050-05000

$1.21

30

BOLT, FLANGE (6X10)

95701-06010-07

$1.50
