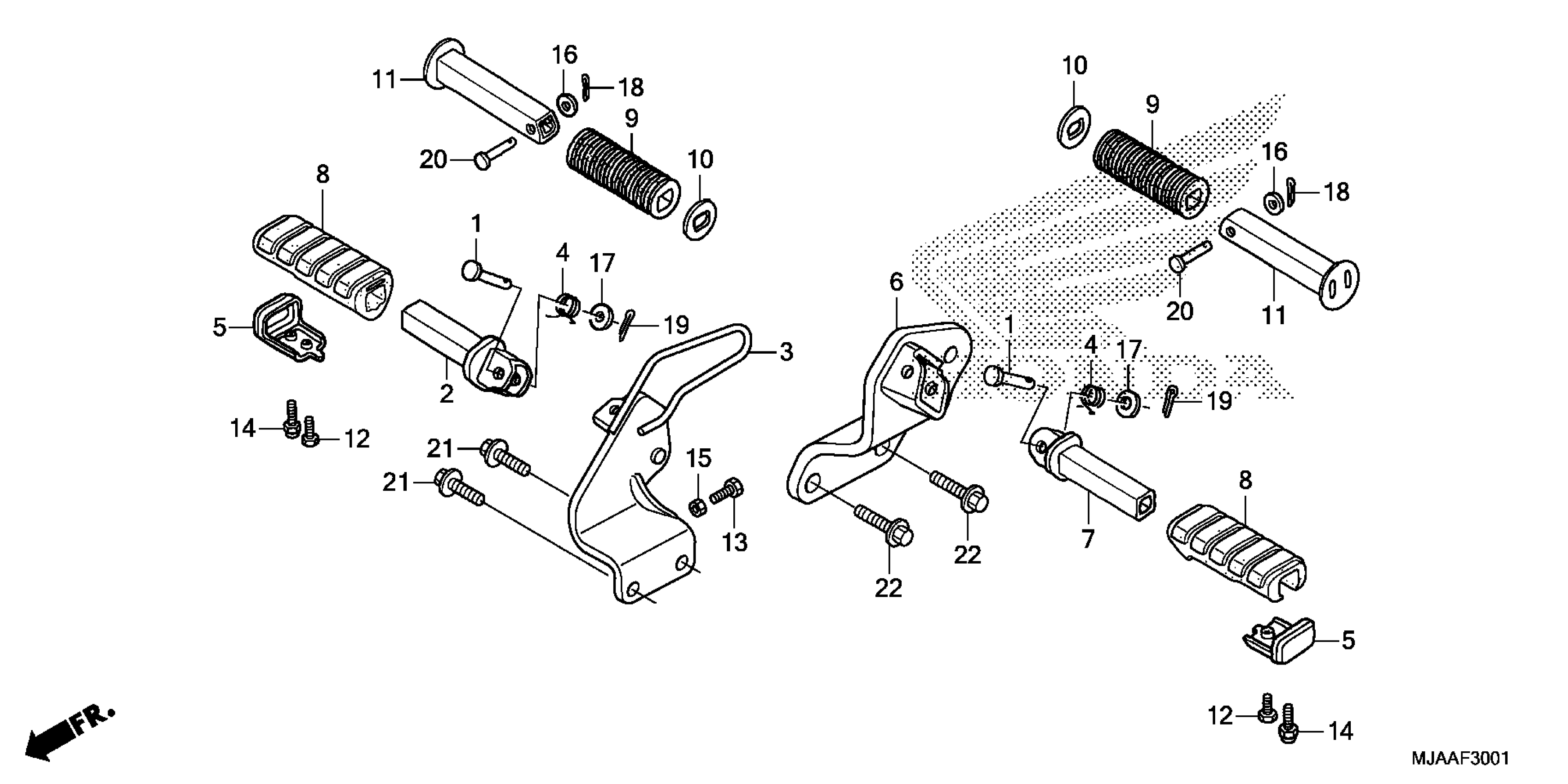

Honda VT750RSAC (13) SHADOW RS, JPN, VIN# JH2RC581-DK300001 STEP (2) Diagram

#

Description
Price

1

PIN, STEP BAR JOINT

50603-033-010

$3.06

2

BAR, R. STEP (COO) This part replaces 50612-MEG-000.

50612-MEG-305

$16.20

2

BAR, R. STEP (COO)

50612-MEG-305

$16.20

3

BRACKET, R. MAIN STEP

50615-MGR-670

$85.41

4

SPRING, STEP RETURN

50617-MB1-700

$5.54

5

STOPPER, STEP RUBBER

50619-MGR-670

$17.08

6

BRACKET, L. MAIN STEP

50625-MGR-670

$65.21

7

BAR, L. STEP (COO) This part replaces 50642-MEG-000.

50642-MEG-305

$15.34

7

BAR, L. STEP (COO)

50642-MEG-305

$15.34

8

RUBBER, MAIN STEP (COO) This part replaces 50661-MEG-000.

50661-MEG-305

$5.81

8

RUBBER, MAIN STEP (COO)

50661-MEG-305

$5.81

9

RUBBER, PILLION STEP (COO)

50710-MFR-305

$23.79

10

WASHER, PILLION FOOTPEG

50712-413-000

$3.31

11

BAR, R. PILLION STEP This part replaces 50715-MGR-305.

50715-MGR-670

$17.79

11

BAR, R. PILLION STEP

50715-MGR-670

$17.79

12

BOLT, HEX. (6X12) BOLT, FLANGE (6X12)

92101-06012-0A

$1.31

13

BOLT, HEX. (6X18)

92101-06018-0A

$1.37

14

BOLT, CAP (6X12)

92501-06012-0A

$2.22

15

NUT, HEX. (6MM)

94002-06000-0S

$1.21

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

16

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

17

WASHER, PLAIN (8MM)

94101-08000

$0.76

18

PIN, COTTER (1.6X12)

94201-16120

$0.96

19

PIN, COTTER (2.0X15)

94201-20150

$0.96

20

PIN A, PILLION STEP

95015-81000

$2.04

21

BOLT, FLANGE (10X25)

95701-10025-07

$1.31

22

BOLT, FLANGE (10X40)

95701-10040-07

$1.75
