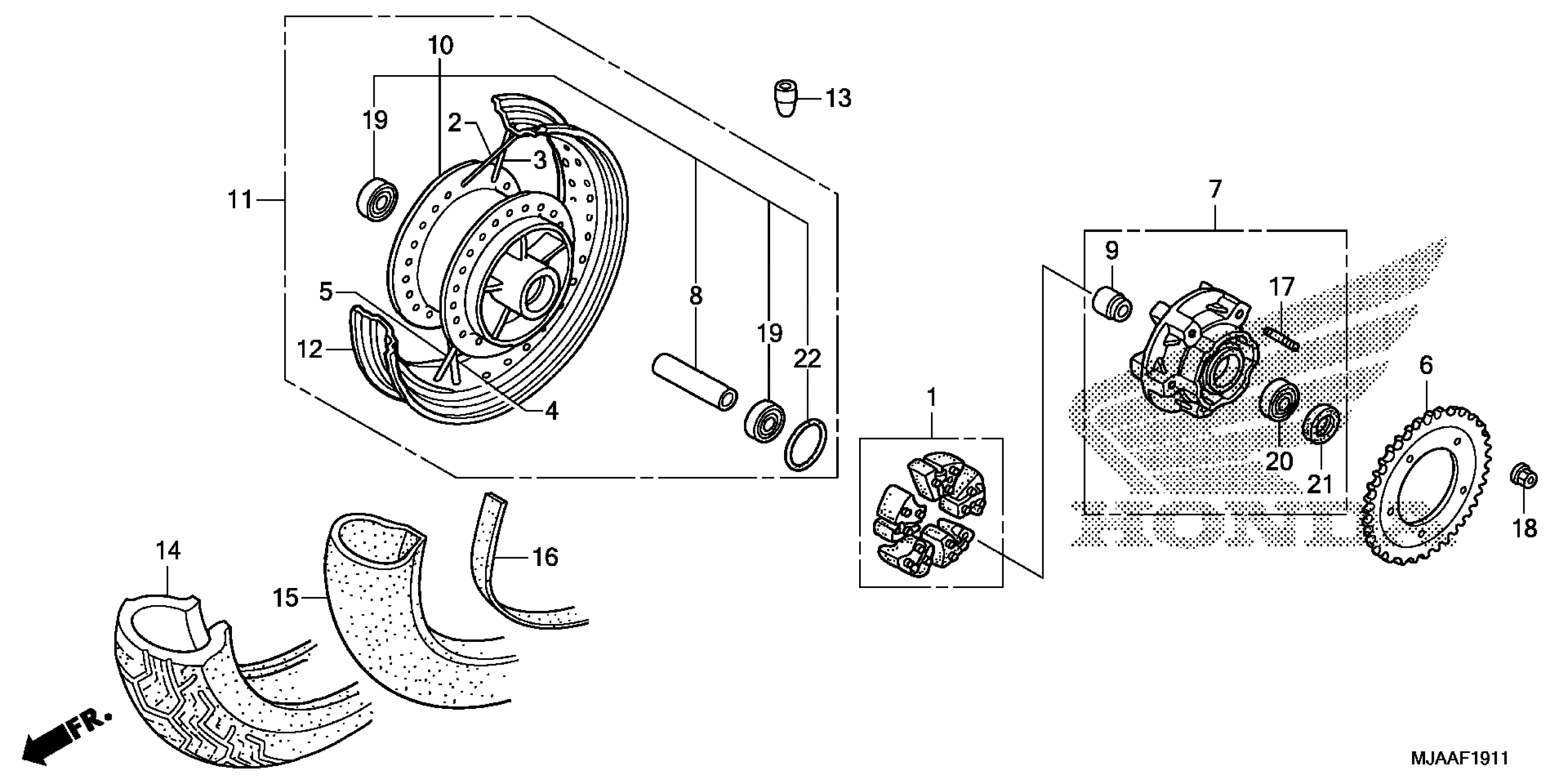

Honda VT750RSAC (13) SHADOW RS, JPN, VIN# JH2RC581-DK300001 REAR WHEEL (2) Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MBA-000

$28.10

2

SPOKE SET A, RR. (R. INSIDE)

06420-MGR-670

$3.24

3

SPOKE SET B, RR. (R. OUTSIDE)

06421-MGR-670

$4.47

4

SPOKE SET C, RR. (L. INSIDE)

06422-MGR-670

$4.47

5

SPOKE SET D, RR. (L. OUTSIDE)

06423-MGR-670

$3.24

6

SPROCKET, FINAL DRIVEN (38T) | Use from Frame SN DK300391.

41201-MJA-670

$78.19

7

FLANGE SUB-ASSY., RR. DRIVEN

42615-MBA-000

$228.46

8

COLLAR, RR. AXLE DISTANCE (FR.)

42620-MW0-010

$31.43

9

COLLAR B, RR. WHEEL DISTANCE

42625-MV4-000

$24.65

10

HUB SUB-ASSY., RR.

42635-MBA-000

$435.94

11

WHEEL SUB-ASSY., RR.

42650-MGR-670

$747.97

12

RIM, RR. WHEEL

42701-MGR-671

$200.10

13

WEIGHT, BALANCE (15G)

42704-MEG-003

$7.71

13

WEIGHT, BALANCE (20G)

42705-MEG-003

$7.71

14

TIRE, RR. This part replaces 42711-MGR-671.

42711-MGR-675

$218.07

14

TIRE, RR. (METZELER) (150/80 B 16 M/C 71H) (NA USE ALT:42711-MGR-671)

42711-MGR-672

Unavailable

14

TIRE, RR. This part replaces 42711-MGR-673.

42711-MGR-675

$218.07

14

TIRE, RR.

42711-MGR-675

$218.07

15

TUBE, TIRE (DUNLOP)

42712-MGR-671

$34.60

15

TUBE, TIRE (METZELER) (NA USE ALT:42712-MGR-671)

42712-MGR-672

Unavailable

16

FLAP, TIRE (DUNLOP)

42713-MGR-671

Unavailable

16

BAND, RIM (METZELER)

42713-MGR-672

$12.19

17

BOLT 2, STUD (12X25)

90102-MAS-000

$3.83

18

NUT, U FLANGE (12MM)

90306-KTZ-D01

$3.06

19

BEARING, RADIAL BALL (6204UU)

91052-MAE-004

$25.25

19

BEARING, RADIAL BALL (6204UU) This part replaces 91052-MZ2-A21.

91052-MAE-004

$25.25

20

BEARING, RADIAL BALL (62/22)

91073-MV4-782

$12.25

21

DUST SEAL (30X50X7.5)

91252-MAE-003

$15.58

22

O-RING (61X2)

91302-MA6-003

$4.93
