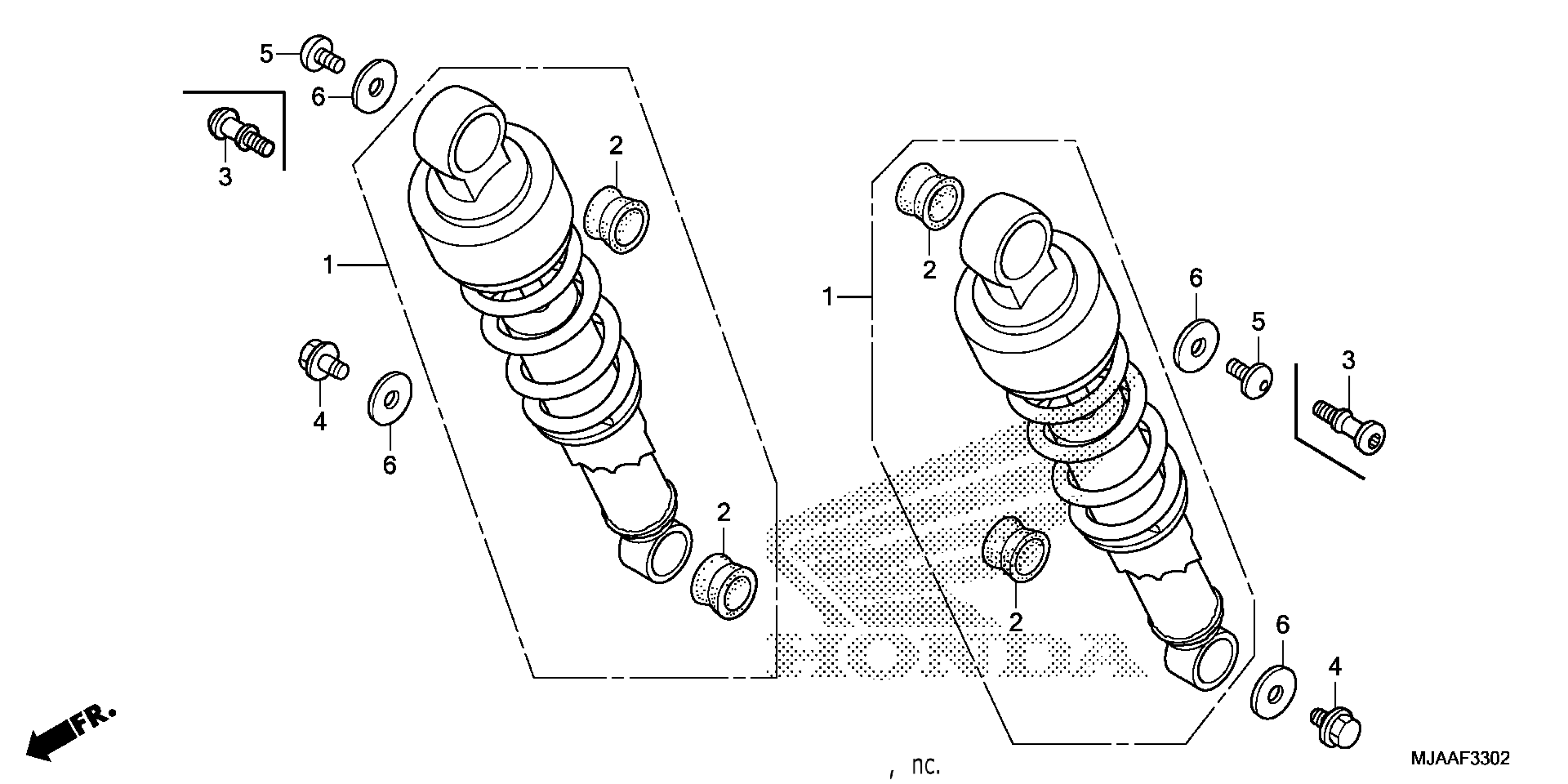

Honda VT750RSAC (13) SHADOW RS, JPN, VIN# JH2RC581-DK300001 REAR SHOCK ABSORBER (3) Diagram

#

Description

Price

1

CUSHION ASSY., RR. (COO) (SHOWA)

52400-MGR-305

$400.88

1

CUSHION ASSY., RR. (COO) (SHOWA) This part replaces 52400-MGR-671.

52400-MGR-305

$400.88

2

BUSH, RUBBER (UPPER) (SHOWA)

52489-GS3-003

$6.06

3

BOLT, HOOK (8X14) | (Optional).

90117-MAZ-000

$3.57

4

BOLT, SPECIAL FLANGE (8X12)

90125-KR3-000

$3.71

5

BOLT, SOCKET (8X14)

90129-MGR-670

$2.57

6

WASHER (8.5X26)

90504-ME4-000

$3.11
