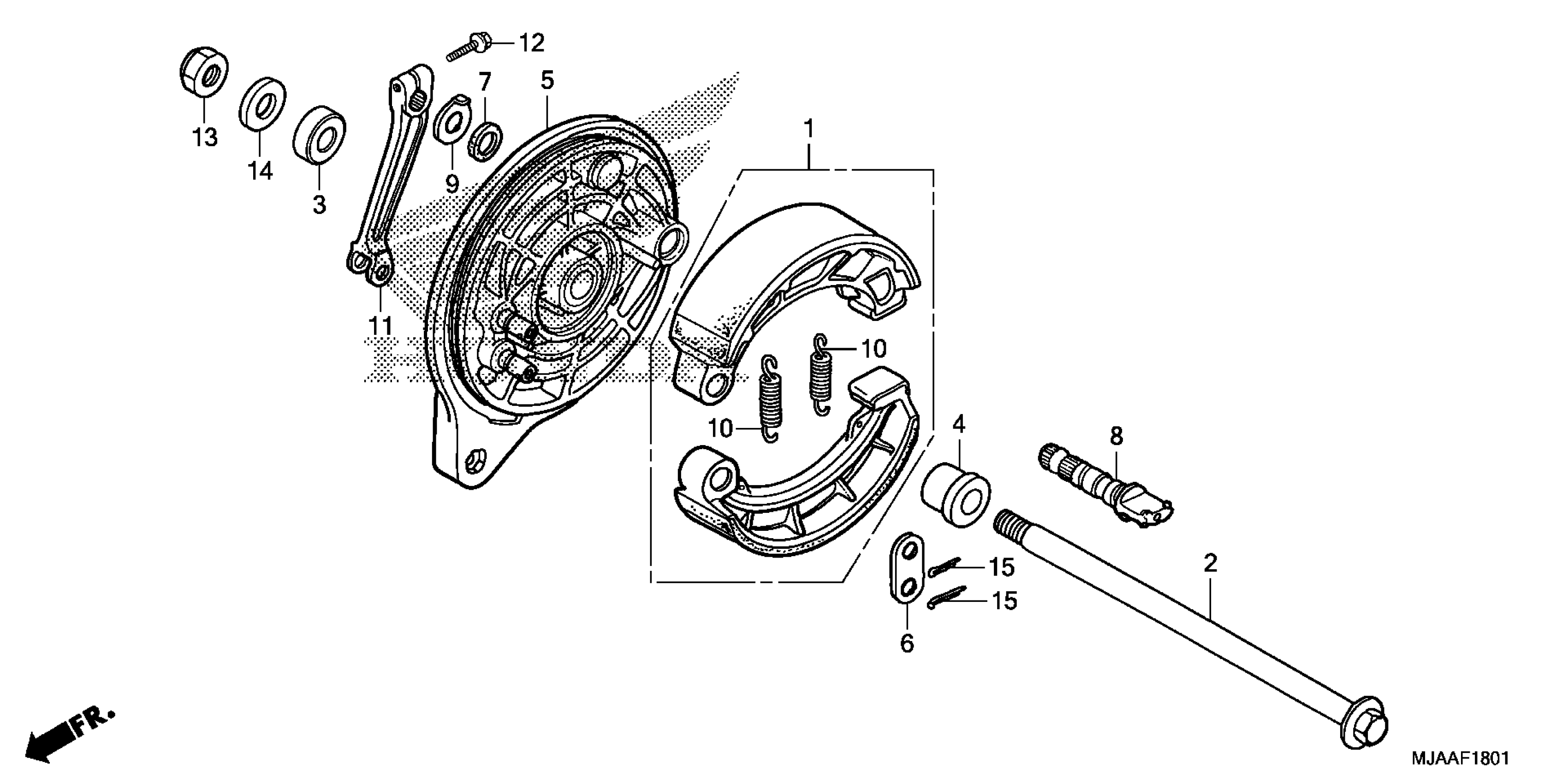

Honda VT750RSAC (13) SHADOW RS, JPN, VIN# JH2RC581-DK300001 REAR BRAKE PANEL (2) Diagram

SHOE SET, BRAKE (JB)

06430-MCL-700

$58.34

AXLE, RR. WHEEL

42301-MGR-670

$46.59

COLLAR, RR. WHEEL SIDE

42311-MG5-670

$16.43

COLLAR, L. RR. WHEEL SIDE

42311-MGR-670

$18.41

PANEL, RR. BRAKE *NH146M* (ACCURATE SILVER METALLIC)

43100-MEG-000ZB

$152.11

WASHER, ANCHOR PIN

43102-319-000

$6.21

DUST SEAL, BRAKE CAM

43134-300-000

$2.09

CAM, RR. BRAKE

43141-MCL-003

$32.05

INDICATOR, RR. BRAKE

43145-ME5-000

$5.84

SPRING, RR. BRAKE SHOE

43151-346-000

$5.90

ARM, RR. BRAKE

43410-MEG-000

$31.17

BOLT, FLANGE (8X25)

90107-MZ5-000

$4.65

NUT, U (18MM)

90306-MCS-G01

$6.81

WASHER (18X32X2)

90401-MCS-G00

$2.72

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, COTTER (2.5MM)

94201-25300

$1.49
