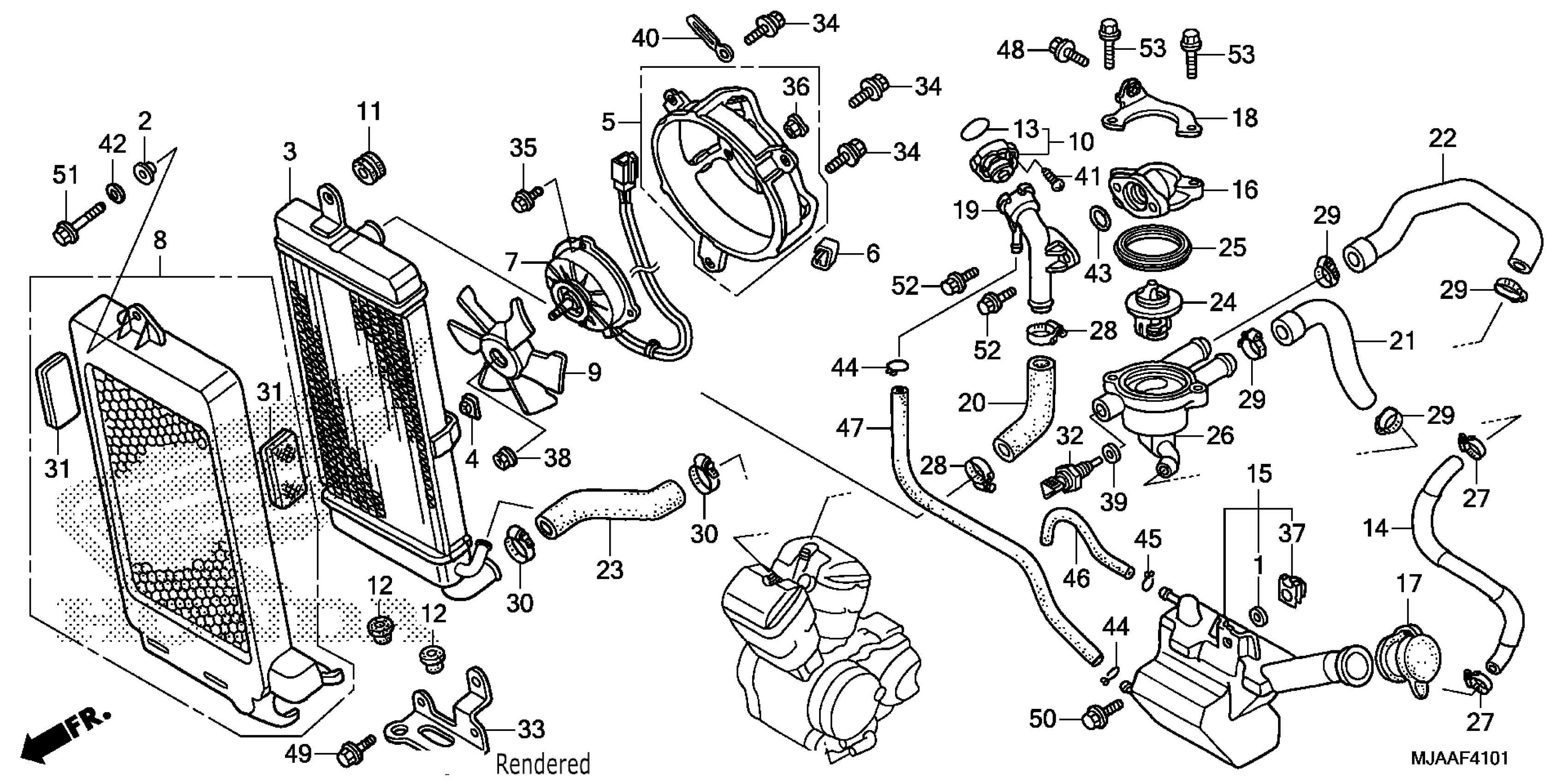

Honda VT750RSAC (13) SHADOW RS, JPN, VIN# JH2RC581-DK300001 RADIATOR (2) Diagram

#

Description
Price

1

COLLAR, CONTROL

16573-ZE6-300

$2.66

2

COLLAR, AIR CLEANER SETTING

17216-HA7-670

$5.87

3

RADIATOR (NOT AVAILABLE) This part replaces 19010-MGR-305.

19010-MGR-671

$516.25

3

RADIATOR (NOT AVAILABLE)

19010-MGR-671

$516.25

4

NUT, SETTING (6MM)

19014-KEA-003

$2.95

5

SHROUD (COO) This part replaces 19015-MBA-003.

19015-MBA-305

$49.69

5

SHROUD (COO)

19015-MBA-305

$49.69

6

CLIP, HARNESS (T.RAD)

19017-PK1-004

$8.91

7

MOTOR ASSY., FAN

19030-MGR-671

$299.82

8

GRILLE, RADIATOR

19035-MBA-671

$95.18

9

FAN, COOLING (TOYO)

19040-MF5-751

$58.41

10

CAP, RADIATOR

19045-MY3-621

$37.14

11

RUBBER, RADIATOR MOUNTING

19051-KA3-710

$4.83

12

RUBBER, RADIATOR MOUNTING

19051-MB2-000

$4.31

13

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)

19055-MV9-881

$8.49

14

HOSE, BYPASS

19071-MGR-670

$27.69

15

TANK ASSY., RESERVE

19101-MBA-010

$27.52

15

TANK ASSY., RESERVE This part replaces 19101-MBA-305.

19101-MBA-010

$27.52

16

CAP, THERMOSTAT

19103-MGR-670

$27.68

17

CAP, RESERVE TANK

19104-MB0-700

$11.16

18

STAY, THERMOSTAT CASE

19105-MGR-670

$4.59

19

NECK, FILLER

19106-MM8-000

$54.31

20

HOSE, RADIATOR (UPPER)

19107-MGR-670

$9.96

21

HOSE, FR. OUTLET WATER

19108-MGR-670

$8.75

22

HOSE, RR. OUTLET WATER

19110-MGR-670

$13.47

23

HOSE, RADIATOR (LOWER)

19115-MBA-000

$22.35

24

THERMOSTAT ASSY.

19300-MCH-A00

$43.86

25

RUBBER, THERMOSTAT

19305-KV3-010

$5.80

26

CASE, THERMOSTAT

19310-MGR-670

$43.28

27

CLAMP, WATER HOSE (25MM)

19504-KY1-003

$9.48

28

CLAMP, WATER HOSE

19505-ML3-770

$6.75

29

CLAMP B, WATER HOSE

19506-KS6-700

$7.16

30

CLAMP, R. RADIATOR HOSE

19509-MM5-003

$12.46

31

REFLECTOR SET, FR. REFLEX

33745-MBA-670

$26.01

32

SENSOR ASSY., WATER TEMPERATURE

37870-KRJ-901

$28.22

33

STAY, RADIATOR

50175-MBA-000

$15.81

34

BOLT-WASHER (6X16)

90120-KCR-003

$4.19

35

BOLT, FLANGE (5X10)

90196-MBB-003

$2.46

36

NUT, SPECIAL (5MM)

90303-MBB-003

$3.47

37

NUT, CLIP (6MM)

90305-KT7-000

$3.79

38

NUT, SERRATE (5MM)

90315-MK3-003

$2.15

39

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.41

40

CLIP (2X70)

91413-679-000

$8.51

41

SCREW, TAPPING (3X8)

93901-22180

$0.84

42

WASHER, PLAIN (6MM)

94101-06700

$0.87

43

O-RING (23X2.4)

94608-30000

$1.10

44

CLIP, TUBE (B12)

95002-02120

$1.79

45

CLIP, TUBE (C9)

95002-50000

$1.16

46

BULK HOSE, VACUUM (5X3000) (5X180)

95005-50003-30M

$22.30

47

BULK HOSE (7.3X1000)

95005-75001-20M

$26.09

48

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.84

49

BOLT, FLANGE (6X14)

95701-06014-07

$1.34

50

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.50

51

BOLT, FLANGE (6X30)

95701-06030-07

$1.74

52

BOLT, FLANGE (6X14)

96001-06014-00

$1.66

53

BOLT, FLANGE (6X20)

96001-06020-00

$1.15
