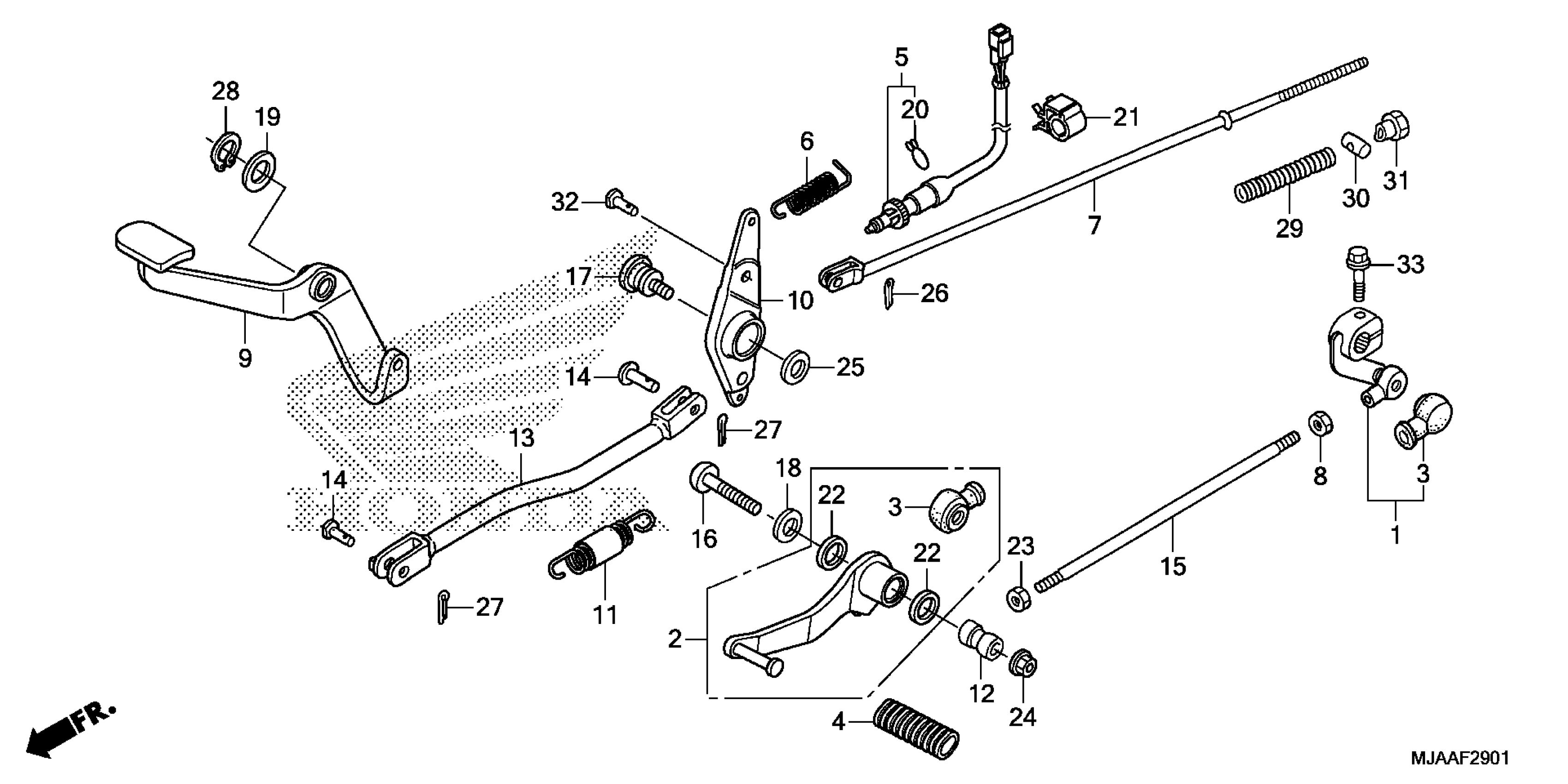

Description

Price

1

ARM, GEARSHIFT

24702-MGR-670

$46.76

2

PEDAL, GEARSHIFT (NOT AVAILABLE) This part replaces 24710-MGR-305.

24710-MGR-670

$85.07

2

PEDAL, GEARSHIFT (NOT AVAILABLE)

24710-MGR-670

$85.07

3

COVER, DUST

24724-MBW-D21

$6.66

4

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.23

5

SWITCH ASSY., RR. STOP

35350-MGR-672

$29.01

6

SPRING, STOP SWITCH

35357-MGR-670

$4.26

7

ROD, RR. BRAKE

43451-MGR-670

$16.24

8

NUT, HEX. (6MM) (LEFT HAND THREAD)

45423-KA4-700

$1.50

9

PEDAL, RR. BRAKE This part replaces 46501-MGR-305.

46501-MGR-670

$109.74

9

PEDAL, RR. BRAKE

46501-MGR-670

$109.74

10

ARM, RR. BRAKE MIDDLE (COO)

46510-MGR-305

$45.84

11

SPRING SET, BRAKE PEDAL

46513-KR6-000

$6.69

12

COLLAR, RR. BRAKE PIVOT

46515-MM8-000

$10.75

13

ROD, RR. BRAKE MIDDLE

46540-MGR-670

$43.59

14

PIN, MIDDLE ROD JOINT

46545-MBA-000

$6.24

15

BOLT, TIE ROD

90101-MGR-670

$3.87

16

BOLT, SOCKET (10X54)

90107-MGR-670

$3.72

17

BOLT B, PIVOT

90116-MGR-670

$11.22

18

WASHER (10.3MM)

90521-427-770

$2.21

19

WASHER (15.2X25)

90557-230-000

$2.21

20

CLIP, SWITCH COVER

90601-KAF-003

$2.47

21

CLIP, CABLE (10MM) CLIP, CABLE (8MM)

90690-GHB-641

$2.01

22

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.52

23

NUT, HEX. (6MM)

94002-06000-0S

$1.21

24

NUT, FLANGE (10MM)

94050-10000

$1.43

25

WASHER, PLAIN (10MM)

94103-10700

$0.87

26

PIN, COTTER (2.0X12)

94201-20120

$0.96

27

PIN, COTTER (2.0X15)

94201-20150

$0.96

28

CIRCLIP (OUTER) (15MM)

94511-15000

$0.63

29

SPRING A, BRAKE ROD

95014-73100

$1.19

30

JOINT B, BRAKE ARM

95015-32001
