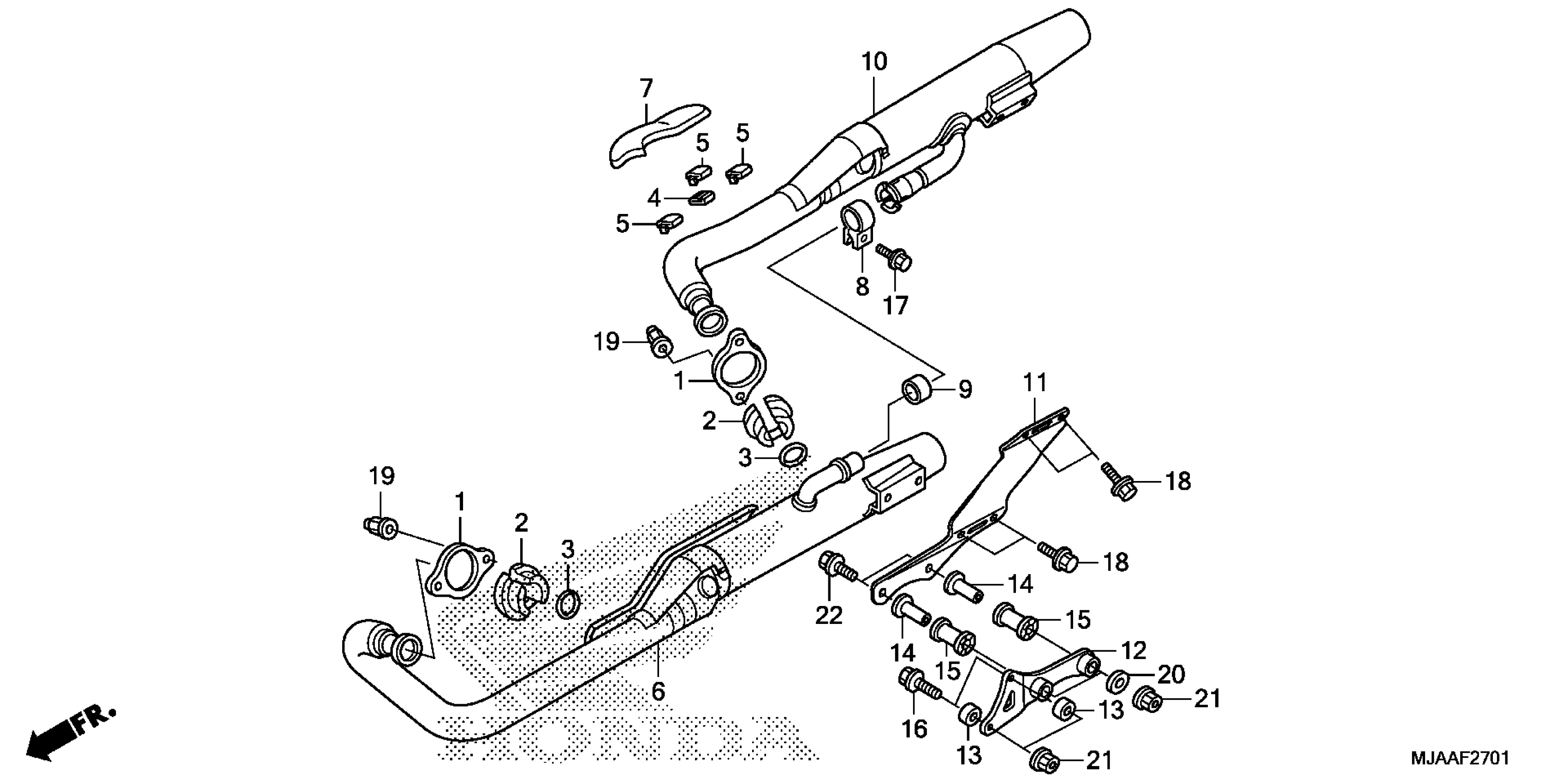

Honda VT750RSAC (13) SHADOW RS, JPN, VIN# JH2RC581-DK300001 MUFFLER (2) Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-MBA-003

$26.53

2

COLLAR, EX. PIPE JOINT

18233-MR1-010

$10.59

3

GASKET, EX. PIPE

18291-MM5-860

$5.17

4

RUBBER, PROTECTOR GASKET

18293-MFE-B00

$2.98

5

RUBBER, PROTECTOR

18293-MN0-000

$2.13

6

MUFFLER, FR. EX. This part replaces 18300-MGR-305.

18300-MGR-672

$1,622.21

6

MUFFLER, FR. EX.

18300-MGR-672

$1,622.21

7

PROTECTOR, RR. EX.

18315-MGR-671

$131.70

8

BAND, R. EX. PIPE

18373-ML4-003

$32.23

9

GASKET, MUFFLER

18391-ML8-000

$9.49

10

MUFFLER, RR. EX. (COO)

18400-MGR-305

$1,622.21

11

STAY, MUFFLER

18415-MGR-670

$67.34

12

BRACKET, MUFFLER

18455-MGR-670

$101.36

13

COLLAR, MUFFLER BRACKET

18456-MGR-670

$5.57

14

COLLAR, MOUNTING RUBBER

50607-KK6-000

$9.13

15

RUBBER, MUFFLER MOUNTING

50608-KK6-000

$7.79

16

BOLT, FLANGE (8X45)

90105-MGR-670

$3.67

17

BOLT, FLANGE (8X32)

90125-MGR-670

$3.03

18

BOLT, FLANGE (8X16)

90166-S87-A00

$1.49

19

NUT, CAP (8MM)

90304-ME1-670

$5.94

20

WASHER (8.3MM)

90501-KK6-000

$2.48

21

NUT, FLANGE (8MM)

94050-08070

$1.49

22

BOLT, FLANGE (8X55)

95701-08055-07

$1.85
