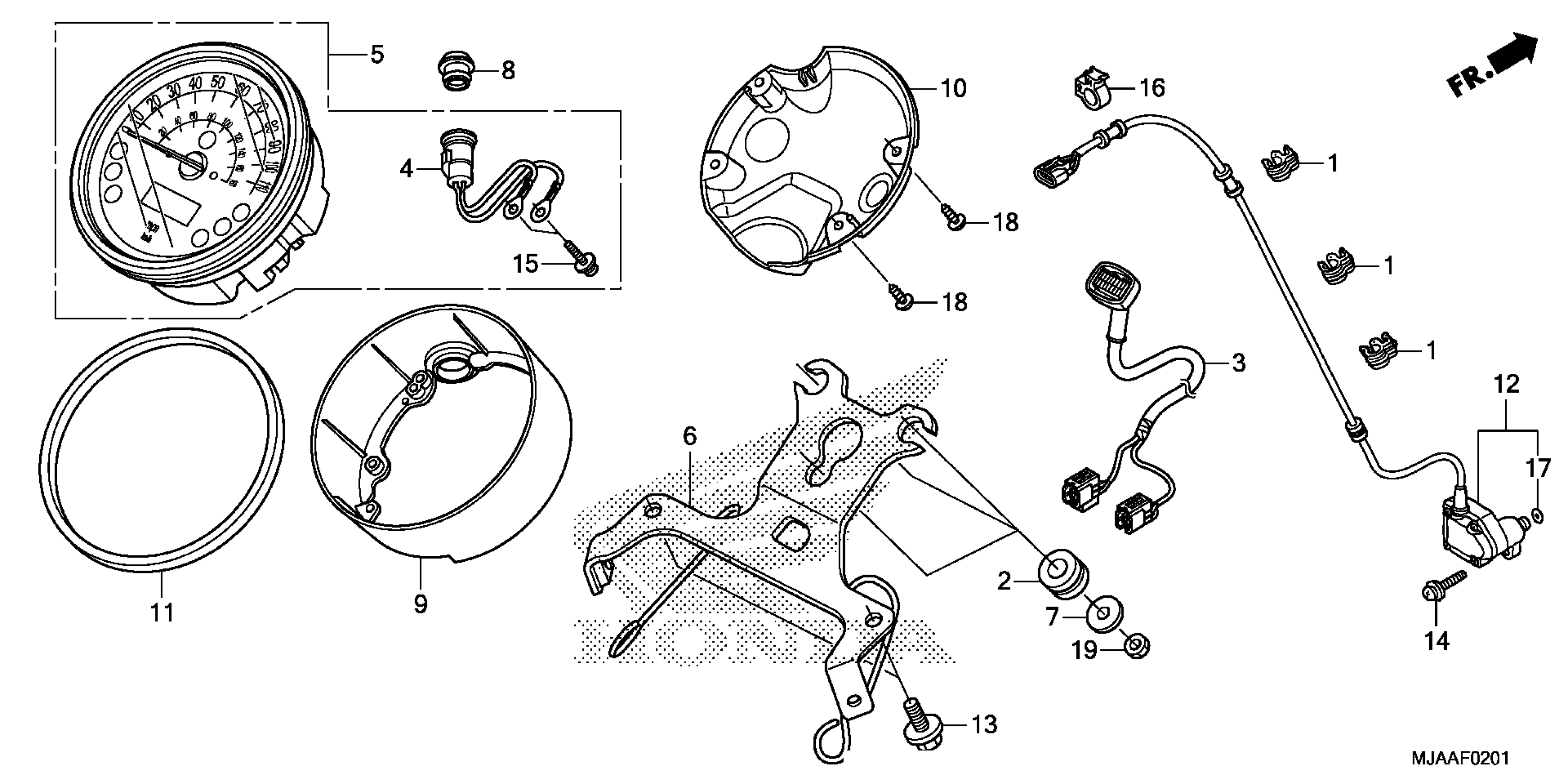

Honda VT750RSAC (13) SHADOW RS, JPN, VIN# JH2RC581-DK300001 METER (2) Diagram

#

Description
Price

1

CLAMP, PIPE

17368-KV7-671

$2.12

2

RUBBER, EX. PIPE MOUNTING

18422-MCS-760

$10.89

3

SUB-HARNESS, METER

32103-MGR-671

$79.33

4

SWITCH ASSY., RESET

37205-MGR-003

$19.14

5

SPEEDOMETER (MPH/KPH)(COO)

37210-MGR-305

$748.29

6

STAY, METER

37211-MGR-670

$53.96

7

WASHER, PLAIN (6MM)

37212-MGR-000

$1.43

8

CAP, RESET SWITCH

37215-MBA-611

$7.84

9

COVER A, SPEEDOMETER

37220-MGR-671

$24.51

10

COVER B, SPEEDOMETER

37230-MGR-671

$17.01

11

CUSHION, RUBBER

37235-MCL-000

$7.67

12

SENSOR ASSY., SPEED

37700-MGR-671

$125.07

13

BOLT, FLANGE (8X16)

90101-MFY-A00

$2.94

14

SCREW-WASHER (5X20)

90102-HN1-A70

$1.87

15

SCREW-WASHER (3X18)

90133-SL9-003

$7.90

16

CLIP, CABLE (8MM)

90690-GHB-631

$1.99

17

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$2.80

17

O-RING (6.8X1.9) O-RING B (6.8X1.9)

91306-PJ4-000

$2.80

17

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$2.80

18

SCREW, TAPPING (4X16) (PO)

93913-24480

$0.83

19

NUT, HEX. (6MM)

94001-06070-0S

$1.19
