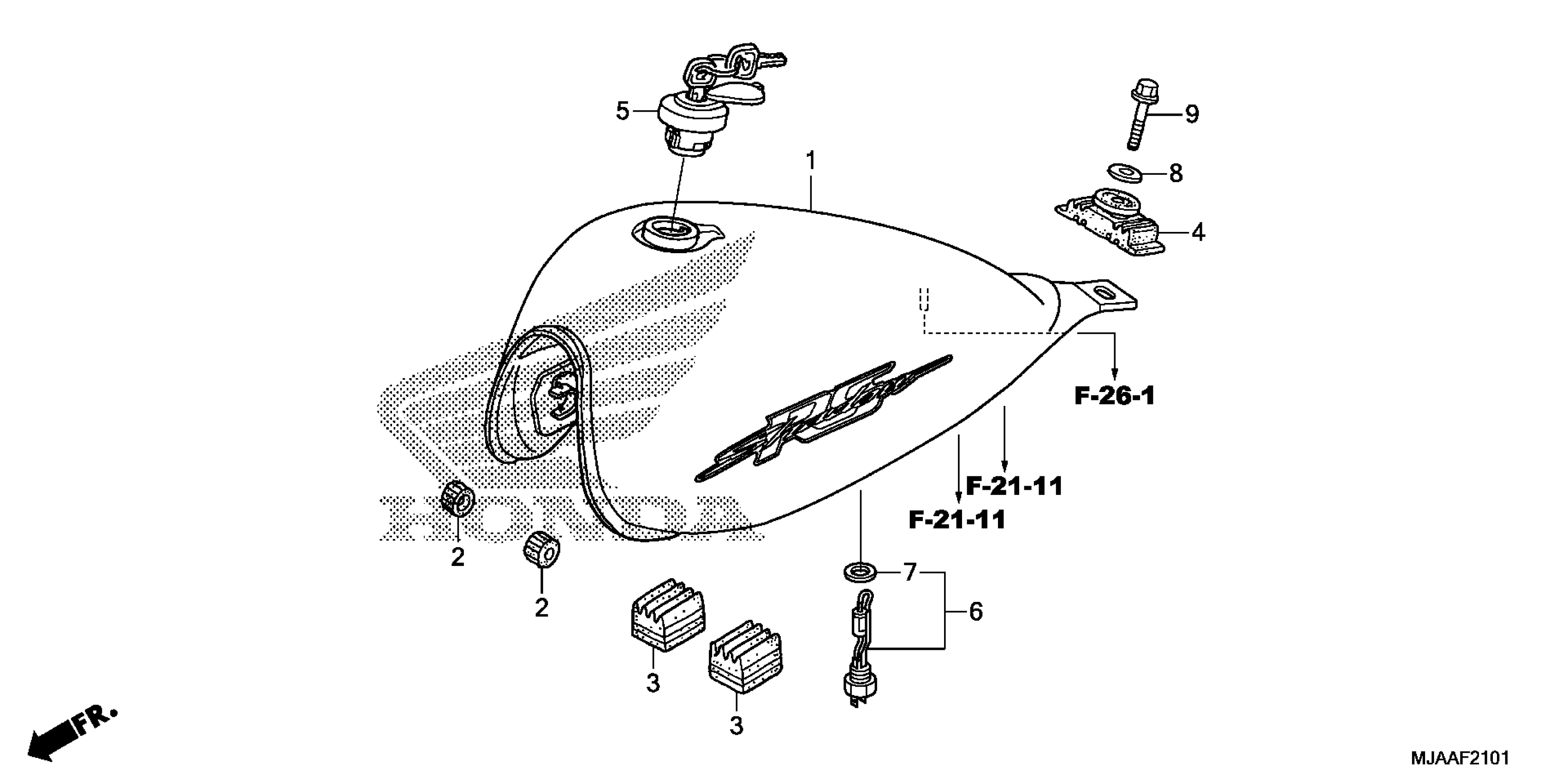

Honda VT750RSAC (13) SHADOW RS, JPN, VIN# JH2RC581-DK300001 FUEL TANK (2) Diagram

#

Description

Price

1

TANK SET, FUEL NHB01 (WL) (GRAPHITE BLACK)

17500-MGR-670ZE

$1,348.63

2

CUSHION, FR. FUEL TANK

17611-KE8-000

$4.02

3

CUSHION, FUEL TANK

17611-MBA-000

$7.58

4

CUSHION, RR. FUEL TANK

17613-KY1-000

$10.72

5

CAP, FUEL FILLER This part replaces 17620-KR3-751.

17620-KR3-753

$65.11

5

CAP, FUEL FILLER This part replaces 17620-KR3-752.

17620-KR3-753

$65.11

5

CAP, FUEL FILLER

17620-KR3-753

$65.11

6

SENSOR ASSY., FUEL RESERVE

37810-MER-D01

$47.94

7

GASKET, FUEL RESERVE SENSOR

37811-MB1-008

$2.80

8

WASHER, HANDLE CUSHION

90535-KB9-000

$5.86

9

BOLT, FLANGE (8X16)

95701-08016-00

$1.66
