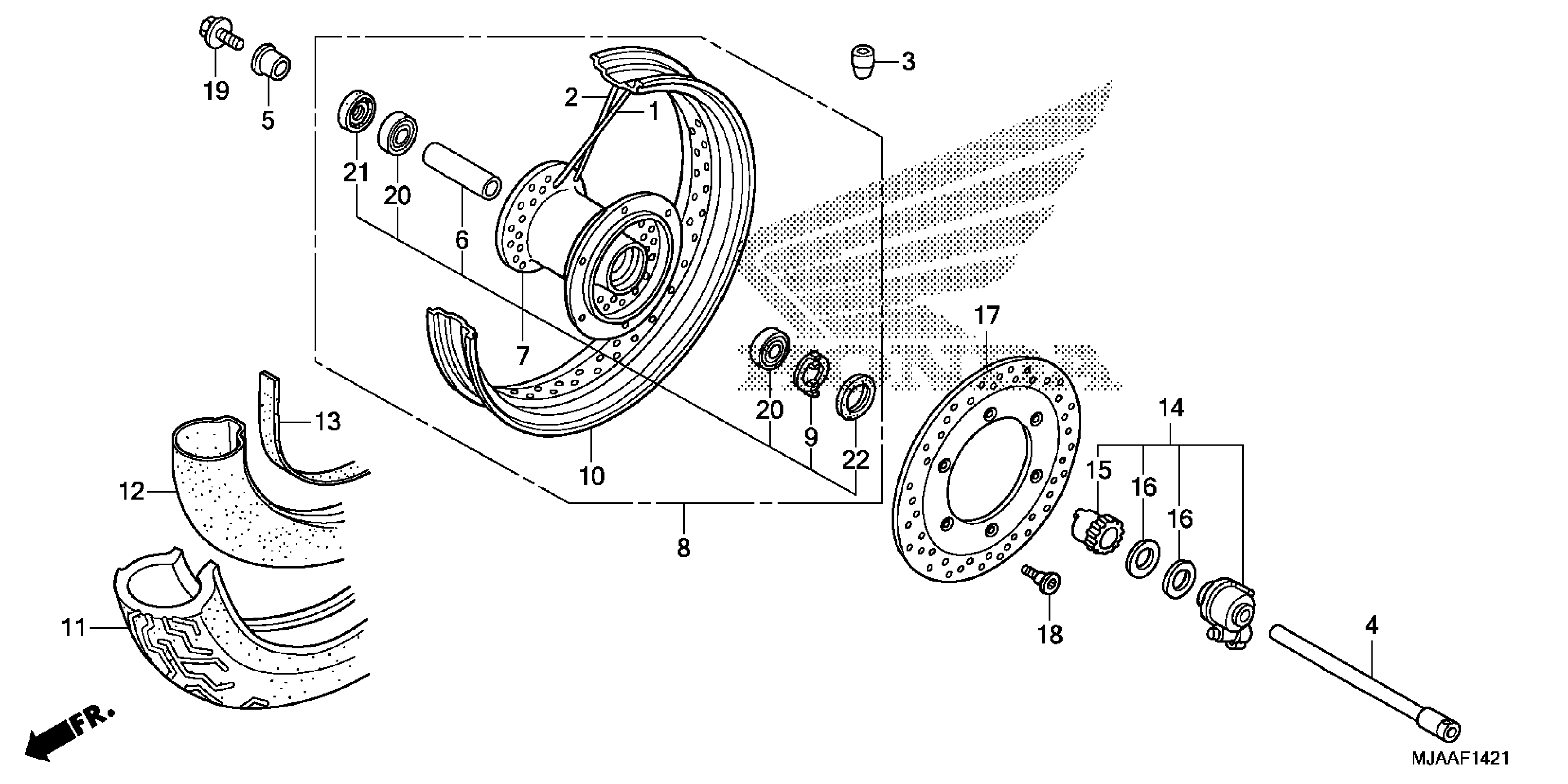

Honda VT750RSAC (13) SHADOW RS, JPN, VIN# JH2RC581-DK300001 FRONT WHEEL (2) Diagram

SPOKE SET A (INSIDE)

06440-MGR-670

$4.53

SPOKE SET B (OUTSIDE)

06441-MGR-670

$3.08

WEIGHT, BALANCE (15G)

42704-MEG-003

$7.71

WEIGHT, BALANCE (20G)

42705-MEG-003

$7.71

AXLE, FR. WHEEL

44301-MCK-G00

$46.34

COLLAR, FR. WHEEL SIDE

44311-MGR-670

$14.46

COLLAR, FR. AXLE DISTANCE

44620-MBC-000

$15.63

HUB SUB-ASSY., FR.

44635-MBA-010

$227.91

WHEEL SUB-ASSY., FR.

44650-MGR-670

$609.03

RETAINER, GEAR BOX

44680-ML7-000

$4.85

RIM, FR. WHEEL

44701-MGR-671

$129.79

TIRE, FR. This part replaces 44711-MGR-671.

44711-MGR-673

$261.04

TIRE, FR. (100/90-19 M/C 57H) (METZELER) (NA USE ALT:44711-MGR-671)

44711-MGR-672

Unavailable

TIRE, FR.

44711-MGR-673

$261.04

TUBE, TIRE (METZELER) (NA USE ALT:44711-MGR-671)

44712-MGR-672

Unavailable

TUBE, TIRE (DUNLOP) (NOT AVAILABLE)

44712-300-004

$60.46

BAND, TIRE RIM (DUNLOP)

42713-KZ3-611

$5.64

BAND, RIM (METZELER)

44713-MGR-672

Unavailable

FLAP, TIRE (DUNLOP) This part replaces 44713-300-004.

42713-KZ3-611

$5.64

BOX ASSY., SPEEDOMETER GEAR

44800-MR1-003

$102.33

GEAR, SPEEDOMETER

44806-MR1-003

$28.56

WASHER, SPEEDOMETER GEAR

44809-ML7-003

$2.86

DISK, FR. BRAKE

45351-MGR-670

$396.24

BOLT, FR. DISK (8X24) (SAGA)

90105-KL8-741

$5.64

BOLT, FR. DISK (8X24) (SAGA)

90105-KR3-000

$5.80

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$5.93

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$5.93

BOLT, FR. AXLE

90105-MBT-610

$5.51

BEARING, RADIAL BALL (6204UU)

91052-MAE-004

$25.25

BEARING, RADIAL BALL (6204UU) This part replaces 91052-MBC-004.

91052-MAE-004

$25.25

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.66

DUST SEAL (45X55X5) (ARAI)

91258-ML7-003

$7.97

DUST SEAL (45X55X5) (ARAI) This part replaces 91258-ML7-004.

91258-ML7-003

$7.97
