Description

Price

1

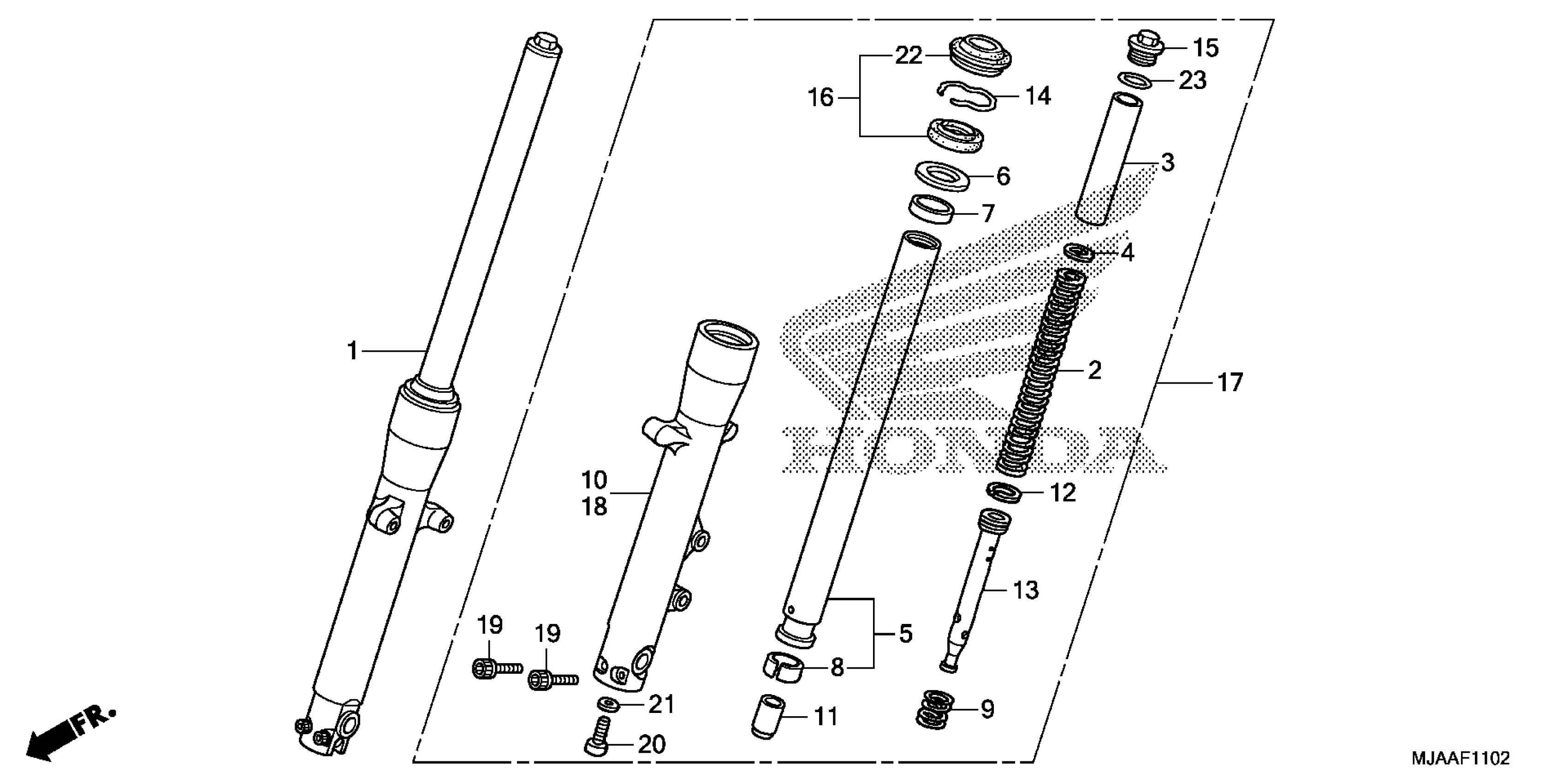

FORK ASSY., R. FR. (COO) (SHOWA)

51400-MGR-305

$780.11

2

SPRING, FR. FORK

51401-MGR-671

$81.05

3

COLLAR, SPRING (R. SIDE)

51402-ML7-921

$26.39

4

PLATE, SPRING JOINT

51404-MB4-003

$4.94

5

PIPE, FR. FORK

51410-MGR-671

$417.08

6

RING, BACK-UP (SHOWA)

51412-MB4-003

$9.65

7

BUSH, GUIDE

51414-MFJ-A51

$7.25

8

BUSH, SLIDER

51415-MFJ-A51

$7.25

9

SPRING, FR. REBOUND (SHOWA)

51416-MM8-881

$5.89

10

CASE, R. (LOWER)

51420-MCL-003

$386.33

11

PIECE, OIL LOCK (SHOWA)

51432-MV9-003

$24.82

12

RING, PISTON

51437-MB4-003

$9.57

13

PIPE, SEAT

51440-MGR-671

$41.15

14

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

15

BOLT, FR. FORK

51455-MCL-003

$46.87

16

SEAL SET, FR. FORK This part replaces 51490-MER-R61.

51490-MKA-D81

$22.76

16

SEAL SET, FR. FORK

51490-MKA-D81

$22.76

17

FORK ASSY., L. FR. (COO) (SHOWA)

51500-MGR-305

$746.44

18

CASE, L. (LOWER)

51520-MCL-003

$386.33

19

BOLT, SOCKET (8X35)

90109-MCR-D00

$2.84

20

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

21

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

22

DUST SEAL (SHOWA)

91251-MKA-D81

$8.55

22

DUST SEAL (SHOWA) This part replaces 91254-MEE-D01.
