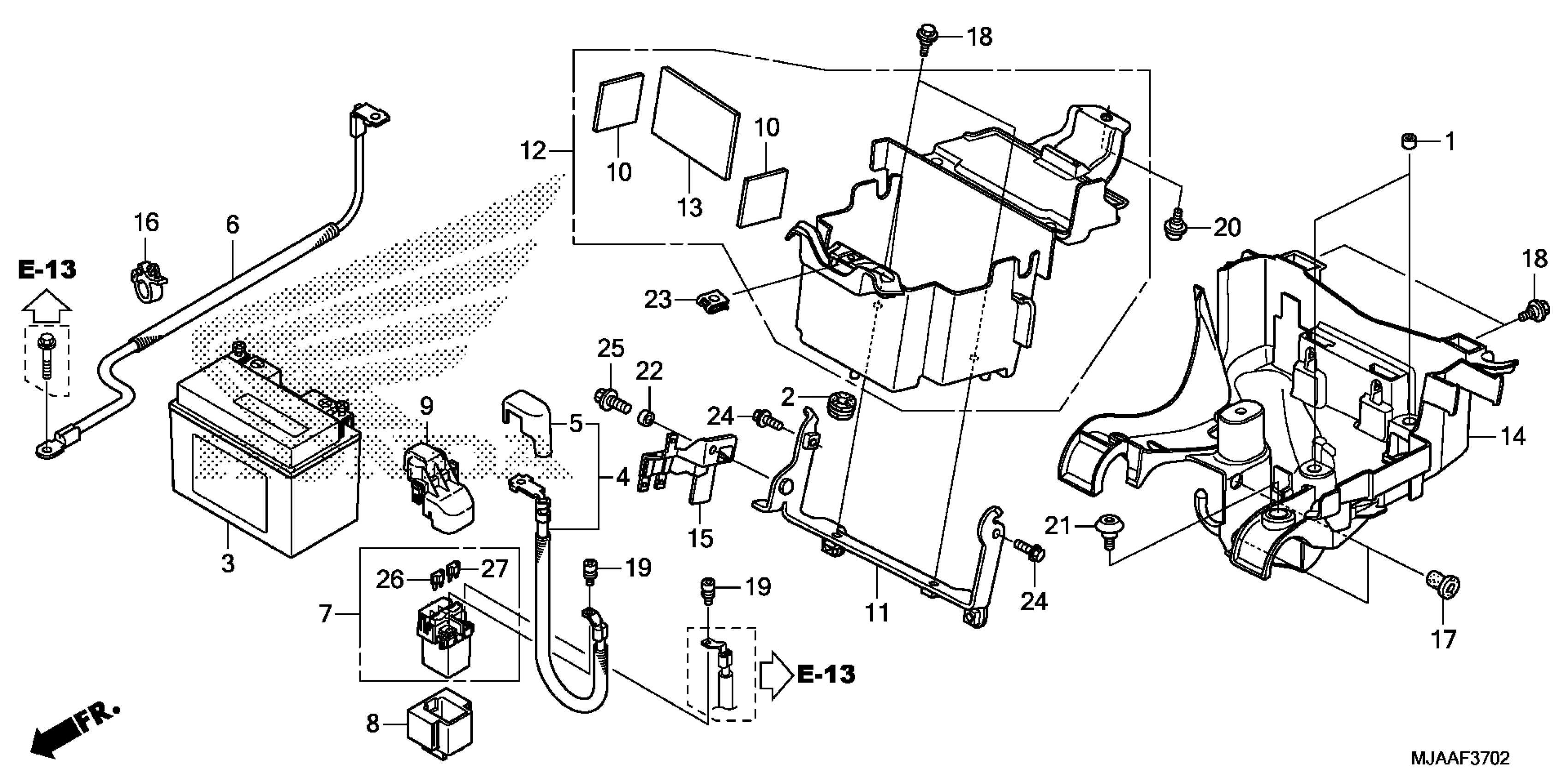

Honda VT750RSAC (13) SHADOW RS, JPN, VIN# JH2RC581-DK300001 BATTERY (3) Diagram

#

Description
Price

1

COLLAR, DISTANCE

17202-ZV5-310

$2.22

2

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.16

3

BATTERY (YTZ14S) (YUASA) (MSDS) This part replaces 31500-MCR-D02AH.

31500-MCR-D03

$187.19

3

BATTERY (YTZ14S) (YUASA) (MSDS)

31500-MCR-D03

$187.19

3

BATTERY (YTZ14S) (YUASA) (MSDS) This part replaces 31500-MCR-D03AH.

31500-MCR-D03

$187.19

4

CABLE, STARTER BATTERY

32401-MGR-670

$26.76

5

COVER, BATTERY TERMINAL

32414-MCF-000

$5.99

6

CABLE, BATTERY GROUND

32601-MGR-670

$23.53

7

SWITCH ASSY., STARTER MAGNETIC

35850-MFL-003

$69.91

8

RUBBER, SHOCK

35856-KBG-007

$9.63

9

COVER, MAGNETIC SWITCH

35857-MFN-D00

$8.06

10

SPONGE, RUBBER

50322-MEC-000

$1.64

11

STAY, BATTERY

50322-MGR-670

$18.91

12

BOX, BATTERY

50325-MGR-670

$58.07

13

CUSHION, BATTERY

50328-MFE-640

$3.54

14

BOX, BATTERY (LOWER)

50330-MGR-670

$22.01

15

HOLDER, CONNECTOR

50335-MGR-670

$5.25

16

CLIP, RETURN HOSE

53781-SE0-952

$7.00

17

NUT, WELL (5MM)

64528-KV3-000

$8.13

18

BOLT, FLANGE (6MM)

90111-GJ5-000

$4.05

19

BOLT, SOCKET (5X9)

90111-MR5-000

$2.41

20

SCREW, PAN (5X13)

90117-MN5-000

$2.10

21

BOLT, SPECIAL (6MM)

90127-MCP-900

$1.66

22

COLLAR, BODY COVER

90312-GF0-000

$2.95

23

NUT, CLIP (5MM)

90677-KAN-961

$3.89

24

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.84

25

BOLT, FLANGE (6X14)

95701-06014-08

$1.50

26

FUSE, MINI (20A)

98200-42000

$1.12

27

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.62
