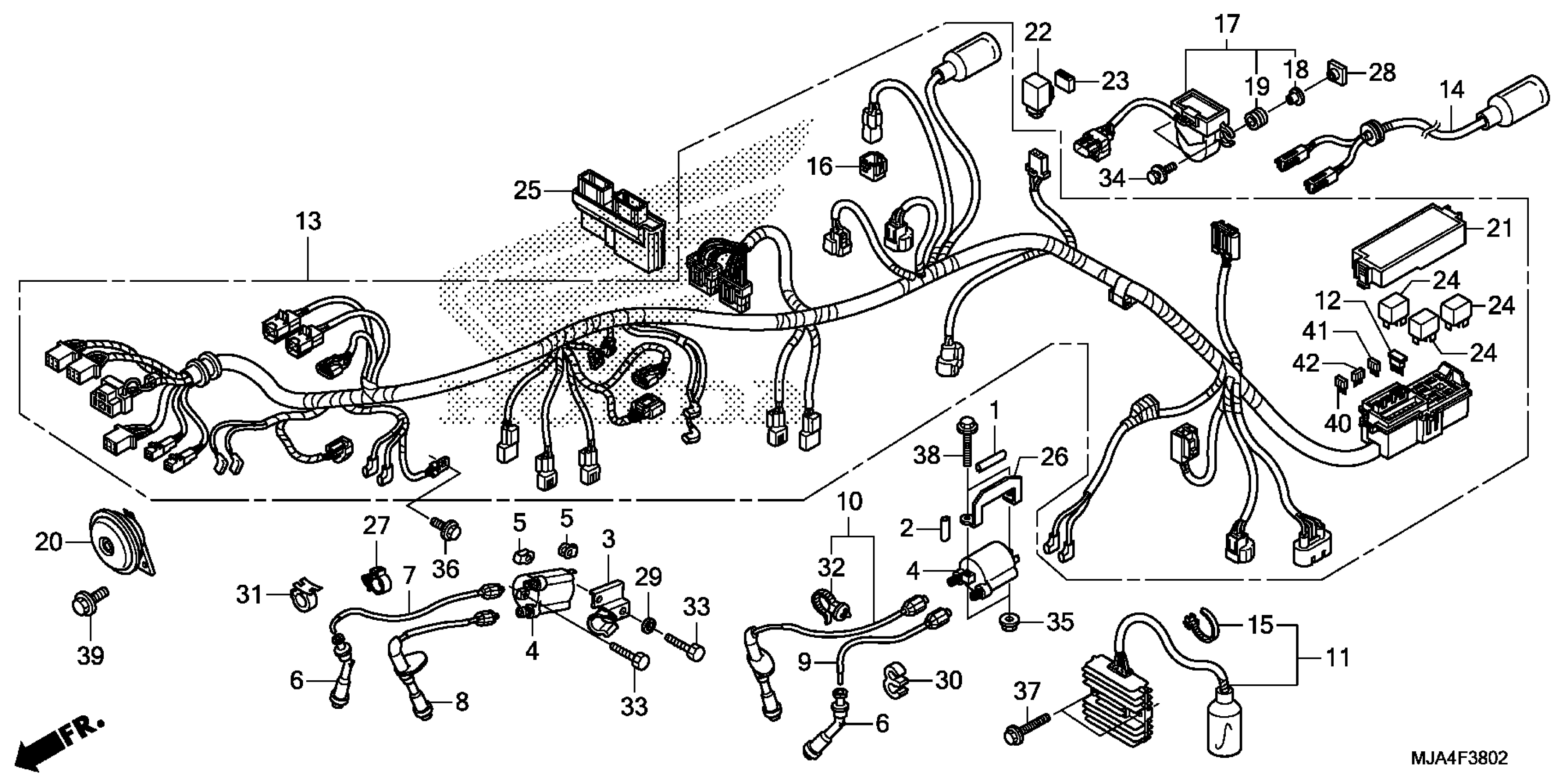

Honda VT750RSAC (12) SHADOW RS, JPN, VIN# JH2RC581-CK200001 WIRE HARNESS (3) Diagram

#

Description
Price

1

TRIM, FUEL TANK

17516-HC0-000

$4.49

2

TRIM, FUEL TANK

17516-HC4-000

$3.90

3

CLAMP, FUEL FEED HOSE

17541-MGR-670

$9.08

4

COIL, IGNITION

30510-MCC-003

$89.93

5

SPACER, IGNITION COIL

30520-ML7-000

$3.77

6

CAP ASSY., NOISE SUPPRESSOR

30700-KK6-153

$28.93

7

WIRE ASSY., R. FR. IGNITION

30771-MGR-671

$20.44

8

WIRE ASSY., L. FR. IGNITION

30772-MGR-671

$43.26

9

WIRE ASSY., L. RR. IGNITION

30773-MGR-671

$21.38

10

WIRE ASSY., R. RR. IGNITION

30774-MGR-671

$46.16

11

RECTIFIER ASSY., REGULATOR

31600-MGR-671

$229.34

12

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

13

WIRE HARNESS

32100-MGR-770

$1,076.70

14

SUB-HARNESS, RR.

32104-MGR-670

$44.13

15

BAND, WIRE HARNESS

32161-GFL-J41

$1.85

16

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.52

17

SENSOR ASSY., BANK ANGLE

35160-MGR-671

$154.57

18

COLLAR

35162-MN5-003

$7.25

19

GROMMET

35163-MN5-003

$3.15

20

HORN (HIGH)

38110-KSV-J00

$53.69

21

COVER (UPPER)

38252-MFJ-D01

$11.24

22

RELAY, TURN SIGNAL (MITSUBA)

38301-MEG-000

$39.31

23

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$3.01

24

RELAY (MICRO ISO 4P) This part replaces 38501-MEL-003.

38501-MKP-DN1

$4.80

25

PGM-FI UNIT

38770-MGR-773

$765.87

26

PLATE, HEAT

50331-MGR-670

$4.26

27

CLIP, RETURN HOSE

53781-SE0-952

$7.57

28

NUT, SPECIAL (4MM)

90300-GC8-000

$2.44

29

WASHER, PLAIN (6MM) (Honda Code 7039829)

90504-HW1-670

$1.87

30

CLIP, HIGH TENSION CORD (L. SIDE)

90658-ZA0-930

$2.48

31

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

32

CLIP, HARNESS BAND (145MM) (BLACK)

91541-S0A-003

$3.30

33

BOLT, HEX. (6X25)

92101-06025-4J

$1.49

34

BOLT-WASHER (4X25)

93404-04025-08

$1.49

35

NUT, FLANGE (6MM)

94050-06070

$1.49

36

BOLT, FLANGE (6X8)

95701-06008-00

$3.46

37

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55

38

BOLT, FLANGE (6X28)

95701-06028-07

$1.49

39

BOLT, FLANGE (8X12)

95701-08012-07

$1.72

40

FUSE, MINI (10A)

98200-41000

$1.49

41

FUSE, MINI (20A)

98200-42000

$1.49

42

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.67
