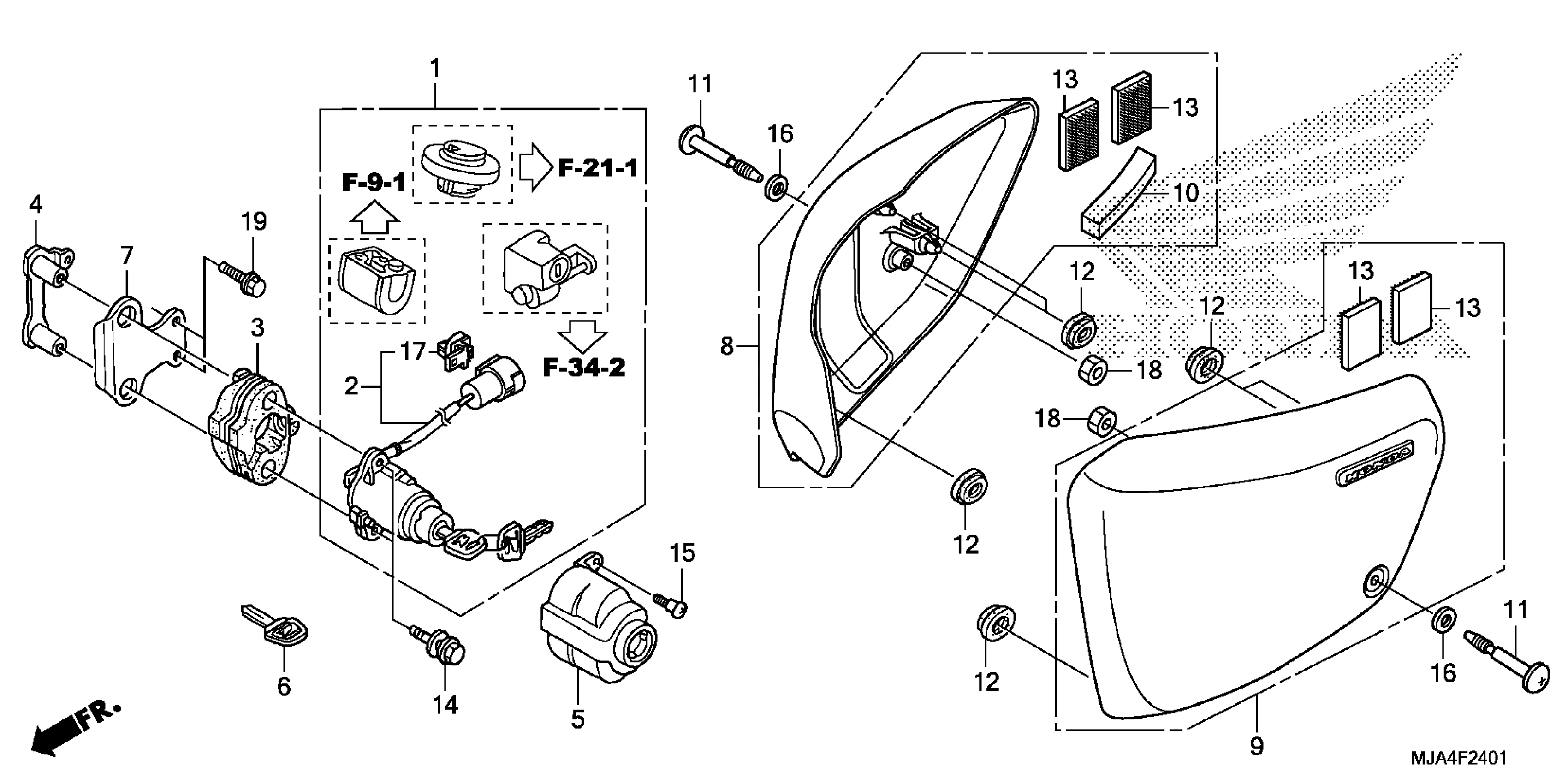

Honda VT750RSAC (12) SHADOW RS, JPN, VIN# JH2RC581-CK200001 SIDE COVER (2) Diagram

KEY SET This part replaces 35010-MGR-670.

35010-MGR-671

$276.11

SWITCH ASSY., COMBINATION (HONDALOCK)

35100-MGR-671

$99.21

BASE, COMBINATION SWITCH

35102-MR1-000

$13.64

COLLAR, COMBINATION SWITCH

35103-MBA-000

$16.41

COVER, COMBINATION SWITCH

35110-MZ5-000

$20.21

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-MR1-770

$9.74

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-MR1-770

$9.74

STAY, IGNITION SWITCH

50177-MBA-000

$9.93

COVER SET, R. SIDE *NHB01* (WL) (GRAPHITE BLACK)

63000-MGR-670ZA

$145.84

COVER SET, L. SIDE *NHB01* (WL) (GRAPHITE BLACK)

63100-MGR-670ZA

$145.84

CUSHION, SIDE COVER

64321-MGR-670

$3.39

LATCH, TOOL BOX

83550-MGR-670

$5.31

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

TAPE, MAGIC (25X50) (FEMALE)

83643-355-300

$2.92

BOLT, BREAK OFF (6MM)

90107-KR3-630

$9.89

SCREW, RR. COVER

90114-GB6-920

$1.50

WASHER, BODY COVER SETTING

90401-KM1-000

$1.49

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.67

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62
