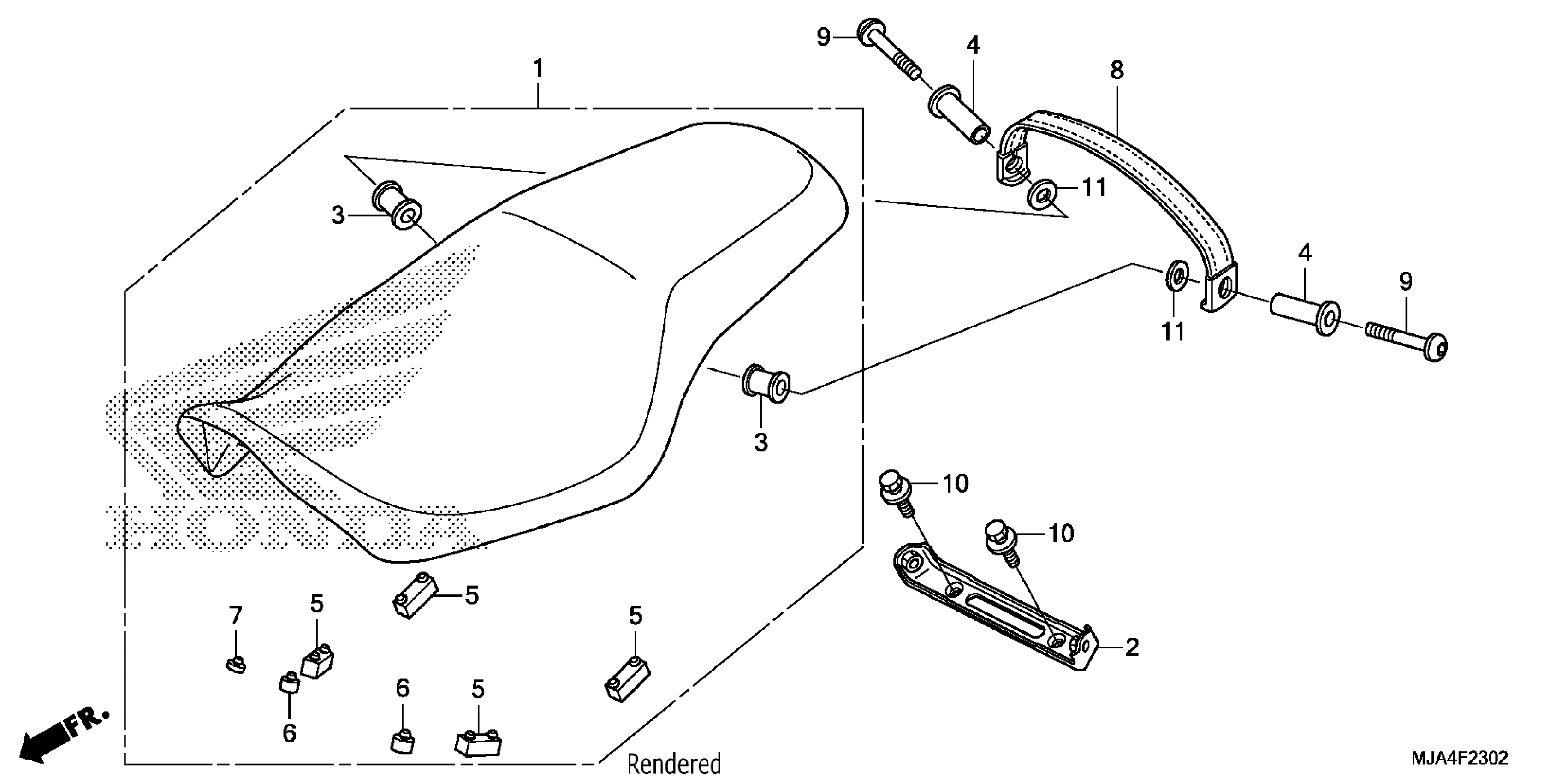

Honda VT750RSAC (12) SHADOW RS, JPN, VIN# JH2RC581-CK200001 SEAT (3) Diagram

SEAT ASSY., DOUBLE

77200-MGR-671

$473.28

STAY, SEAT

77201-MGR-670

$22.21

RUBBER, SEAT MOUNTING

77202-MCL-000

$2.72

COLLAR, SEAT MOUNT

77202-MGR-670

$4.21

RUBBER A, SEAT SETTING

77205-GB5-670

$8.09

RUBBER A, SEAT SETTING This part replaces 77205-MG2-000.

77205-GB5-670

$8.09

RUBBER, SEAT SETTING

77206-GF0-000

$5.46

RUBBER B, SEAT STOPPER

77215-GC2-000

$5.05

SEAT BELT

77310-MGR-671

$28.82

BOLT, SEAT BELT

90128-MGR-670

$5.64

BOLT-WASHER (8X20)

93406-08020-08

$1.92

WASHER, PLAIN (12MM) (SOURCE: VINTAGE PARTS INC.)

94101-12700

$3.81
